8281SRM70.40

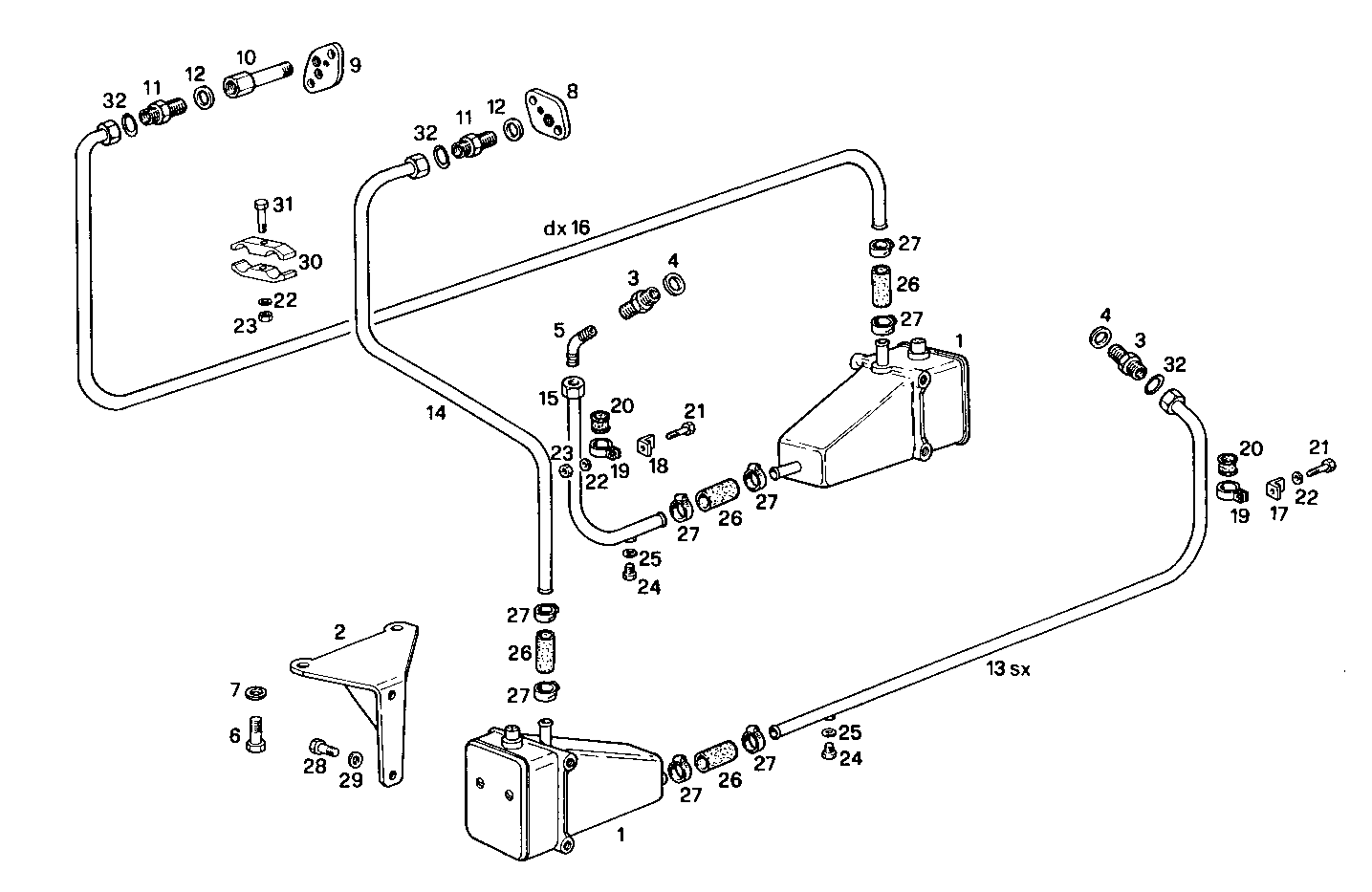

A20040038/01 WATER PREHEATER DEVICE - 220V [D 12-1992] [from12-1992]

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 8008375 HEATER 700W
2 8015023 RETAINER
3 4741602 THREADED UNION LEFT
4 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
5 16512111 PIPE SOCKET
6 11307021 HEXAGON BOLT M10X40 MM
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8014994 FLANGE
9 8014993 FLANGE
10 8009550 PIPE SOCKET
11 8011696 PIPE SOCKET M16X1,5/M22X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 8014877 WATER PIPE
14 8014878 WATER PIPE
15 8014879 WATER PIPE
16 8014880 WATER PIPE
17 8007133 RETAINER
18 8112082 RETAINER
19 4763804 FASTENING BRACKET
20 4757122 RUBBER PAD
21 16605524 HEXAGON BOLT M8X20 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 17037931 HEXAGON NUT M8X1,25
24 10300911 PLUG M8
25 4858605 WASHER Ø8X12 MM
26 8109346 RUBBER SLEEVE
27 17764593 CLIP Ø20/32 MM
28 10902121 HEXAGON BOLT M6X14 MM
29 17088474 WASHER Ø6X12 MM
30 8010505 CLAMP Ø16 MM
31 16605824 HEXAGON BOLT M8X35 MM
32 8024649 O-RING Ø12 MM
