8281SRM70.40

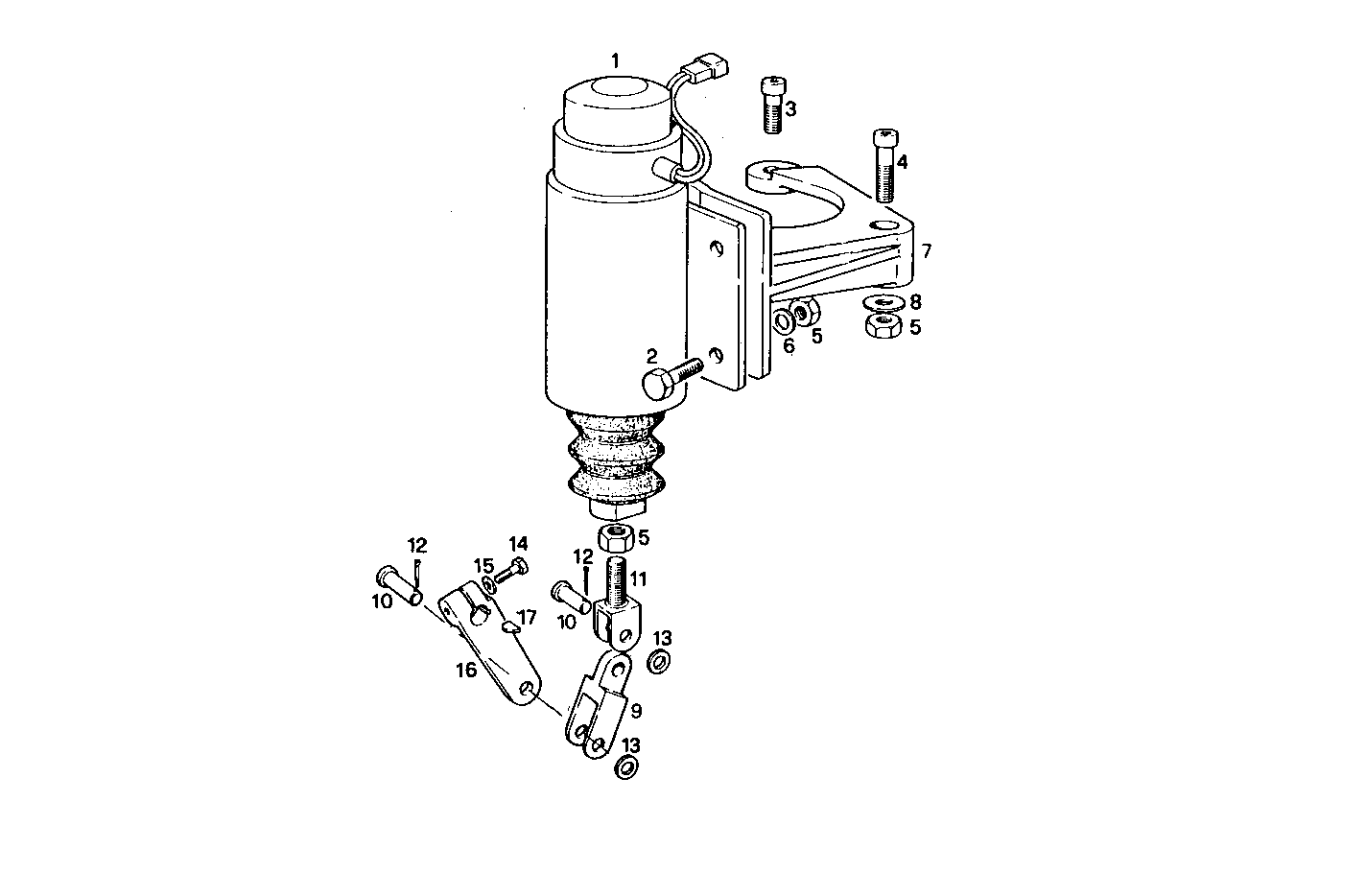

A38420014 STOP SOLENOID - ENERGIZE TO STOP - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8105421 | SOLENOID ASSY 24V |
| 2 | 10900221 | SCREW |
| 3 | 14305521 | SCREW M6X30 |
| 4 | 14305421 | CYLIND-HEAD SCREW M6X25 MM |
| 5 | 15896211 | HEXAGON NUT M6 |
| 6 | 11194779 | WASHER Ø6X18X1,4 MM |
| 7 | 8109114 | SUPPORT |
| 8 | 10581571 | WASHER |
| 9 | 8108833 | CLEVIS |
| 10 | 17718411 | PIN Ø5 MM |
| 11 | 8108834 | CLEVIS |
| 12 | 10734101 | SPLIT PIN Ø1,3 MM |
| 13 | 14497801 | WASHER Ø5X9,5 MM |
| 14 | 10977821 | HEXAGON BOLT M5X16 MM |
| 15 | 17494631 | SPRING WASHER Ø5 MM |
| 16 | 8108826 | LEVER |
| 17 | 8101048 | KEY 3X5X12,5 |
