8291SRG85.10A500

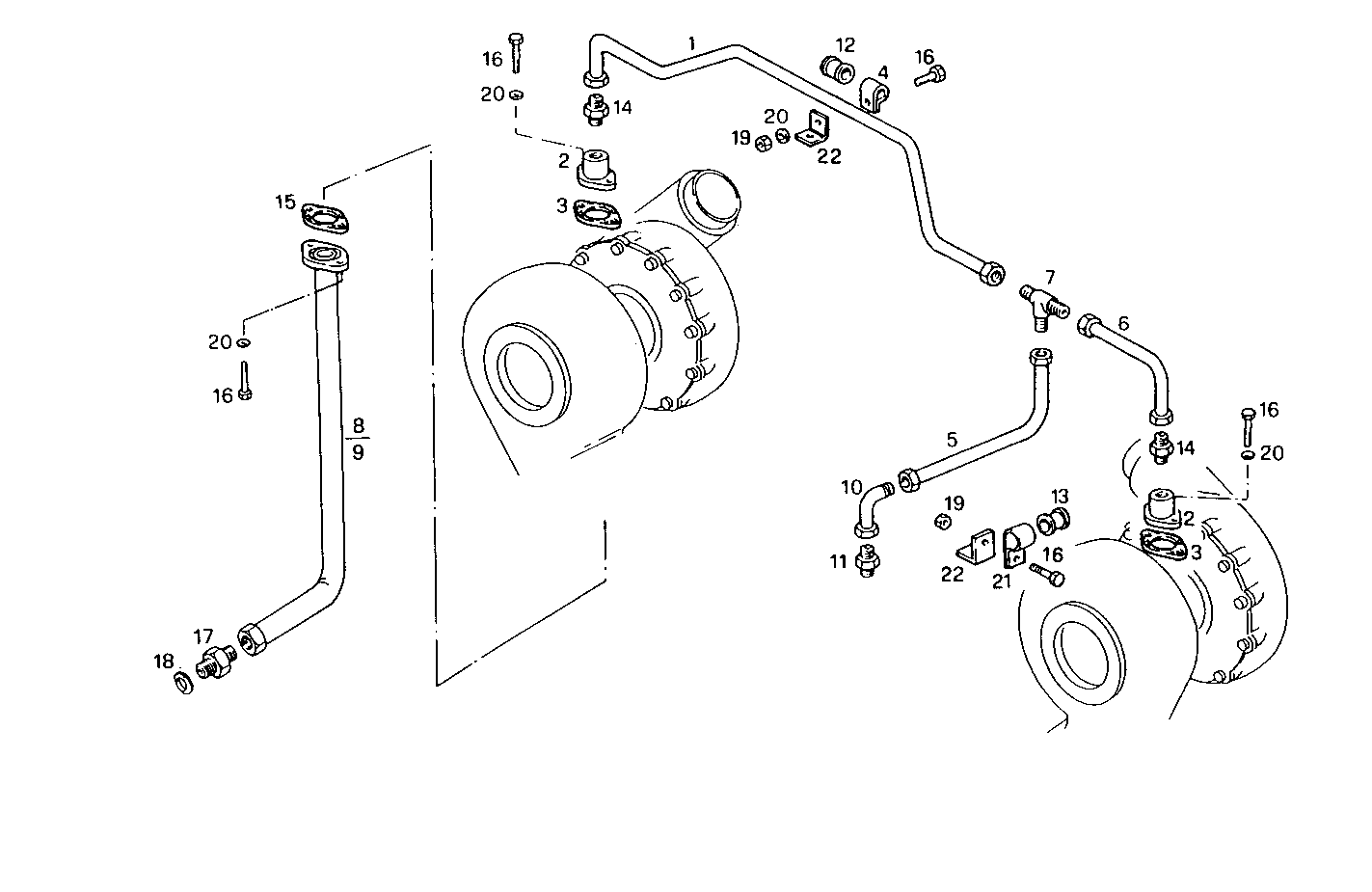

3010.151/04 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8021976 | OIL LINE |
| 2 | 4764795 | THREADED UNION |
| 3 | 98415922 | FLAT ENGINE GASKET |
| 4 | 4755963 | FASTENING BRACKET |
| 5 | 8010125 | OIL LINE |
| 6 | 8021975 | OIL LINE |
| 7 | 4741608 | T-COUPLING |
| 8 | 8021977 | OIL LINE LEFT |
| 9 | 8023137 | OIL LINE RIGHT |
| 10 | 16512111 | PIPE SOCKET |
| 11 | 8010546 | PIPE SOCKET |
| 12 | 4755964 | RUBBER PAD |
| 13 | 4757122 | RUBBER PAD |
| 14 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 15 | 98412509 | FLAT ENGINE GASKET |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
| 17 | 8023053 | PIPE SOCKET |
| 18 | 16528060 | WASHER Ø33X39 MM SP=2 MM |
| 19 | 17037931 | HEXAGON NUT M8X1,25 |
| 20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 21 | 4810595 | FASTENING BRACKET |
| 22 | 8100819 | RETAINER |
