8291SRG85.10A510

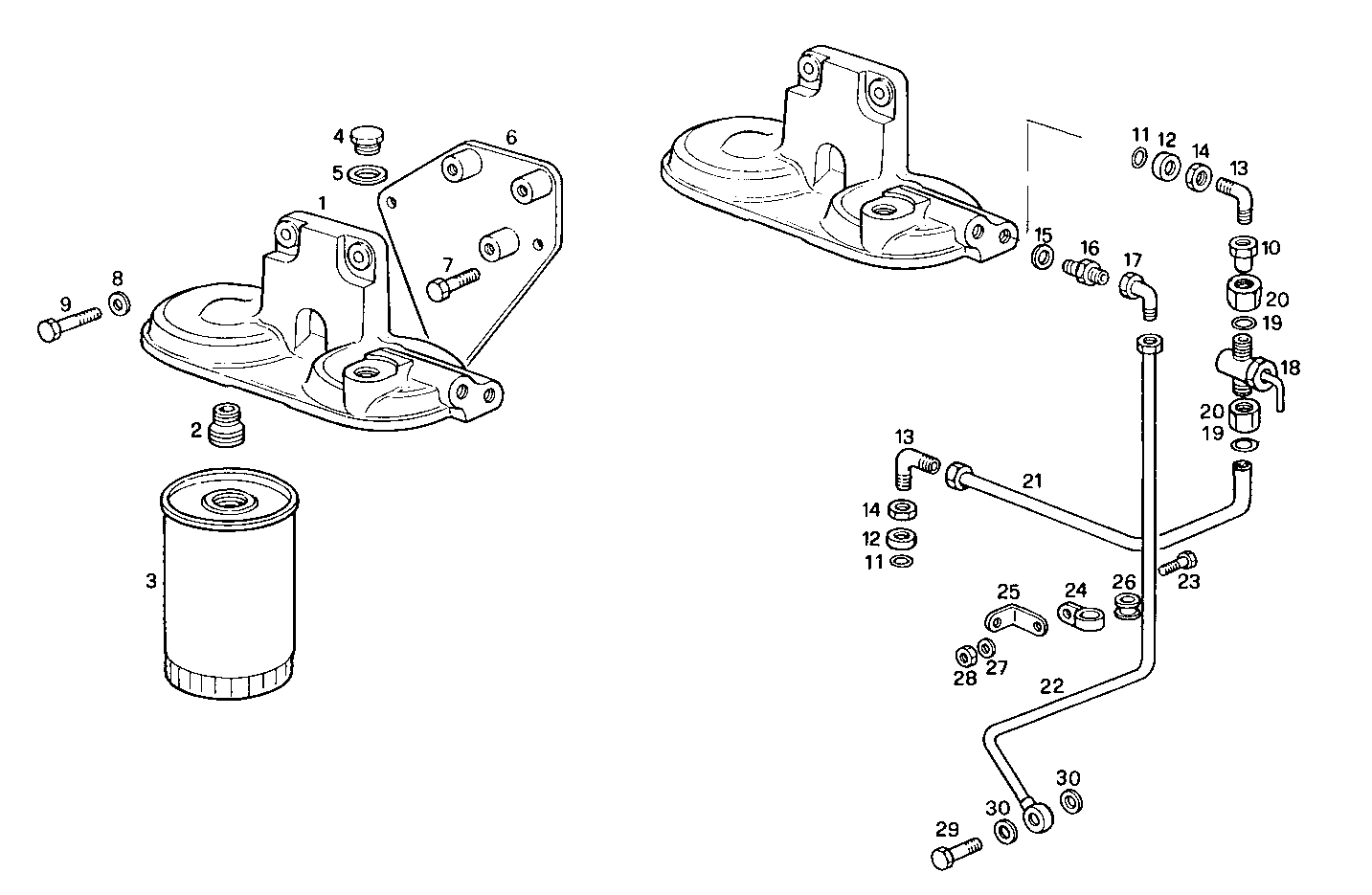

3280.013 WATER FILTER

Iveco/FPT WATER FILTER

Item Part number Description
1 4874484 SUPPORT
2 4807730 BREATHER CONN.
3 1901776 WATER FILTER CARTRIDGE
4 10304911 THREADED PLUG M20X1,5
5 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
6 8014341 RETAINER
7 16607924 HEXAGON BOLT M10X1,5X40 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16605824 HEXAGON BOLT M8X35 MM
10 8017174 WATER PIPE
11 17281581 O-RING Ø12,37X2,62 MM
12 8006339 CAP
13 8006222 PIPE SOCKET [from 05-92]
14 16508711 NUT M14X1,5 [from 05-92]
15 4858608 SEAL GASKET dia.14x19,5x1,5
16 16500214 THREADED UNION M14X1,5/M16X1,5
17 16504011 PIPE SOCKET
18 4734025 RETAINER COCK [up to 12-97]
19 10165540 WASHER Ø10 MM
20 10166217 NUT
21 8014459 WATER PIPE
22 8014457 WATER PIPE
23 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
24 8016484 CLIP
25 8112179 RETAINER
26 8011236 RUBBER PAD
27 17090174 SPRING WASHER Ø10X20 MM
28 17038121 HEXAGON NUT M10
29 4864084 BANJO BOLT M16X1,5
30 98474309 WASHER Ø16X24 MM SP=1,9 MM
