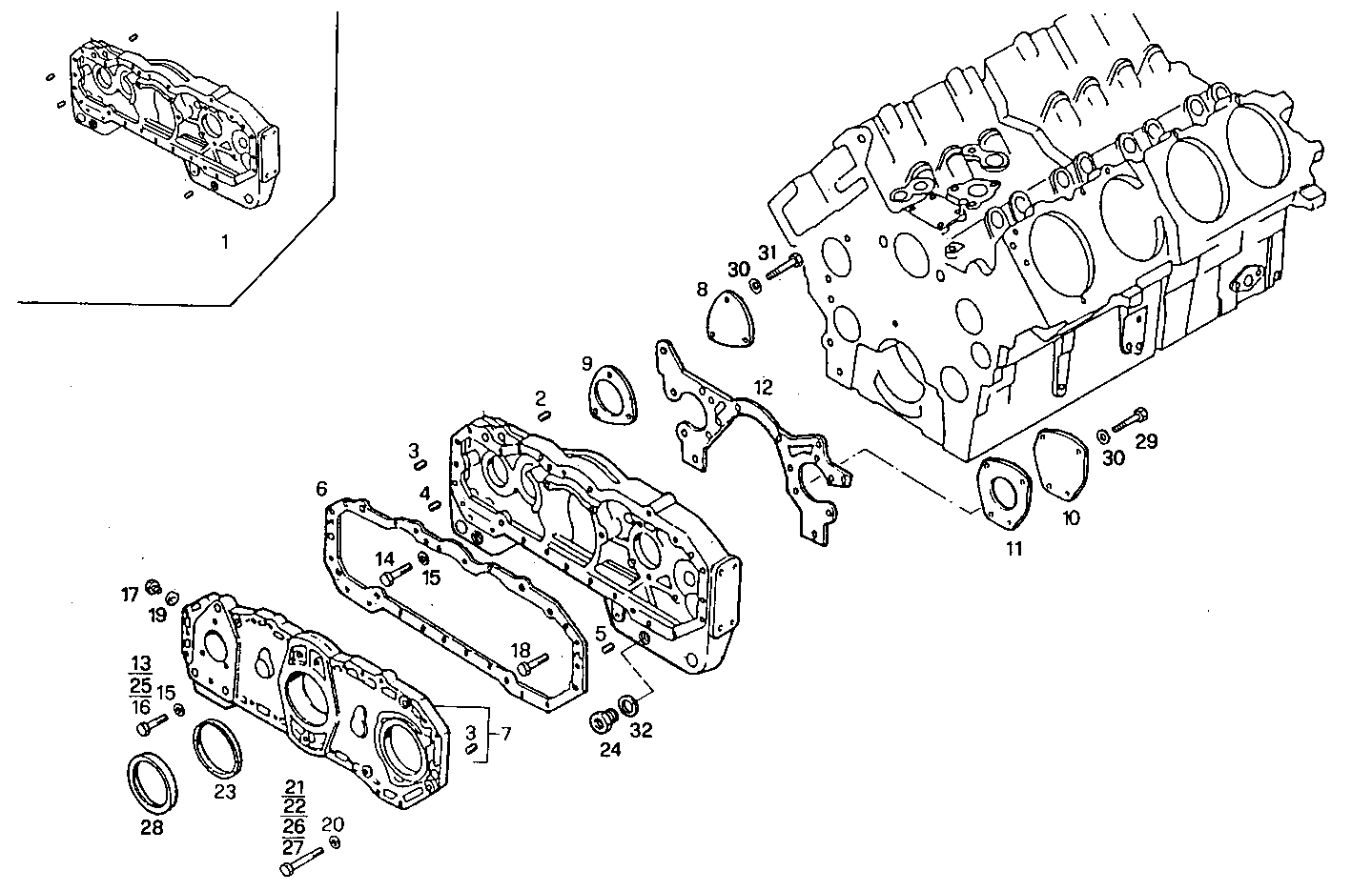

| Item |
Part number |
Description |
|
1 |
8012832 |
TIMINGGEAR HOUSIN ASSY |
|
2 |
17873271 |
THREADED INSERT M8 |
|
3 |
17873371 |
THREADED INSERT M10X1,5 |
|
4 |
17873971 |
THREADED INSERT M16 |
|
5 |
17873471 |
THREADED INSERT |
|
6 |
8012835 |
GASKET |
|
7 |
8012833 |
COVER ASSY |
|
8 |
8009678 |
COVER |
|
9 |
8009679 |
GASKET |
|
10 |
4695673 |
COVER |
|
11 |
4863515 |
FLAT ENGINE GASKET |
|
12 |
8012838 |
GASKET |
|
13 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
14 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
15 |
17094904 |
WASHER Ø8X16X1,6 MM |
|
16 |
16606924 |
SCREW M8X110 |
|
17 |
16992311 |
LOCK PLUG M14X1,5 |
|
18 |
14307521 |
CYLIND-HEAD SCREW M10X1,25X30 MM |
|
19 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
20 |
17095104 |
WASHER Ø10X21X2 MM |
|
21 |
15971821 |
SCREW M10X1,25X100 |
|
22 |
15972221 |
SCREW M10X1,25X120 |
|
23 |
4882668 |
OIL RETAINER |
|
24 |
8012859 |
PIPE SOCKET |
|
25 |
16605924 |
SCREW M8X40 MM |
|
26 |
15972021 |
HEXAGON BOLT M10X1,25X110 MM |
|
27 |
16608124 |
HEXAGON BOLT M10X1,5X50 MM |
|
28 |
40101481 |
OIL RETAINER |
|
29 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
30 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
31 |
16607624 |
SCREW M10X25 |
|
32 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
