8291SRi15.00

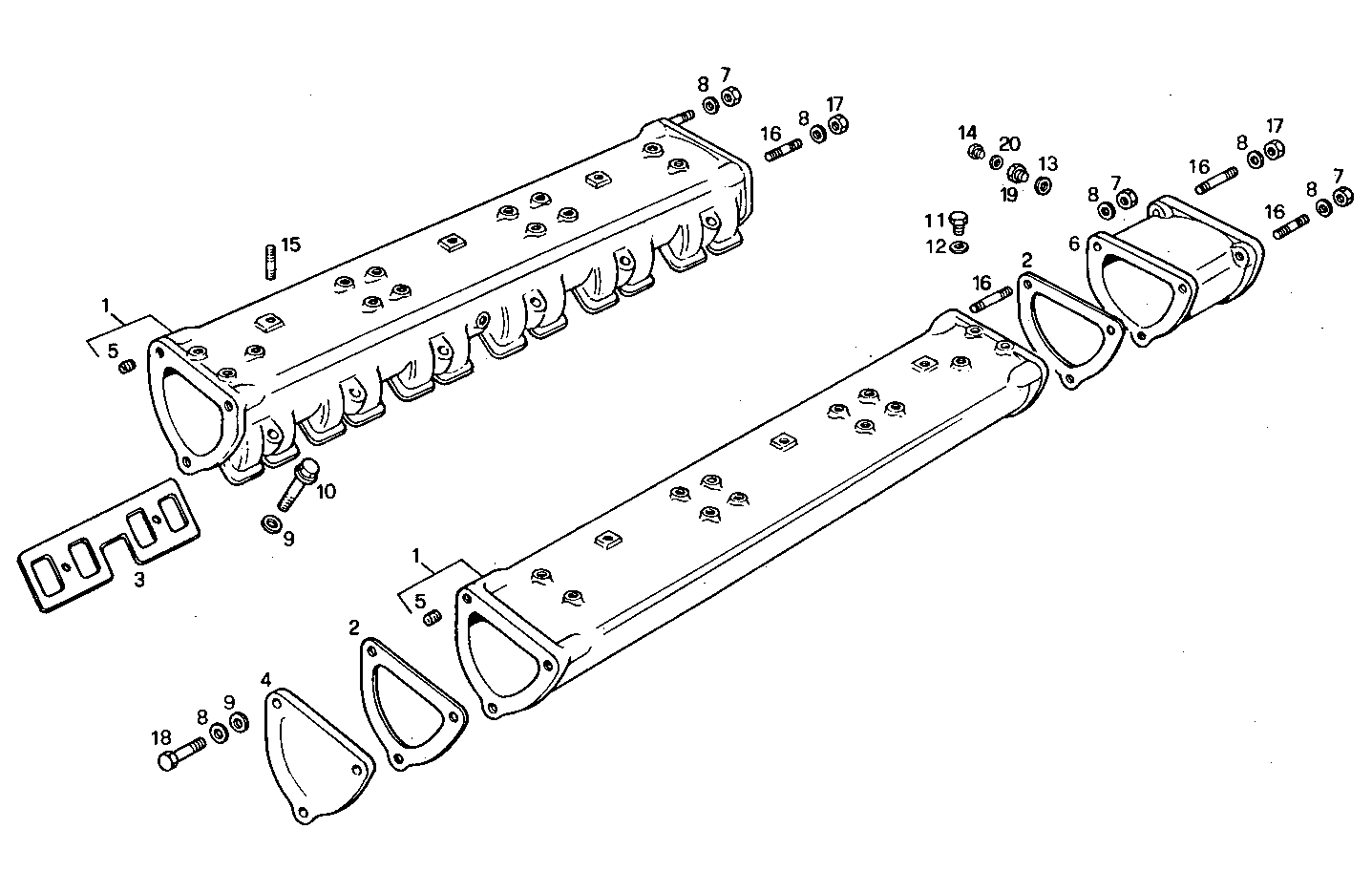

0710.141 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 8008388 INTAKE ELBOW ASSY
2 4786886 GASKET
3 4790542 INTAKE ELBOW GASK.
4 4718509 COVER
5 17873371 THREADED INSERT M10X1,5
6 8104267 SPACING BAR
7 17038121 HEXAGON NUT M10
8 17090174 SPRING WASHER Ø10X20 MM
9 16665614 WASHER Ø10,5 MM
10 4720250 SCREW
11 16992211 THREADED PLUG M12X1,5
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 4858610 WASHER Ø18X24 MM SP=1,5 MM
14 16992511 THREADED PLUG M18X1,5
15 16727724 STUD M6X20 MM
16 16748624 STUD M10X30 MM
17 17044821 NUT M10
18 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
19 4881606 PIPE SOCKET
20 4858606 GASKET Ø10X14X1 MM
