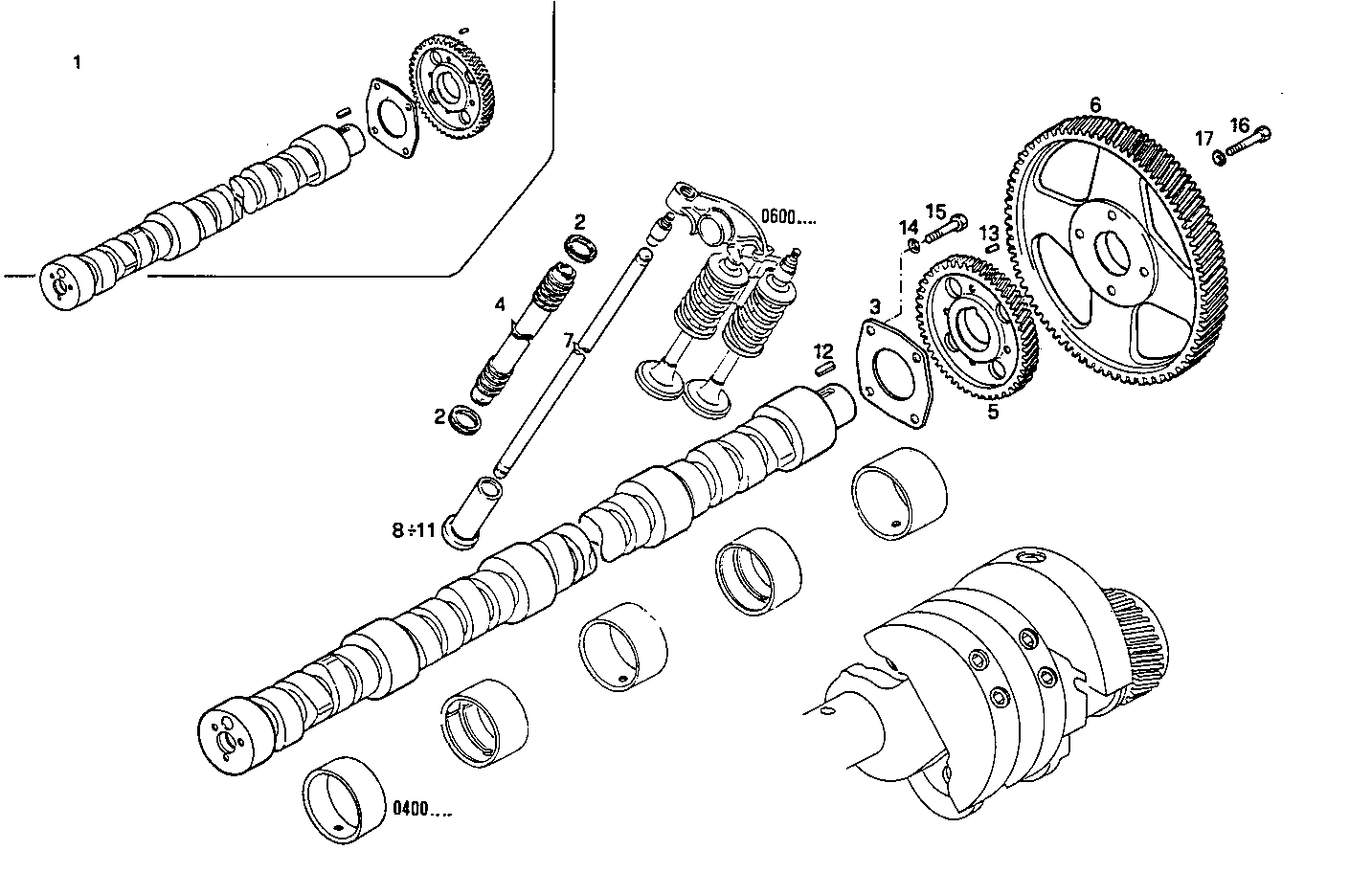

1250.047 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 8017554 CAMSHAFT ASSY
2 4672177 WASHER
3 4684267 PLATE
4 4672175 LINER
5 4817392 GEAR
6 4783113 GEAR
7 98473330 PUSHROD SAPES
8 8025747 TAPPET +0,0 MM
9 8025963 TAPPET +0,1 MM
10 8025964 TAPPET +0,2 MM
11 8025965 TAPPET +0,3 MM
12 17843420 KEY
13 17275310 DOWEL PIN
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605734 HEXAGON BOLT M8X30 MM
16 15540521 SCREW M12X1,25X35
17 17091074 WASHER Ø12X24X2,8 MM
