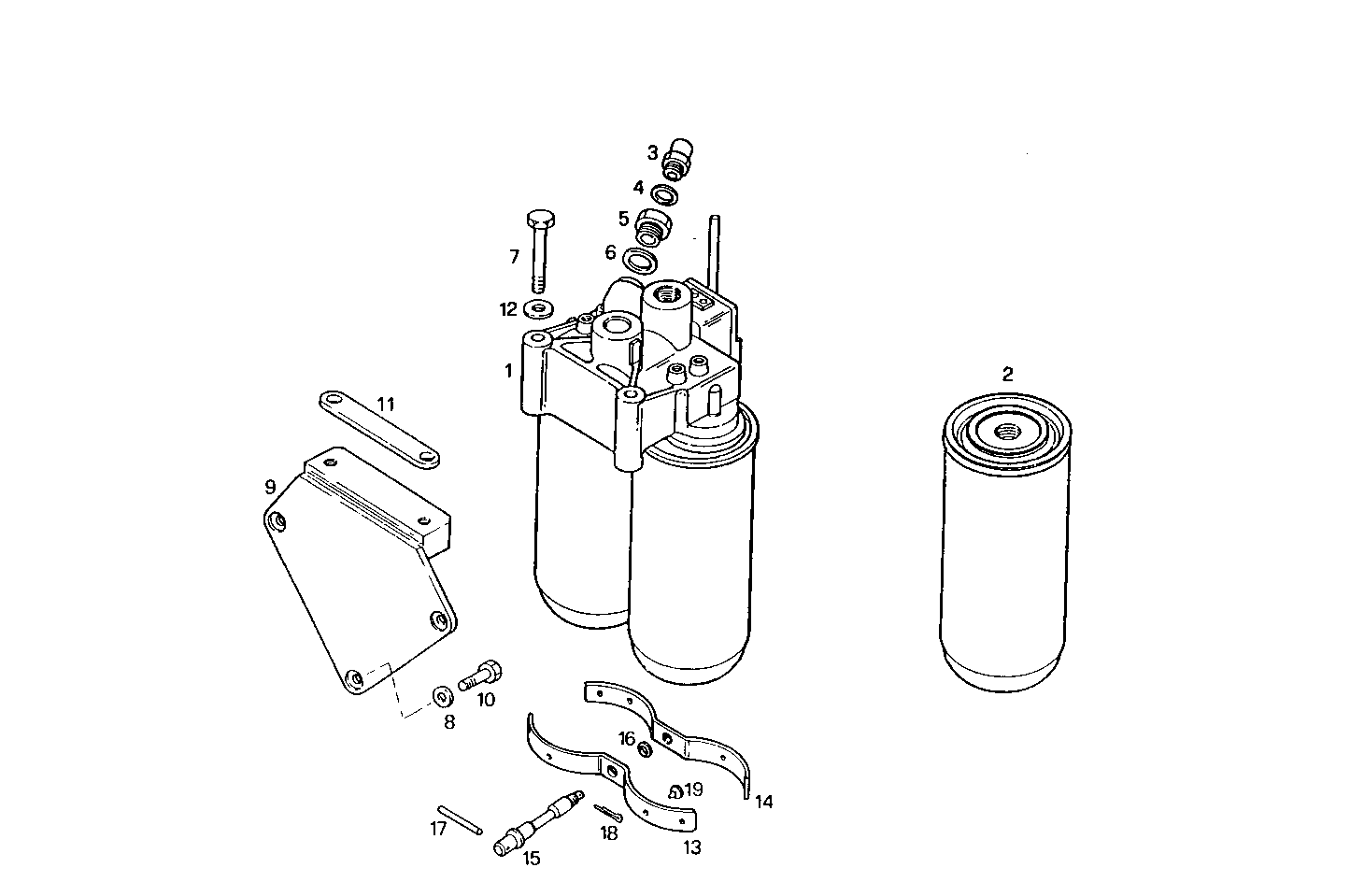

Item |
Part number |
Description |
1 |
8022363 |
FUEL FILTER ASSY |
2 |
8106473 |
FUEL FILTER CARTRIDGE |
3 |
8123686 |
VALVE |
4 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
5 |
4882217 |
PIPE SOCKET M18X1,5 - M14X1,5 |
6 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
7 |
16610824 |
SCREW M12X80 |
8 |
17090174 |
SPRING WASHER Ø10X20 MM |
9 |
8017630 |
SUPPORT |
10 |
16607624 |
SCREW M10X25 |
11 |
8017759 |
PLATE |
12 |
17091074 |
WASHER Ø12X24X2,8 MM |
13 |
8019107 |
CLAMP |
14 |
8021139 |
CLAMP |
15 |
8021141 |
SCREW |
16 |
17094904 |
WASHER Ø8X16X1,6 MM |
17 |
17238110 |
PIN |
18 |
16854001 |
SPLIT PIN |
19 |
1366290 |
RUBBER LUG |
