Catalogue Menu
8291SRi15.00

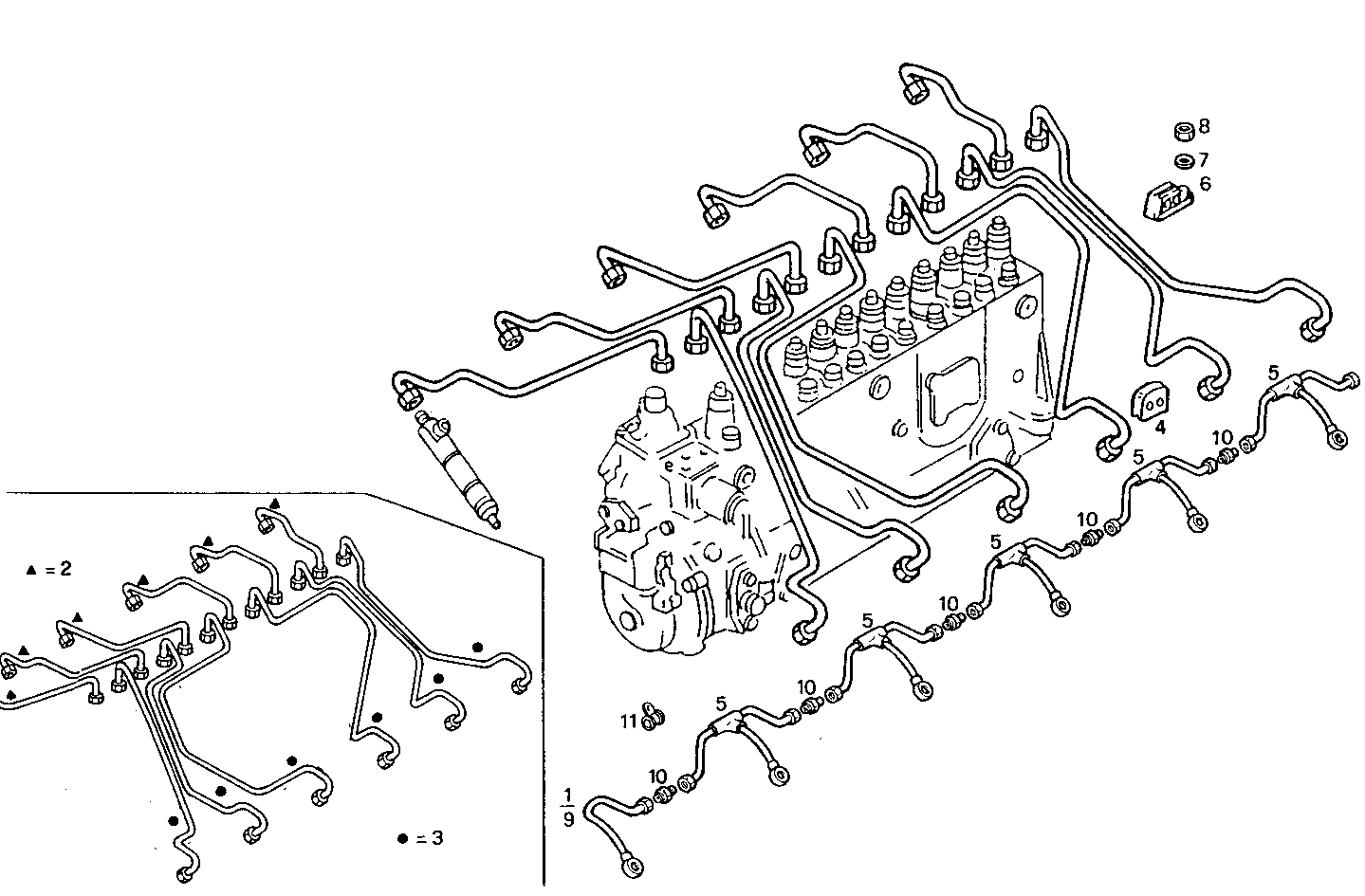

2020.081 INJECTION PIPES [D 05-1995] [from05-1995]
| Item | Part number | Description |
|---|---|---|
| 1 | 8017018 | FUEL LINE FRONT - LEFT |
| 2 | 8010377 | INJECTION LINE SET RIGHT |
| 3 | 8010742 | INJECTION LINE SET LEFT |
| 4 | 4696015 | RUBBER PAD |
| 5 | 8017019 | FUEL LINE MIDDLE |
| 6 | 8011251 | DOWEL |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8017020 | FUEL LINE FRONT - RIGHT |
| 10 | 16501511 | SCREW CONNECTOR M12X1,5 |
| 11 | 17316190 | PIPE CLIP Ø6 MM |
