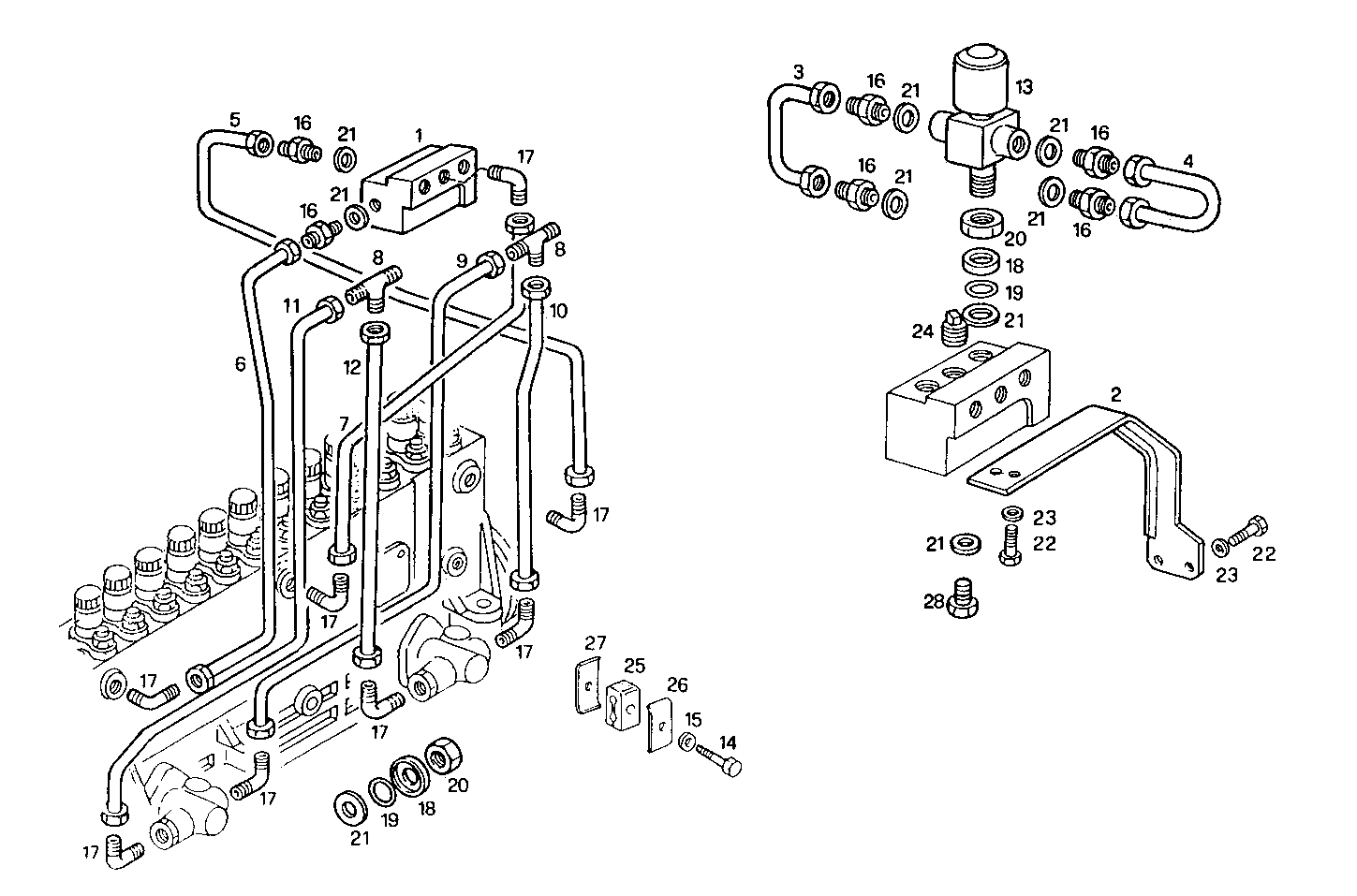

| Item |
Part number |
Description |
|
1 |
8017501 |
DISTRIBUTOR |
|
2 |
8018678 |
RETAINER |
|
3 |
8017503 |
FUEL LINE |
|
4 |
8017504 |
FUEL LINE |
|
5 |
8018693 |
FUEL LINE |
|
6 |
8018694 |
FUEL LINE |
|
7 |
8018695 |
FUEL LINE |
|
8 |
8011303 |
PIPE SOCKET |
|
9 |
8018184 |
FUEL LINE |
|
10 |
8018837 |
FUEL LINE |
|
11 |
8018870 |
FUEL LINE |
|
12 |
8018871 |
FUEL LINE |
|
13 |
8017500 |
ELECTROVALVE [from 04-94] |
|
14 |
16603824 |
SCREW M6X25 |
|
15 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
16 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
17 |
8025927 |
ELBOW COUPLING |
|
18 |
8006339 |
CAP |
|
19 |
17281581 |
O-RING Ø12,37X2,62 MM |
|
20 |
16508711 |
NUT M14X1,5 [from 05-92] |
|
21 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
22 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
23 |
17088474 |
WASHER Ø6X12 MM |
|
24 |
16996011 |
PLUG |
|
25 |
4871771 |
RUBBER LUG |
|
26 |
4644288 |
CLIP |
|
27 |
4644289 |
CLIP |
|
28 |
16992311 |
LOCK PLUG M14X1,5 |
