8291SRi15.00

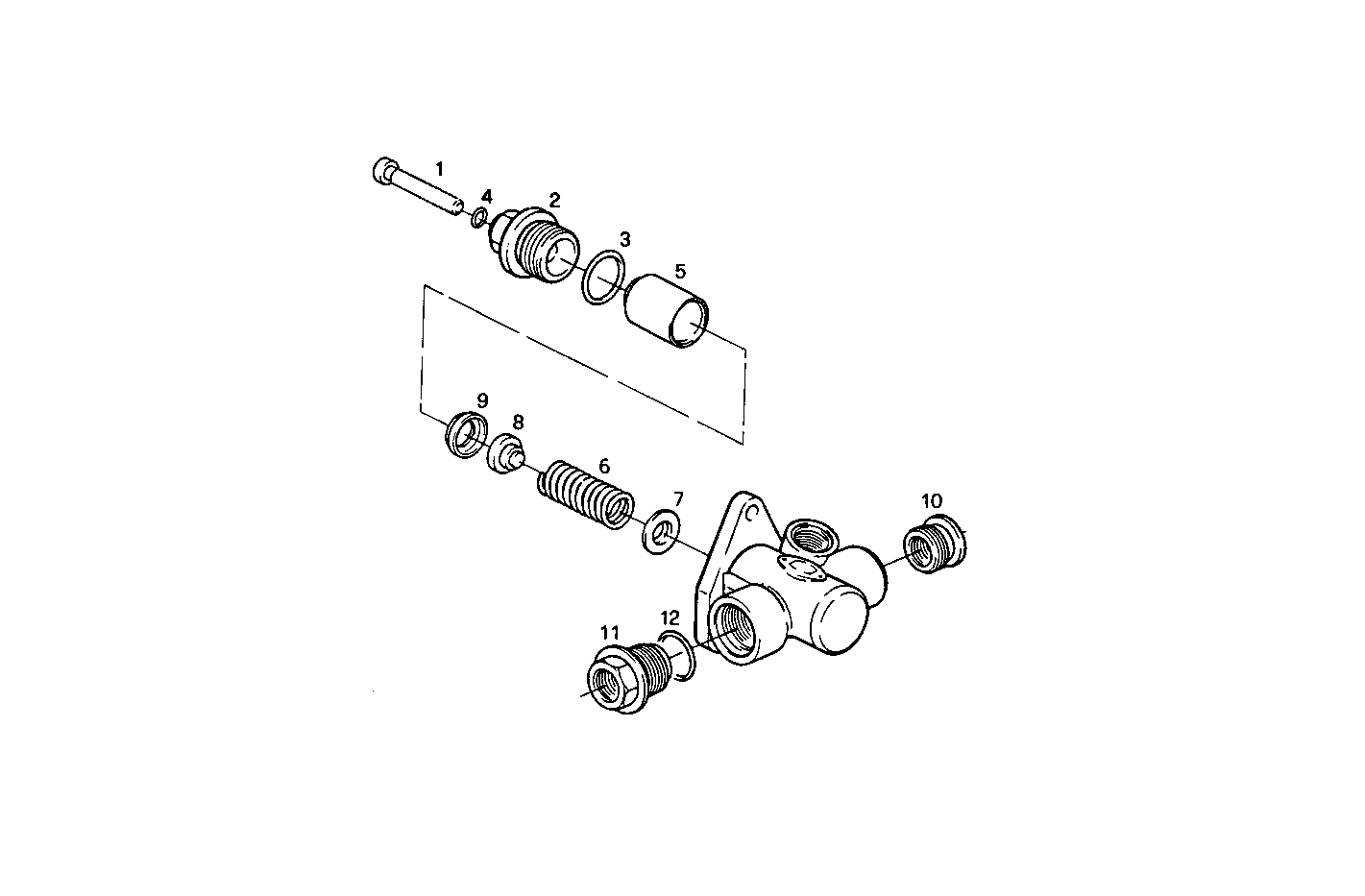

2040.016 FUEL PUMP (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 93156913 | VALVE |
2 | 93156914 | VALVE HOUSING |
3 | 93156915 | O-RING |
4 | 79070369 | O-RING |
5 | 93156916 | PUMP PLUNGER |
6 | 93156917 | SPRING |
7 | 93156918 | CAP SP=0,5 MM |
8 | 1290608 | SHUT-OFF VALVE |
9 | 93156919 | CAP |
10 | 93156920 | PIPE SOCKET |
11 | 93156921 | THREADED UNION |
12 | 93156922 | O-RING |
