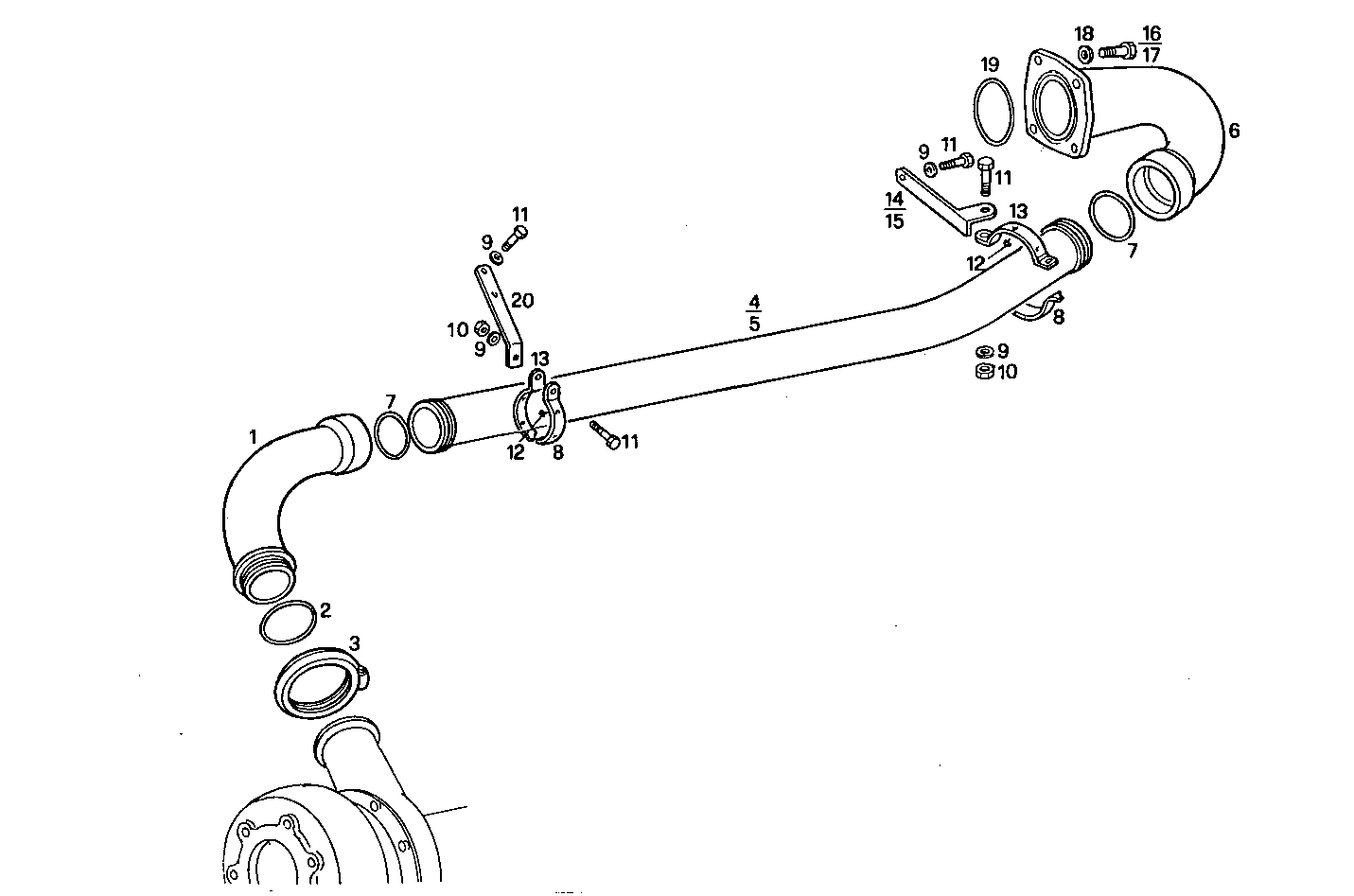

| Item |
Part number |
Description |
|
1 |
8013929 |
AIR PIPE/DUCT |
|
2 |
17284781 |
O-RING 2,62x63,17 |
|
3 |
4800661 |
CLIP Ø 75 mm. |
|
4 |
8013953 |
AIR PIPE/DUCT |
|
5 |
8013952 |
AIR PIPE/DUCT |
|
6 |
8013957 |
AIR PIPE/DUCT |
|
7 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
8 |
8013656 |
CLAMP |
|
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
10 |
17038121 |
HEXAGON NUT M10 |
|
11 |
16607624 |
SCREW M10X25 |
|
12 |
1366290 |
RUBBER LUG |
|
13 |
8013655 |
CLAMP |
|
14 |
8017178 |
RETAINER |
|
15 |
8017179 |
RETAINER |
|
16 |
16605724 |
SCREW M8X1,25X30 |
|
17 |
16005824 |
SCREW |
|
18 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
19 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
20 |
8013667 |
RETAINER |
