8291SRi15.00

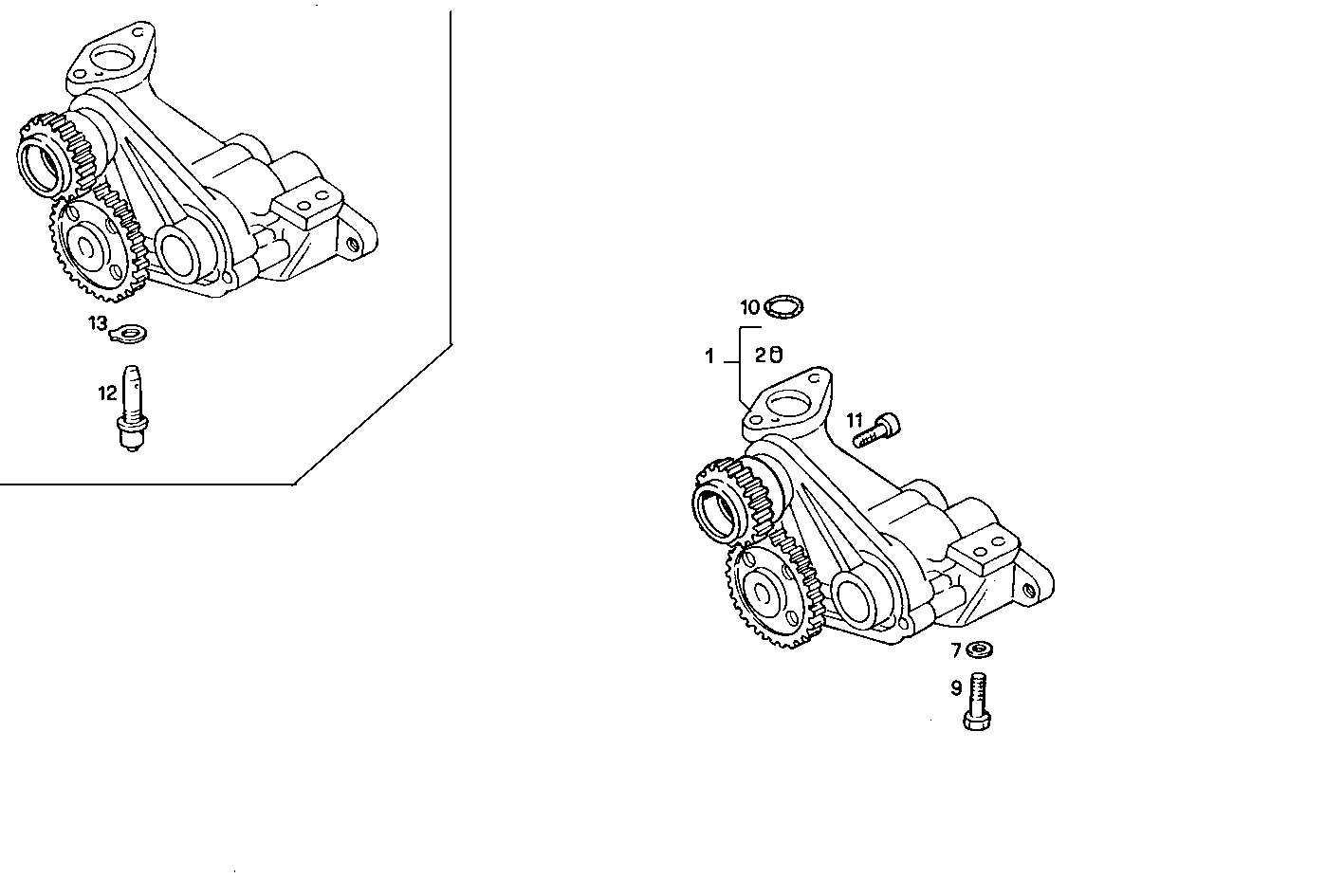

3000.019 OIL PUMP
Item | Part number | Description |
---|---|---|
1 | 8027389 | LUBE OIL PUMP ASSY |
2 | 10839510 | DOWEL PIN |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
9 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
10 | 17283081 | O-RING Ø36,17X2,62 MM |
11 | 16690824 | CYLIND-HEAD SCREW M8X35 MM |
12 | 500310084 | VALVE |
13 | 4861028 | CIRCLIP |
