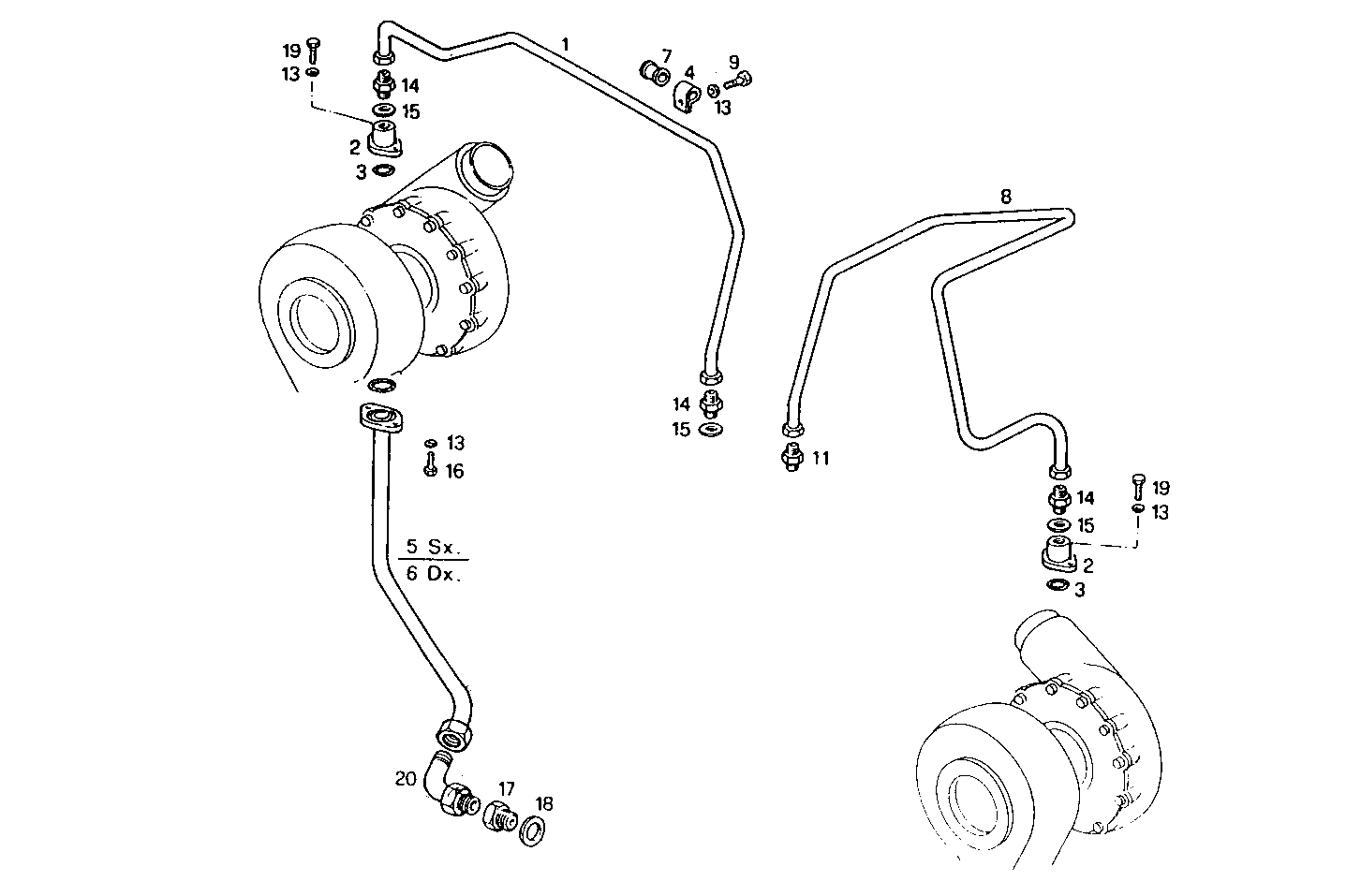

| Item |
Part number |
Description |
|
1 |
8016421 |
OIL LINE |
|
2 |
8011269 |
FLANGE |
|
3 |
17288281 |
O-RING Ø18,64X3,53 MM |
|
4 |
8016484 |
CLIP |
|
5 |
8016422 |
OIL LINE |
|
6 |
8016423 |
OIL LINE |
|
7 |
4755964 |
RUBBER PAD |
|
8 |
8016420 |
OIL LINE |
|
9 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
11 |
8016569 |
PIPE SOCKET |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
16607624 |
SCREW M10X25 |
|
17 |
16527914 |
PIPE SOCKET |
|
18 |
16528060 |
WASHER Ø33X39 MM SP=2 MM |
|
19 |
16692124 |
CYLIND-HEAD SCREW M10X25 MM (8.8) |
|
20 |
16581714 |
PIPE SOCKET |
