8291SRi15.00

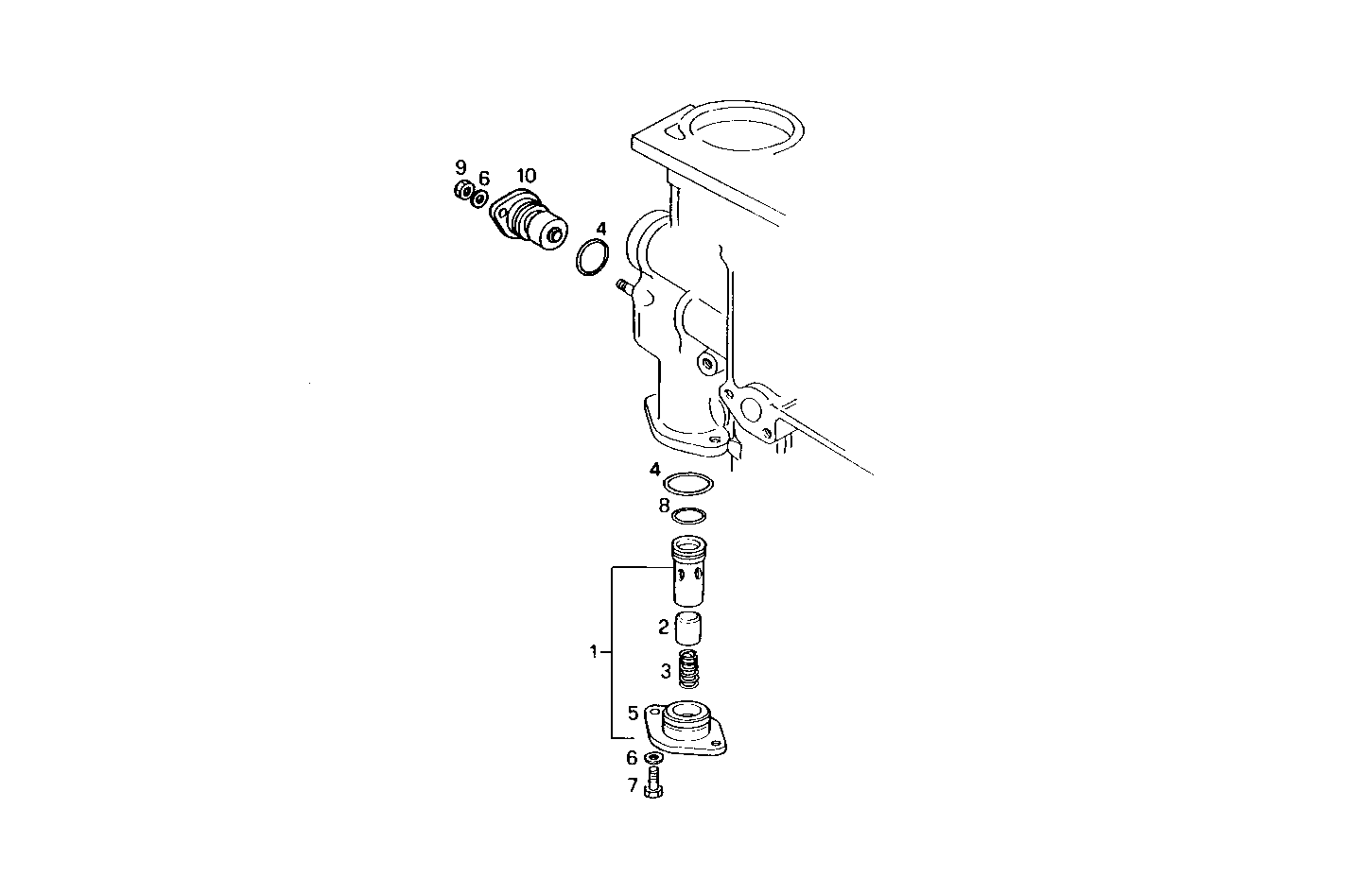

3030.019 OIL PRESSURE VALVE

Iveco/FPT OIL PRESSURE VALVE

Item Part number Description
1 4863143 VALVE ASSY
2 4861344 VALVE
3 4861261 SPRING
4 17283681 O-RING Ø45,6 MM SP=2,62 MM
5 4785405 COVER
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 98465110 O-RING Ø31,42 MM SP=2,62 MM
9 17037921 HEXAGON NUT M8X1,25
10 4783053 THERMOSTAT
