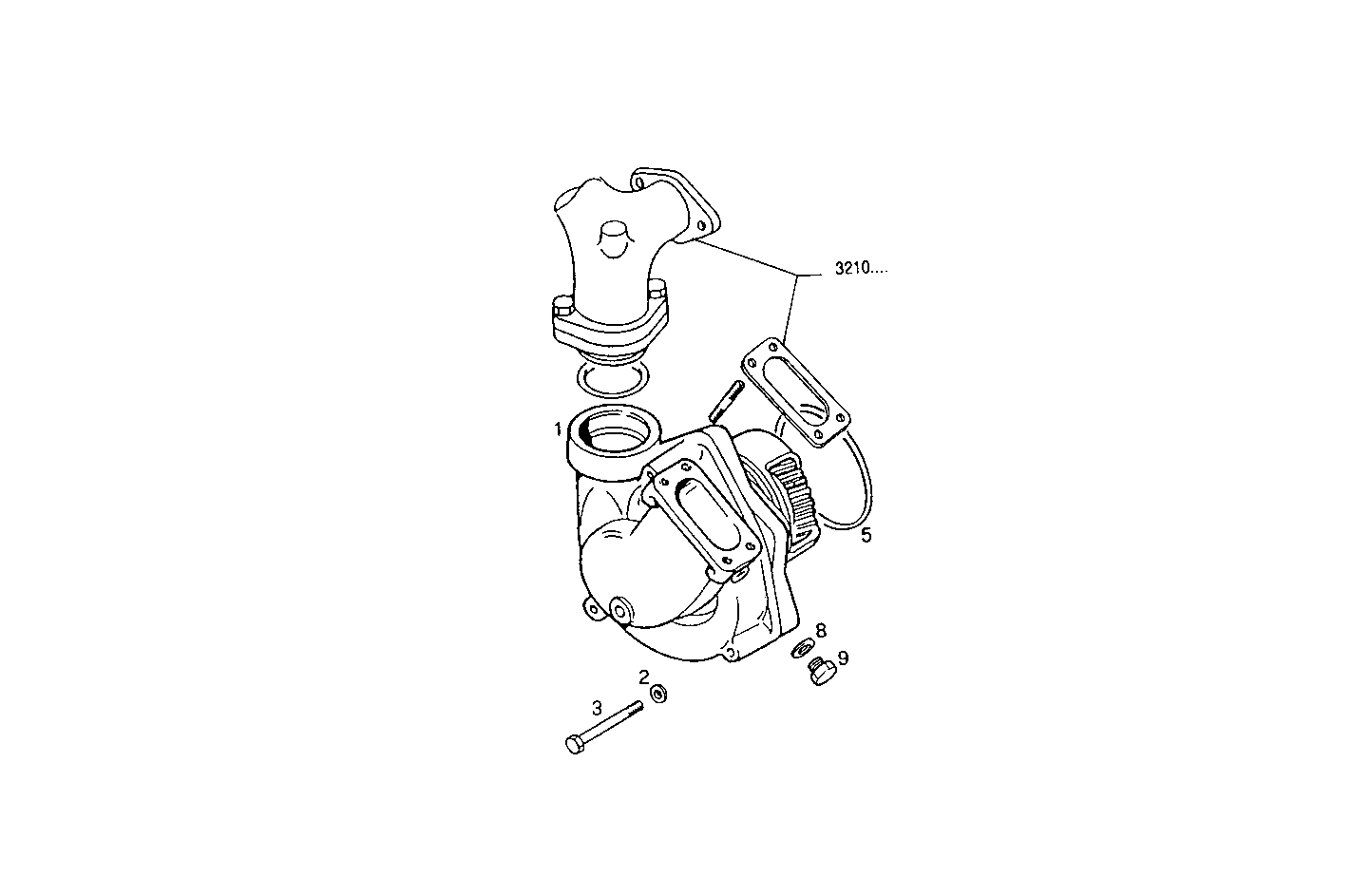

3200.062/01 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8014034 | WATER PUMP ASSY |
| 2 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 3 | 16609324 | SCREW M10X150 |
| 5 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 11903211 | LOCK PLUG M12X1,25 |
