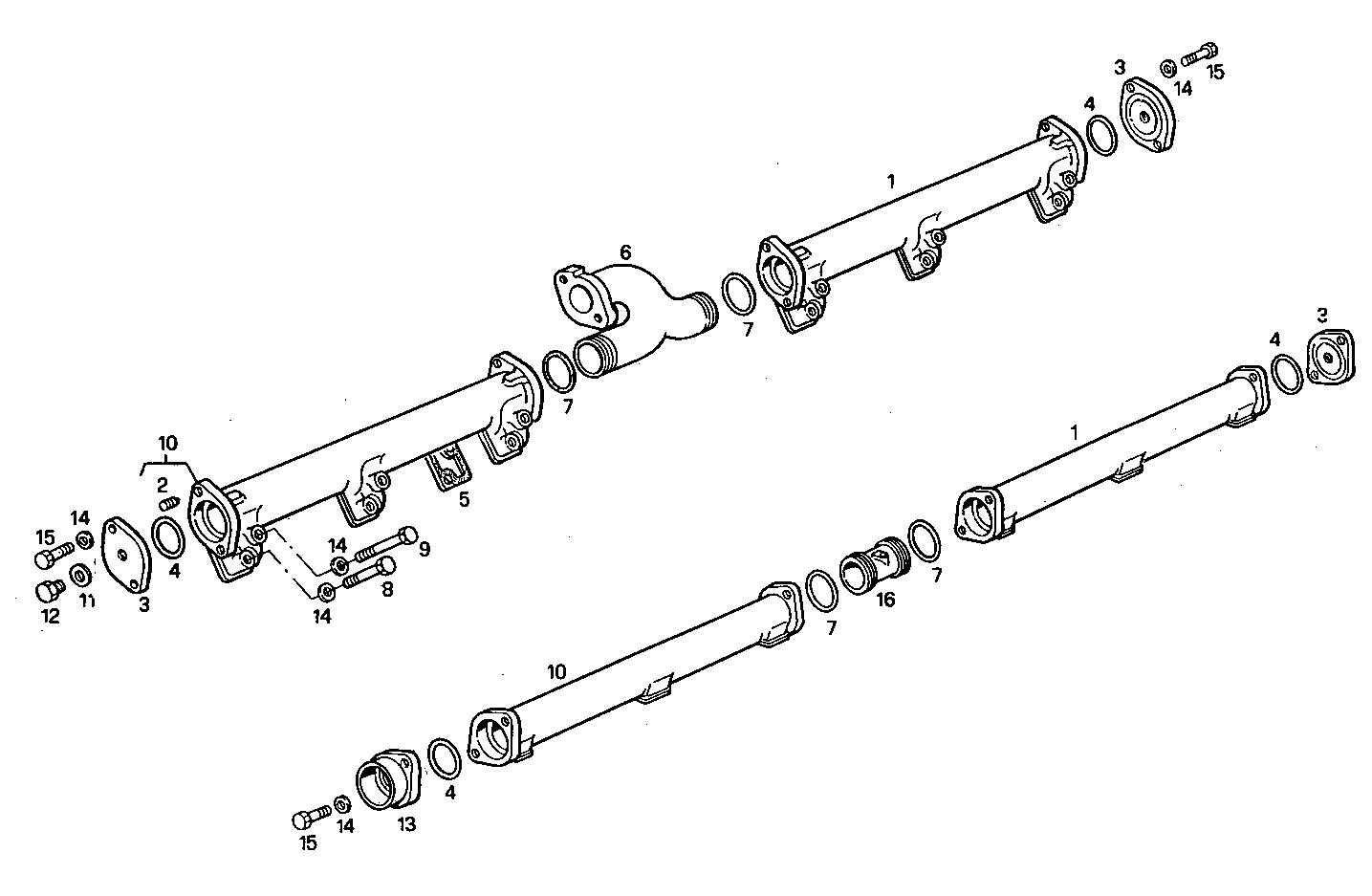

| Item |
Part number |
Description |
|
1 |
8008152 |
WATER PIPE ASSY |
|
2 |
17873271 |
THREADED INSERT M8 |
|
3 |
8016231 |
COVER |
|
4 |
17284981 |
O-RING Ø66,34 MM SP=2,62 MM |
|
5 |
98418857 |
FLAT ENGINE GASKET |
|
6 |
8013997 |
CONNECTION |
|
7 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
8 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
9 |
15214224 |
SCREW M8x1,25x85 |
|
10 |
8011273 |
WATER MANIFOLD |
|
11 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
12 |
16992240 |
THREADED PLUG M12X1,5 |
|
13 |
8014082 |
FLANGE |
|
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
8007525 |
CONNECTION |
