8291SRi15.00

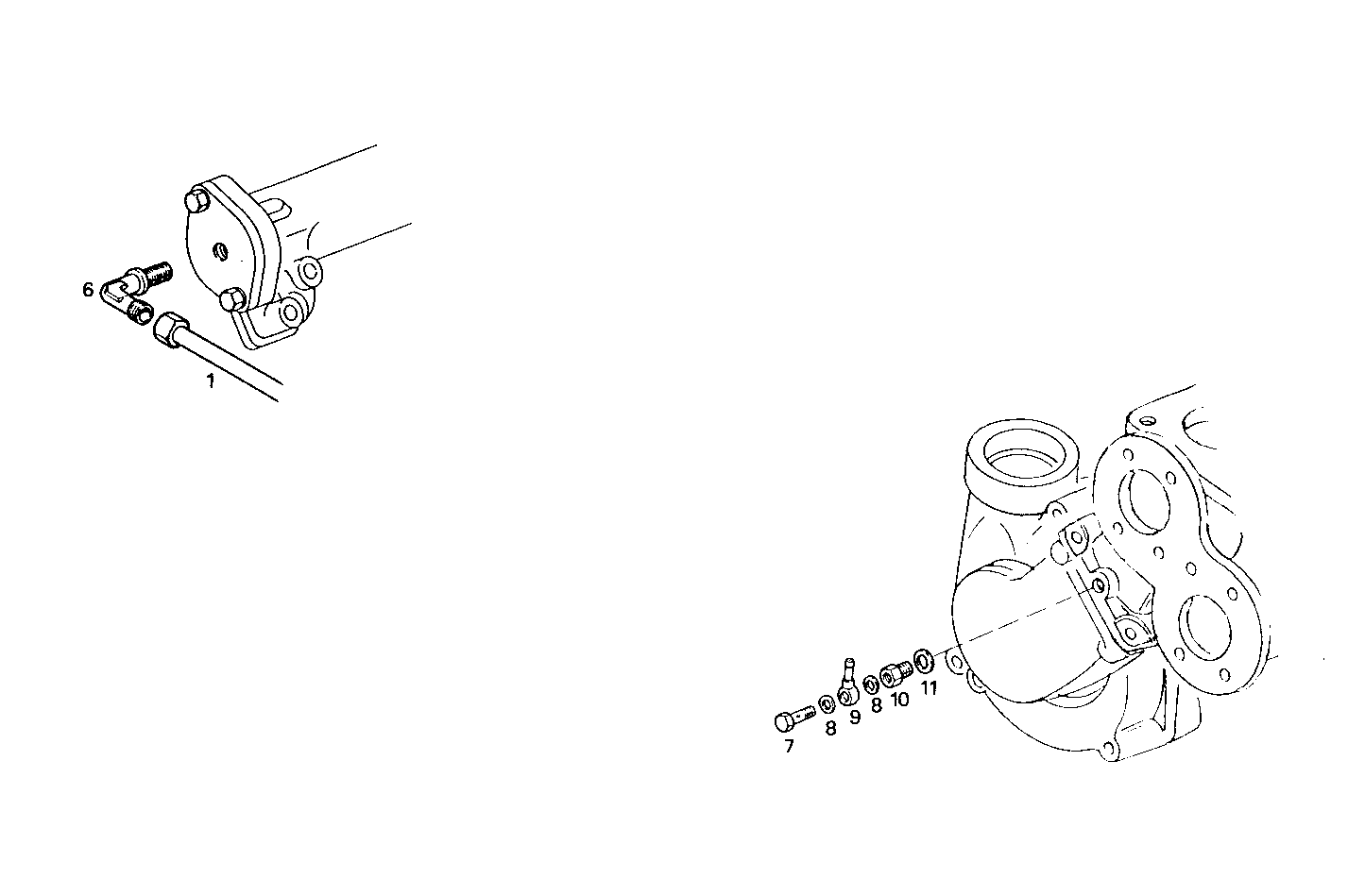

3210.073/04 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017823 | WATER PIPE |
| 6 | 8112247 | PIPE SOCKET |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 98405514 | PIPE SOCKET |
| 10 | 8018282 | PIPE SOCKET |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
