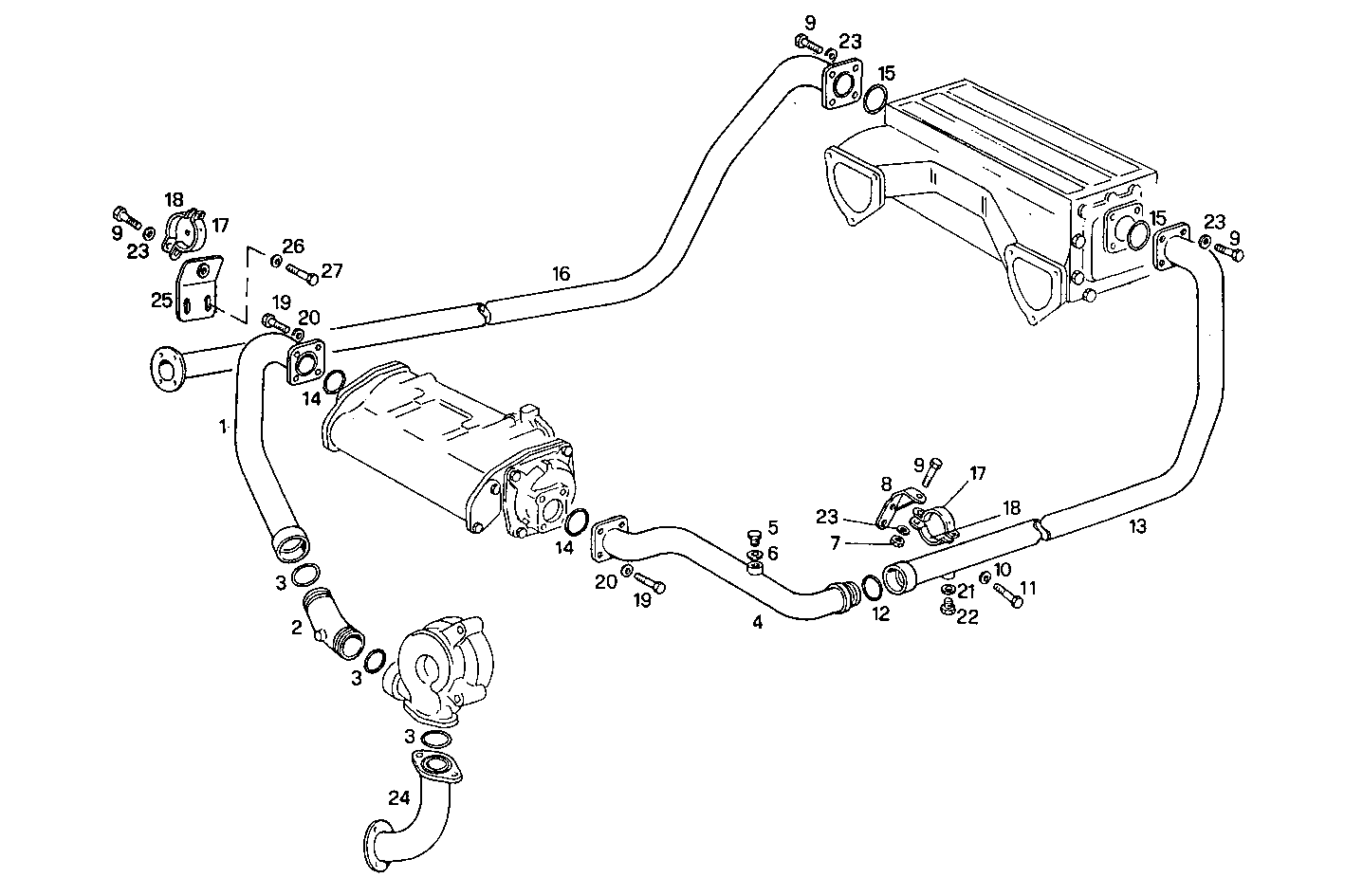

Item |
Part number |
Description |
1 |
8012910 |
SEA WATER PIPE |
2 |
8012824 |
WATER PIPE |
3 |
17284381 |
O-RING Ø56,8 MM SP=2,62 MM |
4 |
8016462 |
WATER PIPE |
5 |
16992440 |
THREADED PLUG M16X1,5 |
6 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
7 |
17038121 |
HEXAGON NUT M10 |
8 |
8016464 |
RETAINER |
9 |
16607624 |
SCREW M10X25 |
10 |
17091674 |
WASHER Ø14X27X3,0 MM |
11 |
15976821 |
HEXAGON BOLT M14X1,5X20 MM |
12 |
17290181 |
O-RING Ø59,92 MM SP=3,53 MM |
13 |
8016463 |
WATER PIPE |
14 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
15 |
17290281 |
O-RING Ø63,09 MM SP=3,53 MM |
16 |
8016363 |
WATER PIPE |
17 |
8017810 |
CLAMP |
18 |
8017811 |
CLAMP |
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
21 |
11271460 |
GASKET Ø21X26X1,5 MM |
22 |
4584394 |
PLUG 1/2'' |
23 |
17090174 |
SPRING WASHER Ø10X20 MM |
24 |
8016394 |
WATER PIPE |
25 |
8018803 |
RETAINER |
26 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
27 |
15540324 |
SCREW M12X1,25X25 |
