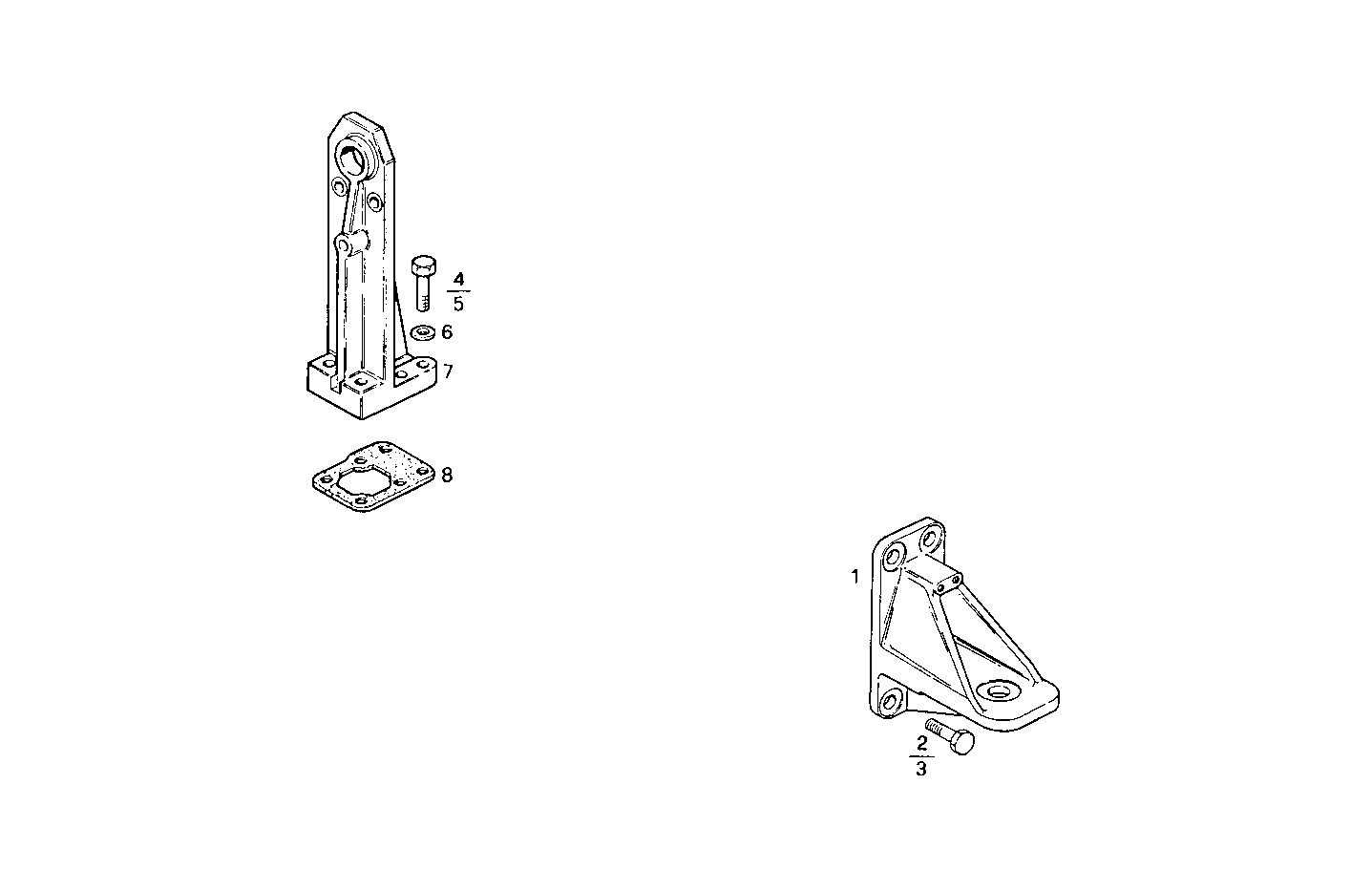

4500.053 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8009515 | ENGINE SUSPENSION |
| 2 | 17462034 | LOCKING SCREW M16X2X40 MM |
| 3 | 17462530 | SCREW |
| 4 | 11307021 | HEXAGON BOLT M10X40 MM |
| 5 | 11343721 | HEXAGON BOLT M10X65 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 4830866 | HOOK |
| 8 | 4882600 | GASKET |
