8291SRi15.00

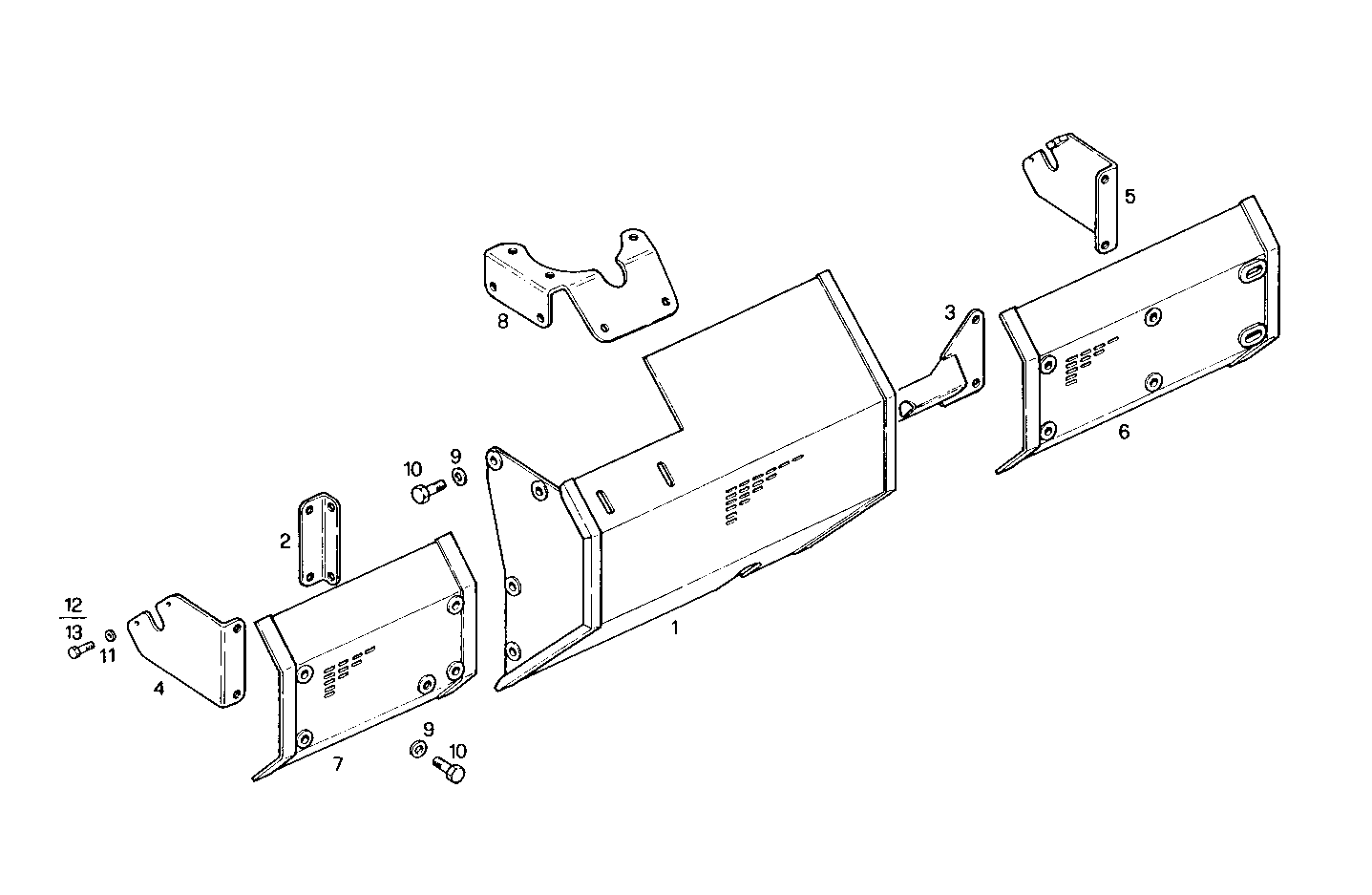

5770.017 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8018297 | PROTECTION |
| 2 | 8018298 | RETAINER |
| 3 | 8018637 | SUPPORT |
| 4 | 8018261 | RETAINER LEFT |
| 5 | 8018260 | RETAINER RIGHT |
| 6 | 8018629 | PROTECTION |
| 7 | 8018257 | PROTECTION |
| 8 | 8018501 | RETAINER |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 11 | 17708774 | WASHER Ø6X11 MM |
| 12 | 16603924 | HEXAGON BOLT M6X30 MM |
| 13 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
