8291SRi15.00

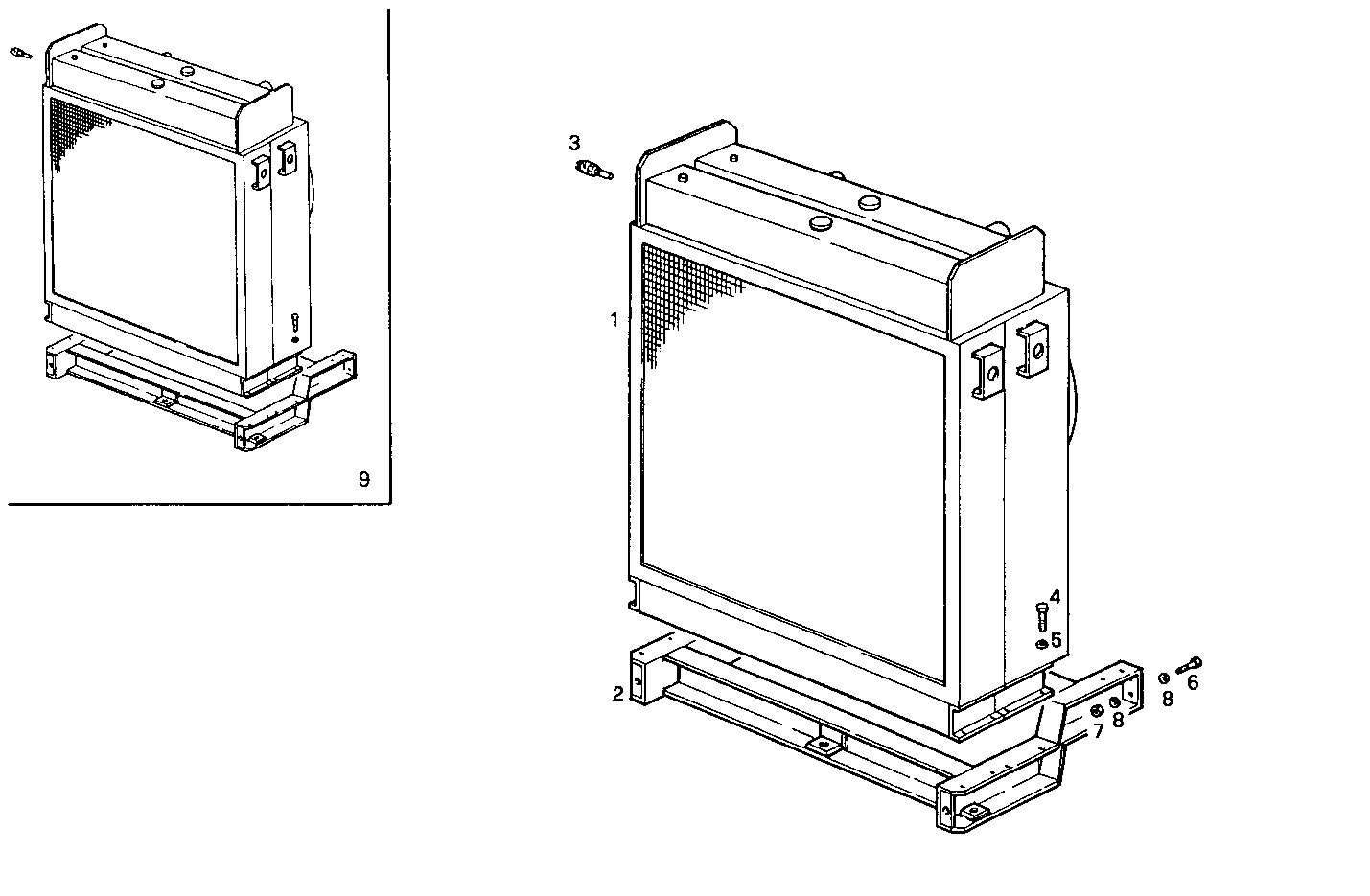

A22610001/01 RADIATOR 2 CIRCUITS AIR/WATER - loose

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8018395 WATER RADIATOR ASSY
2 8019059 SUPPORT
3 8006054 TRANSMITTER TBLA
4 16609924 HEXAGON BOLT M12X30 MM (8.8)
5 17091374 SPRING WASHER Ø12X30X3,0 MM
6 16617224 SCREW M20X50
7 17039321 NUT M20X2,5
8 17092774 WASHER Ø20X38X4,6 MM
9 8019211 WATER RADIATOR
