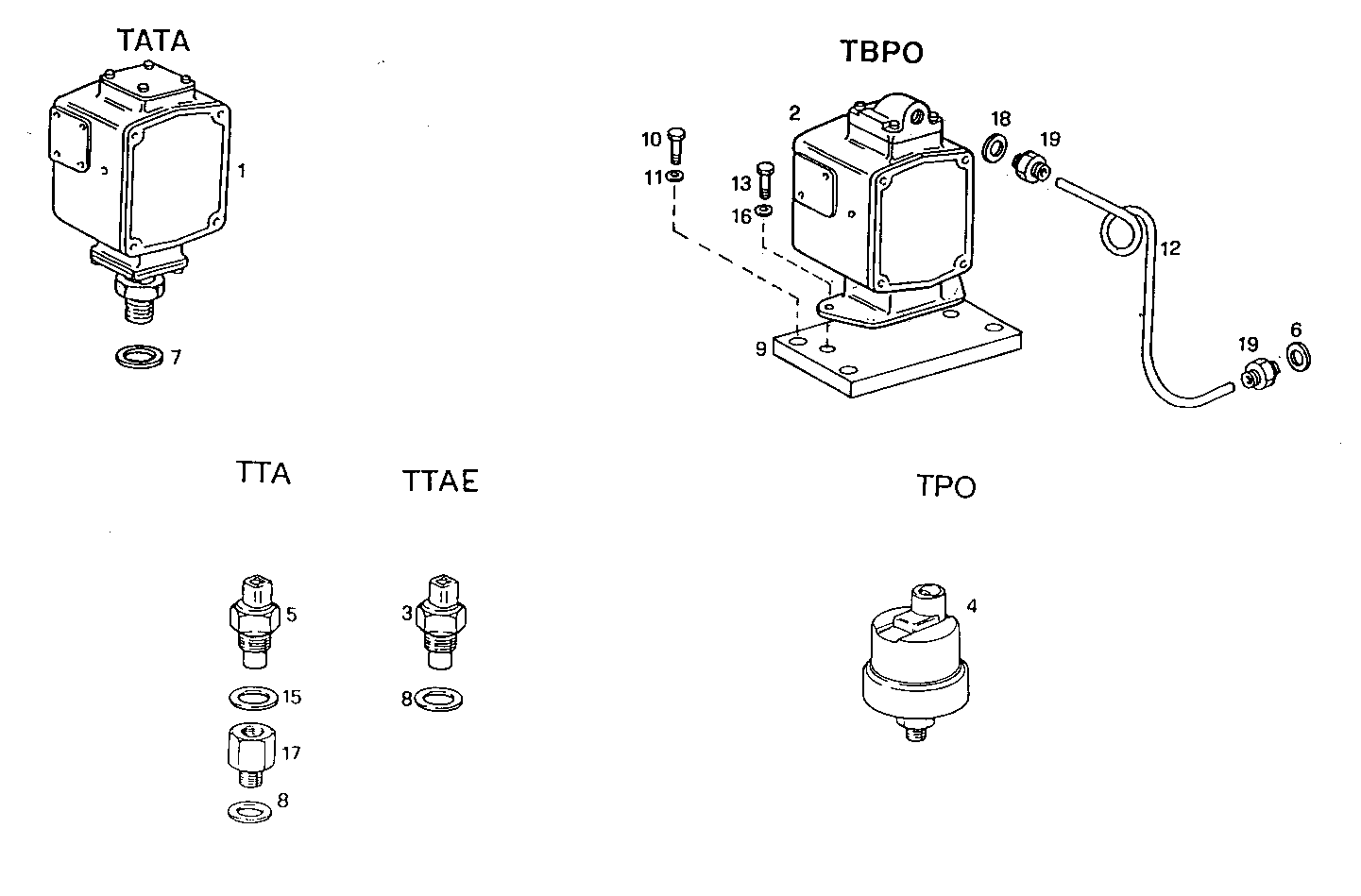

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8110741 |
TRANSMITTER TBPO |
|
3 |
8023166 |
TRANSMITTER TTAE |
|
4 |
8100563 |
TRANSMITTER TPO |
|
5 |
4933019 |
TRANSMITTER TTA - TTO |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
9 |
8018393 |
RETAINER |
|
10 |
16605424 |
SCREW M8X16 MM (8.8) |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
8021856 |
HOSE L=450 MM |
|
13 |
16603424 |
SCREW M6X10 |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
17088475 |
WASHER |
|
17 |
4919578 |
PIPE SOCKET M22X1,5/M16X1,5 |
|
18 |
4858606 |
GASKET Ø10X14X1 MM |
|
19 |
16500011 |
PIPE SOCKET |
