8291SRi15.00

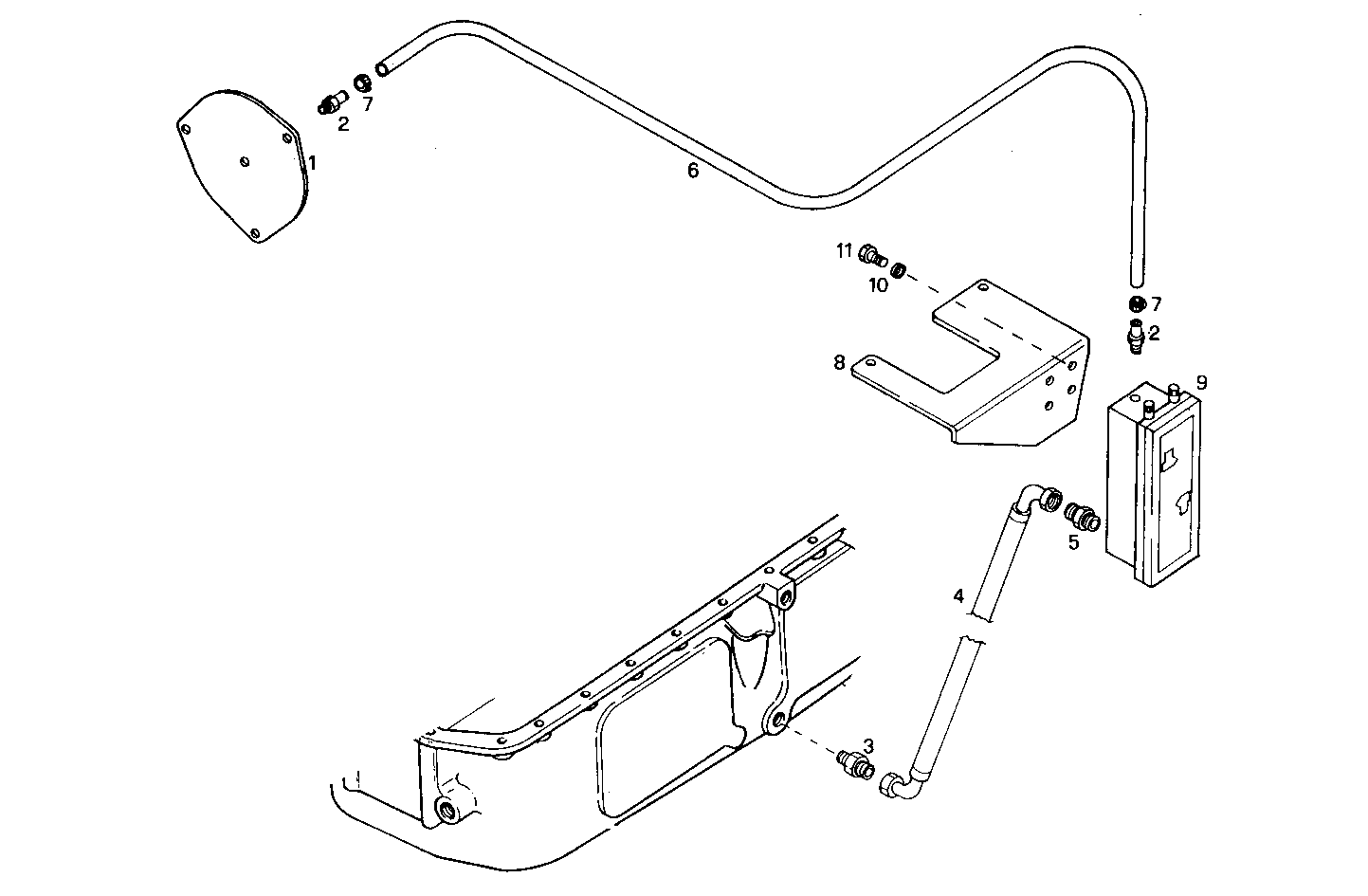

A38640002 SENDER UNITS FOR OIL LEVEL - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8028260 | COVER |
| 2 | 4618675 | THREADED UNION |
| 3 | 8103812 | PIPE SOCKET |
| 4 | 8100723 | HOSE |
| 5 | 8023433 | PIPE SOCKET |
| 6 | 8028265 | OIL HOSE |
| 7 | 18088291 | CLIP Ø12/20 MM |
| 8 | 8023741 | RETAINER |
| 9 | 8022518 | TRANSMITTER |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
