Catalogue Menu

8291SRM12.12

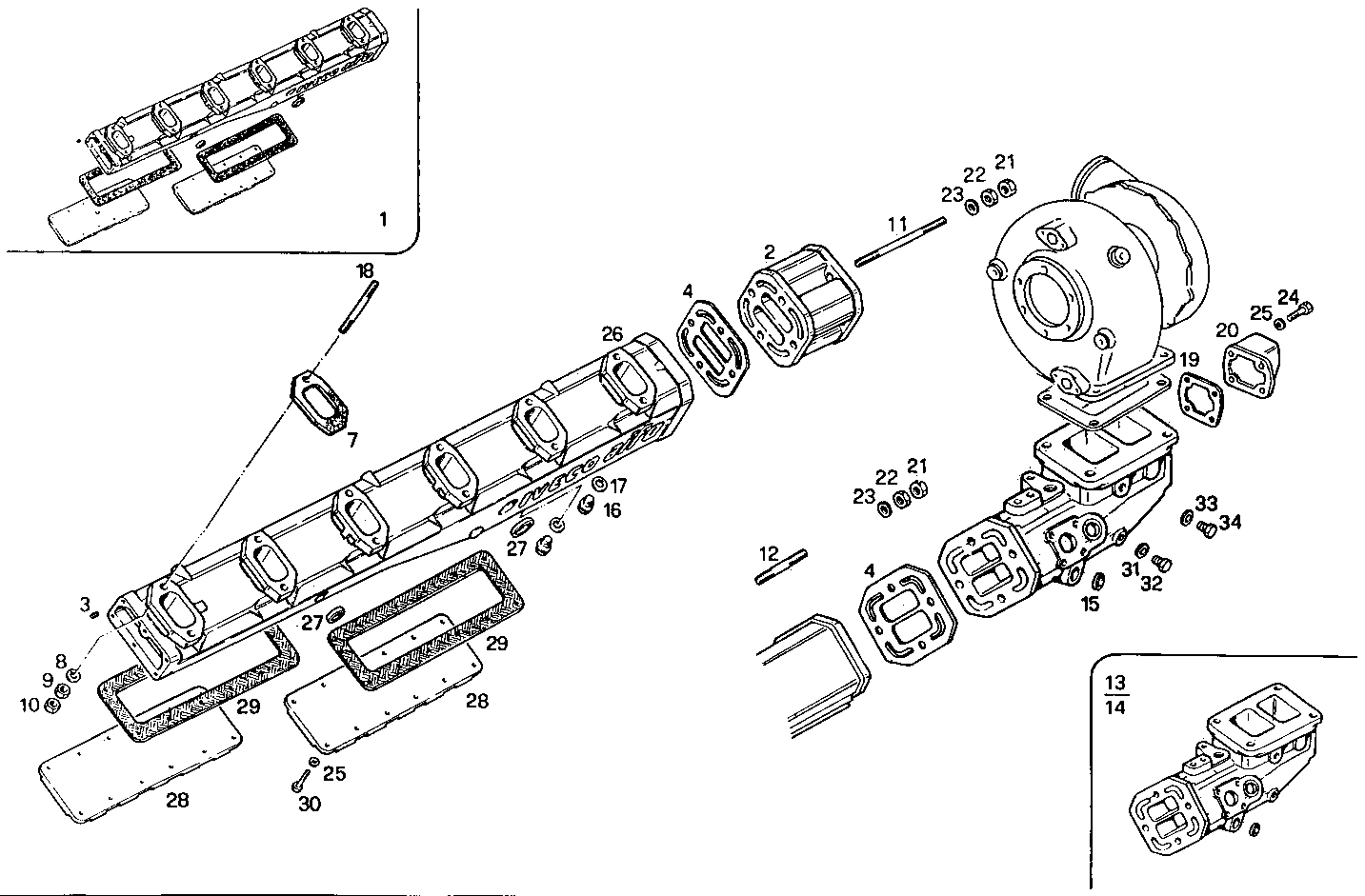

0760.051 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8011365 COOLED EXHAUST MANIF. ASSY
2 8009000 SPACING BAR
3 17873371 THREADED INSERT M10X1,5
4 8006874 GASKET
5 8105604 COVER
7 8051541 EXH. MANIFOLD GKT
8 16665614 WASHER Ø10,5 MM
9 4927248 NUT M10X1,25
10 8100961 NUT M10X1,25
11 13554830 STUD M12X24X150
12 13552630 STUD M12X24X40
13 8015757 EXHAUST COOL. ELBOW ASSY LEFT
14 8015759 EXHAUST COOL. ELBOW ASSY RIGHT
15 16990870 LOCK PLUG Ø28 MM
16 16992540 PLUG M18X1,5
17 4858610 WASHER Ø18X24 MM SP=1,5 MM
18 13449830 STUD M10X1,25X35 MM
19 8105608 GASKET
20 8113918 COVER
21 8103206 NUT
22 8103197 NUT M12X1,25
23 16665714 WASHER Ø14X24X2,5 MM
24 16607024 HEXAGON BOLT M8X120 MM
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 16991170 LOCK PLUG Ø36 MM
28 8021358 COVER
29 8021800 GASKET
30 16605424 SCREW M8X16 MM (8.8)
31 4858608 SEAL GASKET dia.14x19,5x1,5
32 16992340 THREADED PLUG M14X1,5
33 4858607 WASHER Ø12X17 MM SP=1,5 MM
34 16992211 THREADED PLUG M12X1,5
