8291SRM12.12

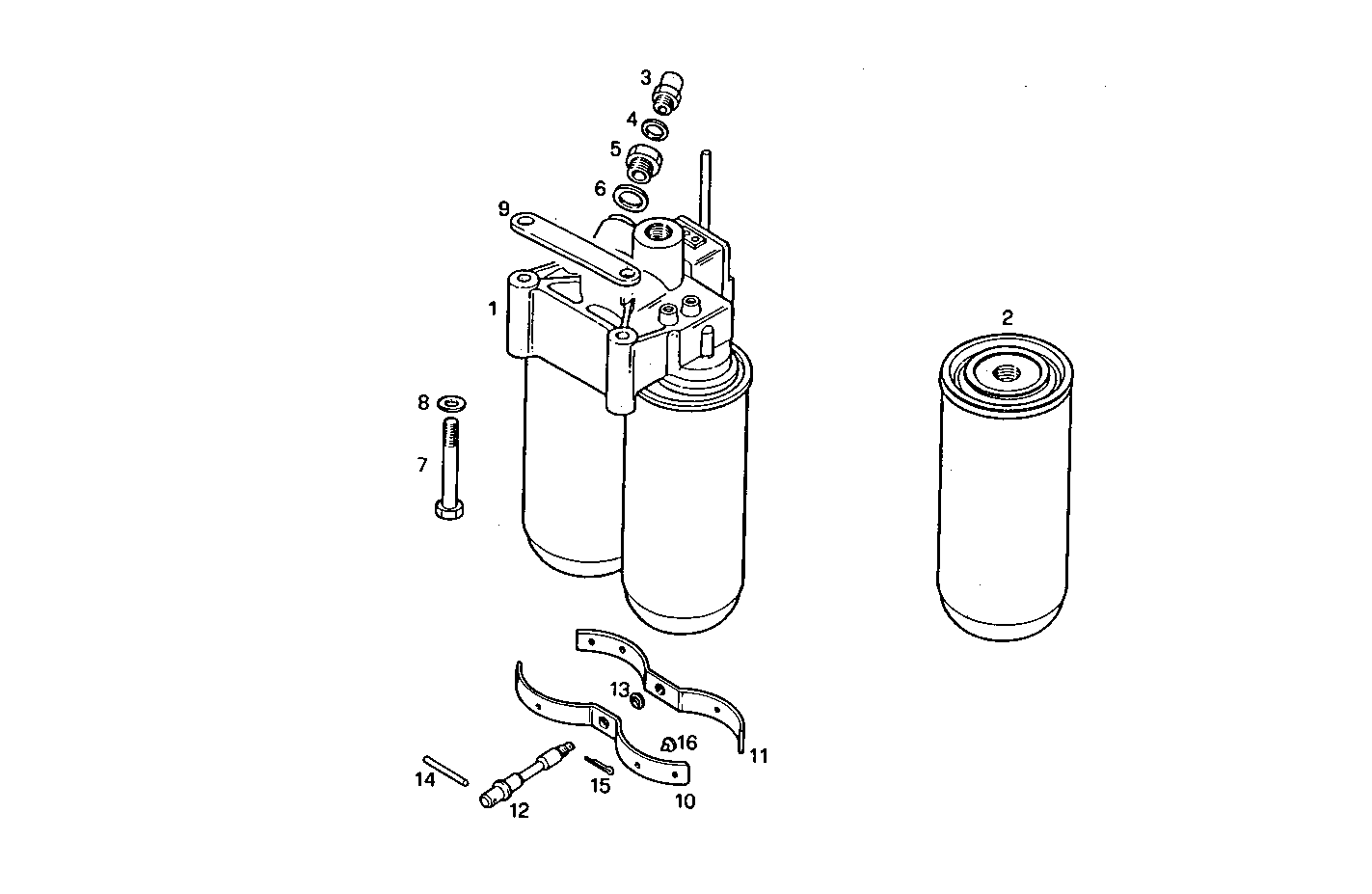

2000.054 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 8022363 FUEL FILTER ASSY
2 8106473 FUEL FILTER CARTRIDGE
3 8123686 VALVE
4 4858608 SEAL GASKET dia.14x19,5x1,5
5 4882217 PIPE SOCKET M18X1,5 - M14X1,5
6 4858610 WASHER Ø18X24 MM SP=1,5 MM
7 16610824 SCREW M12X80
8 17091074 WASHER Ø12X24X2,8 MM
9 8017759 PLATE
10 8019107 CLAMP
11 8021139 CLAMP
12 8021141 SCREW
13 17094914 WASHER 8x16
14 17238110 PIN
15 16854001 SPLIT PIN
16 1366290 RUBBER LUG
