8291SRM12.12

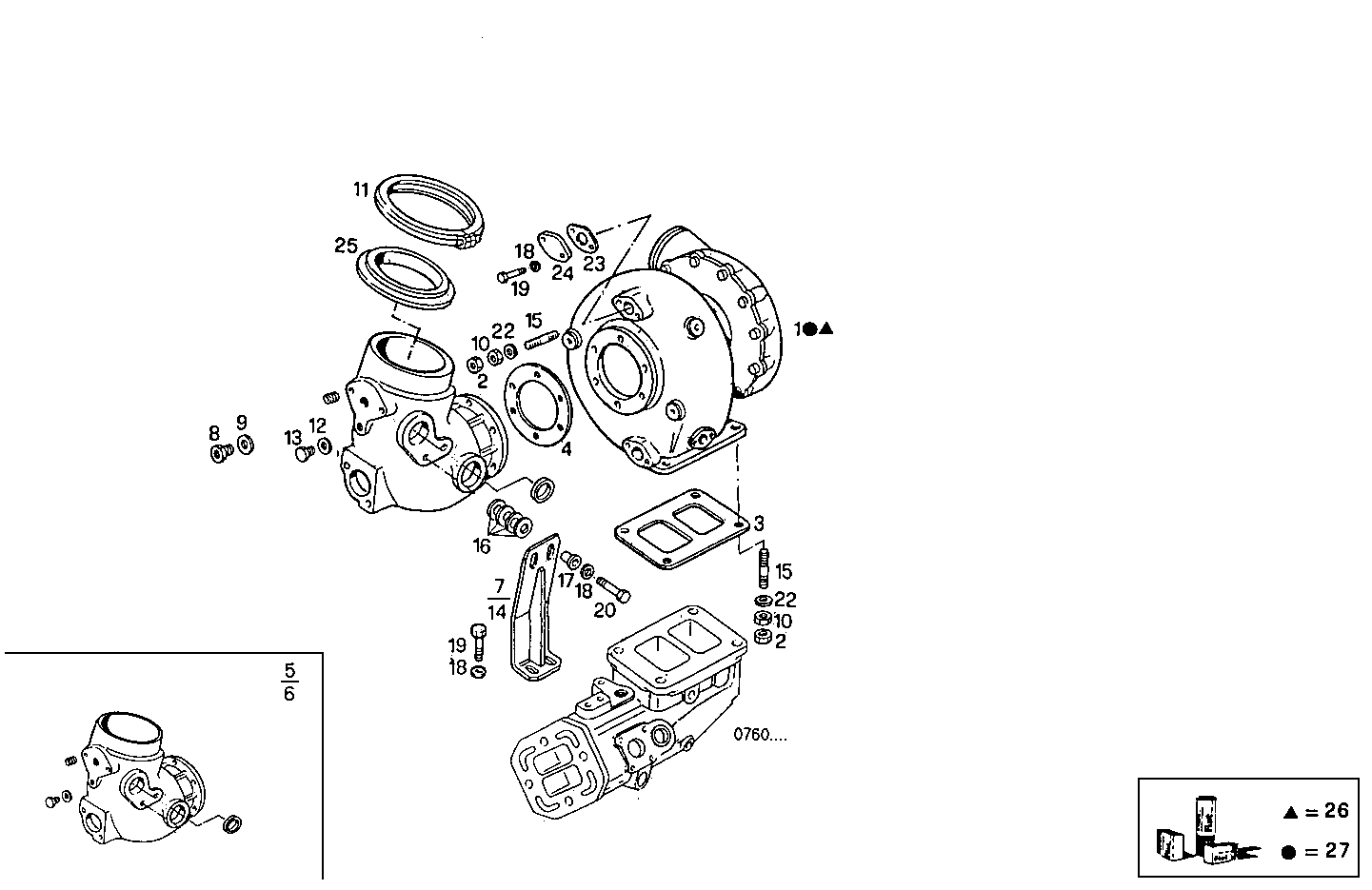

2400.071/01 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8022878 WATER COOL.TURBOCHARGER ASSY K.K.K.
2 16979631 HEXAGON NUT M10
3 4512366 GASKET
4 42075987 GASKET
5 8020093 EXHAUST ELBOW ASSY LEFT
6 8020167 EXHAUST ELBOW ASSY RIGHT
7 8016255 RETAINER RIGHT
8 8018282 PIPE SOCKET
9 4858610 WASHER Ø18X24 MM SP=1,5 MM
10 17038121 HEXAGON NUT M10
11 4886025 CLIP
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 16992211 THREADED PLUG M12X1,5
14 8015773 RETAINER LEFT
15 16731334 STUD M10X30
16 8014696 SPRING
17 8014697 SPACING BAR
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 16605524 HEXAGON BOLT M8X20 MM
20 16605734 HEXAGON BOLT M8X30 MM
22 16665614 WASHER Ø10,5 MM
23 98482697 GASKET
24 4798805 COVER
25 8022500 FLANGE
26 8092699 KIT-TURBOCHARGER
27 8092700 KIT-TURBOCHARGER
