8291SRM12.12

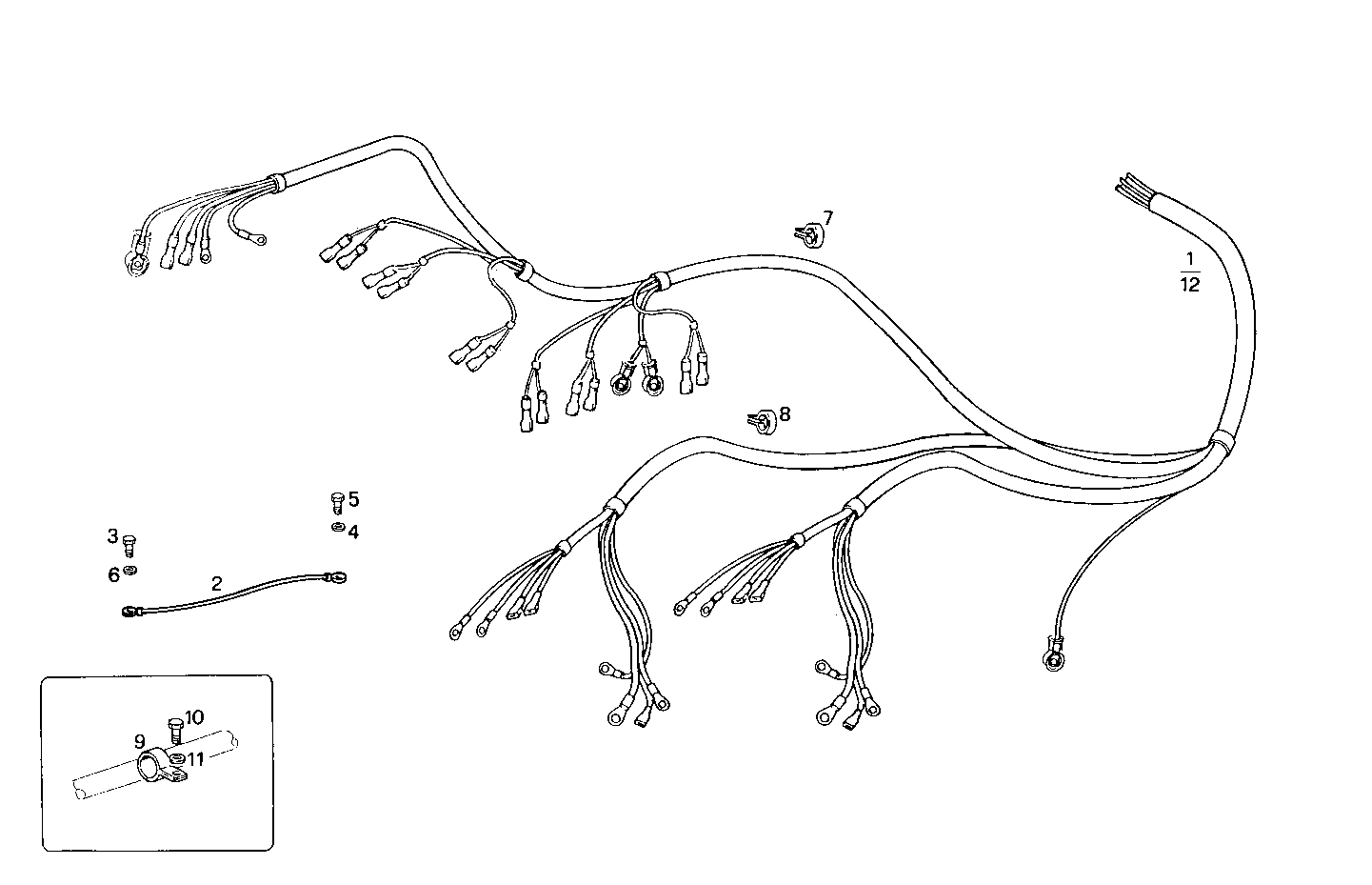

5690.022 CABLES
Item | Part number | Description |
---|---|---|
1 | 8010947 | ENGINE HARNESS |
2 | 8016516 | EARTH WIRE GND |
3 | 16603424 | SCREW M6X10 |
4 | 17094714 | WASHER Ø6,4X12 MM |
5 | 16605424 | SCREW M8X16 MM (8.8) |
6 | 17094914 | WASHER 8x16 |
7 | 4936277 | CLIP [up to 03-97] |
8 | 4936278 | CLIP |
9 | 17316690 | FASTENING BRACKET Ø20,5 MM |
10 | 16607424 | SCREW M10X16 |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 8021951 | ENGINE HARNESS |
