8291SRM12.12A001

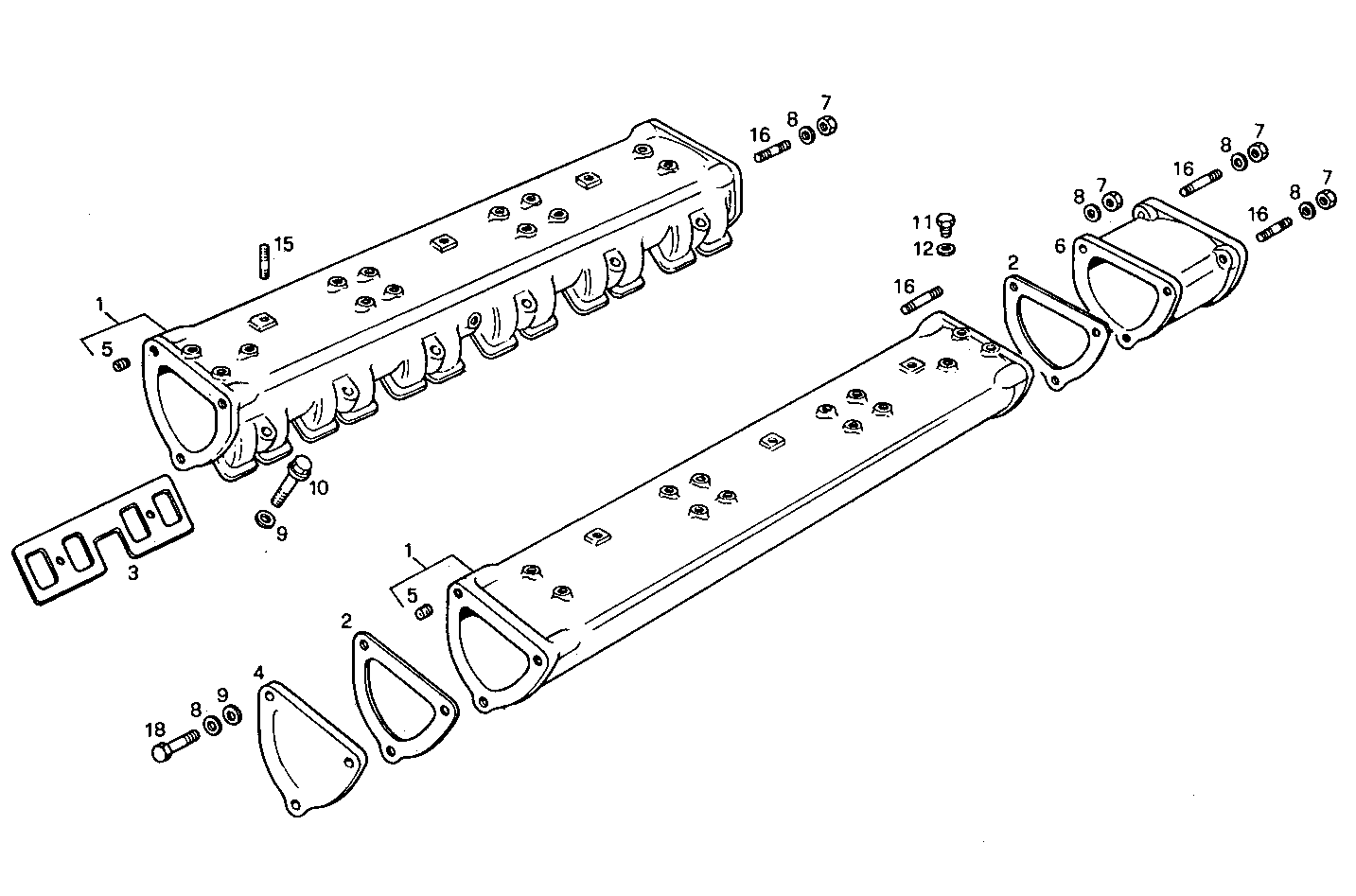

0710.116 INTAKE MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 8008388 | INTAKE ELBOW ASSY |
2 | 4786886 | GASKET |
3 | 4790542 | INTAKE ELBOW GASK. |
4 | 4718509 | COVER |
5 | 17873371 | THREADED INSERT M10X1,5 |
6 | 8104267 | SPACING BAR |
7 | 17038121 | HEXAGON NUT M10 |
8 | 17090174 | SPRING WASHER Ø10X20 MM |
9 | 16665614 | WASHER Ø10,5 MM |
10 | 4720250 | SCREW |
11 | 16992211 | THREADED PLUG M12X1,5 |
12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
15 | 16727724 | STUD M6X20 MM |
16 | 16748624 | STUD M10X30 MM |
18 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
