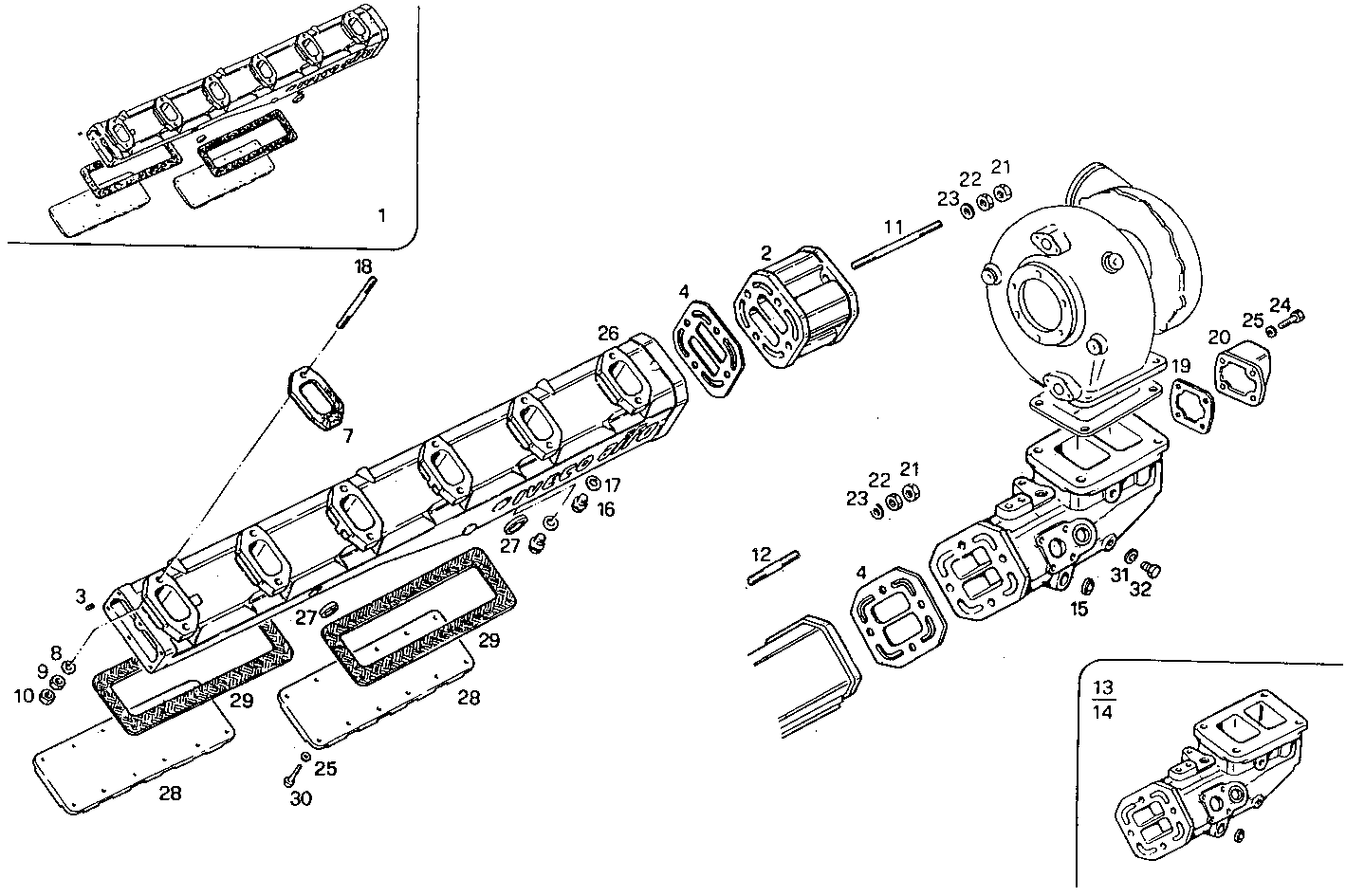

| Item |
Part number |
Description |
|
1 |
8011365 |
COOLED EXHAUST MANIF. ASSY |
|
2 |
8009000 |
SPACING BAR |
|
3 |
17873371 |
THREADED INSERT M10X1,5 |
|
4 |
8006874 |
GASKET |
|
5 |
8105604 |
COVER |
|
7 |
8051541 |
EXH. MANIFOLD GKT |
|
8 |
16665614 |
WASHER Ø10,5 MM |
|
9 |
4927248 |
NUT M10X1,25 |
|
10 |
8100961 |
NUT M10X1,25 |
|
11 |
13554830 |
STUD M12X24X150 |
|
12 |
13552630 |
STUD M12X24X40 |
|
13 |
8020564 |
EXHAUST COOL. ELBOW ASSY LEFT |
|
14 |
8020565 |
EXHAUST COOL. ELBOW ASSY RIGHT |
|
15 |
16990870 |
LOCK PLUG Ø28 MM |
|
16 |
16992540 |
PLUG M18X1,5 |
|
17 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
18 |
13449830 |
STUD M10X1,25X35 MM |
|
19 |
8105608 |
GASKET |
|
20 |
8113918 |
COVER |
|
21 |
8103206 |
NUT |
|
22 |
8103197 |
NUT M12X1,25 |
|
23 |
16665714 |
WASHER Ø14X24X2,5 MM |
|
24 |
16607024 |
HEXAGON BOLT M8X120 MM |
|
25 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
27 |
16991170 |
LOCK PLUG Ø36 MM |
|
28 |
8021358 |
COVER |
|
29 |
8021800 |
GASKET |
|
30 |
16605424 |
SCREW M8X16 MM (8.8) |
|
31 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
32 |
16992340 |
THREADED PLUG M14X1,5 |
