8291SRM12.12A001

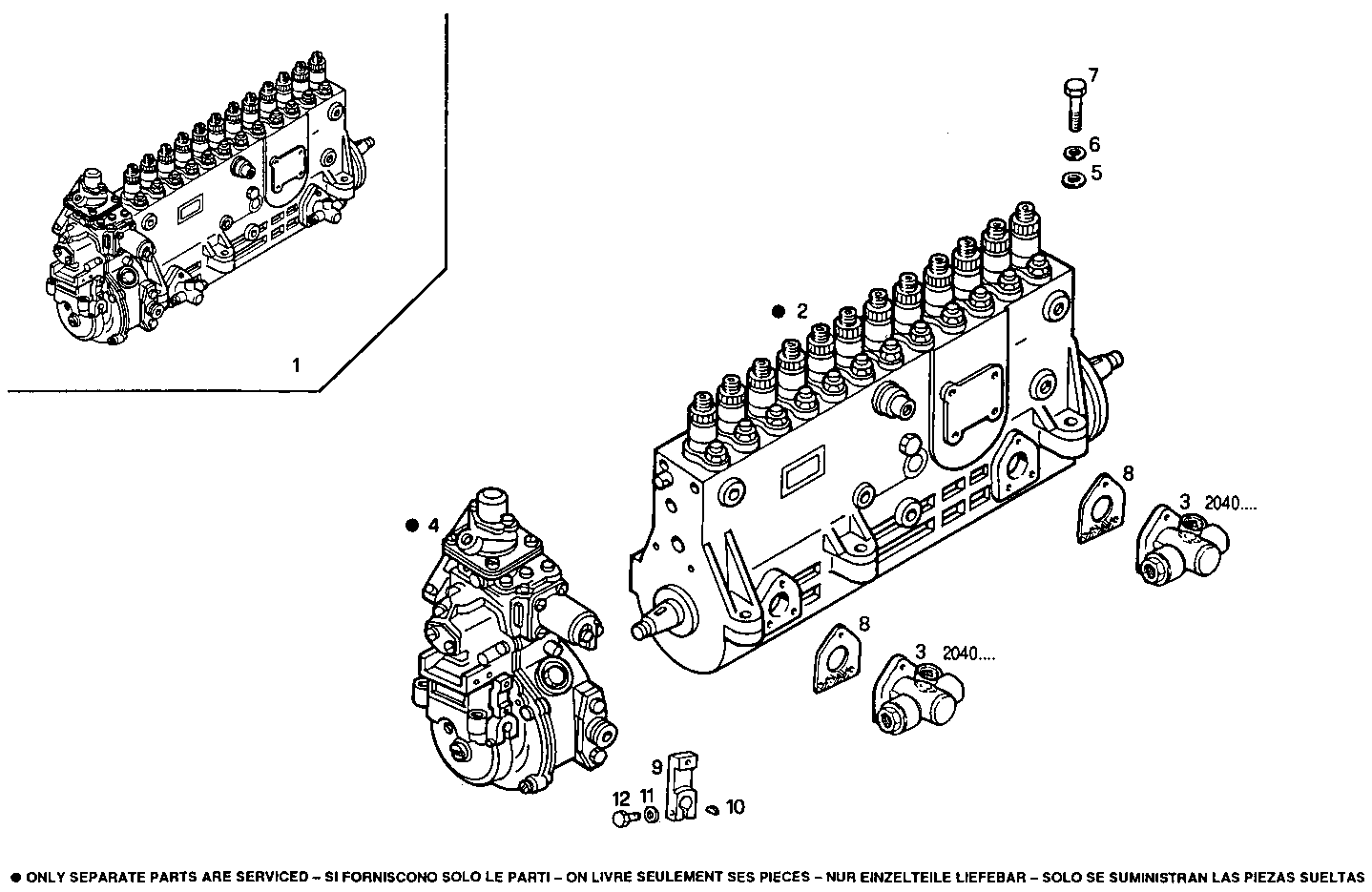

1400.095/01 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8010154 INLINE INJECT.PUMP ASSY
3 8010373 FUEL PUMP ASSY
5 756671 WASHER
6 17090274 WASHER Ø10X20 MM
7 15971330 HEXAGON BOLT M10X75 MM
8 8111232 GASKET
9 8110753 LEVER
10 8101048 KEY 3X5X12,5
11 17494634 SPRING WASHER Ø5,1X9,2 MM
12 16602124 SCREW M5X16 MM
