8291SRM12.12A001

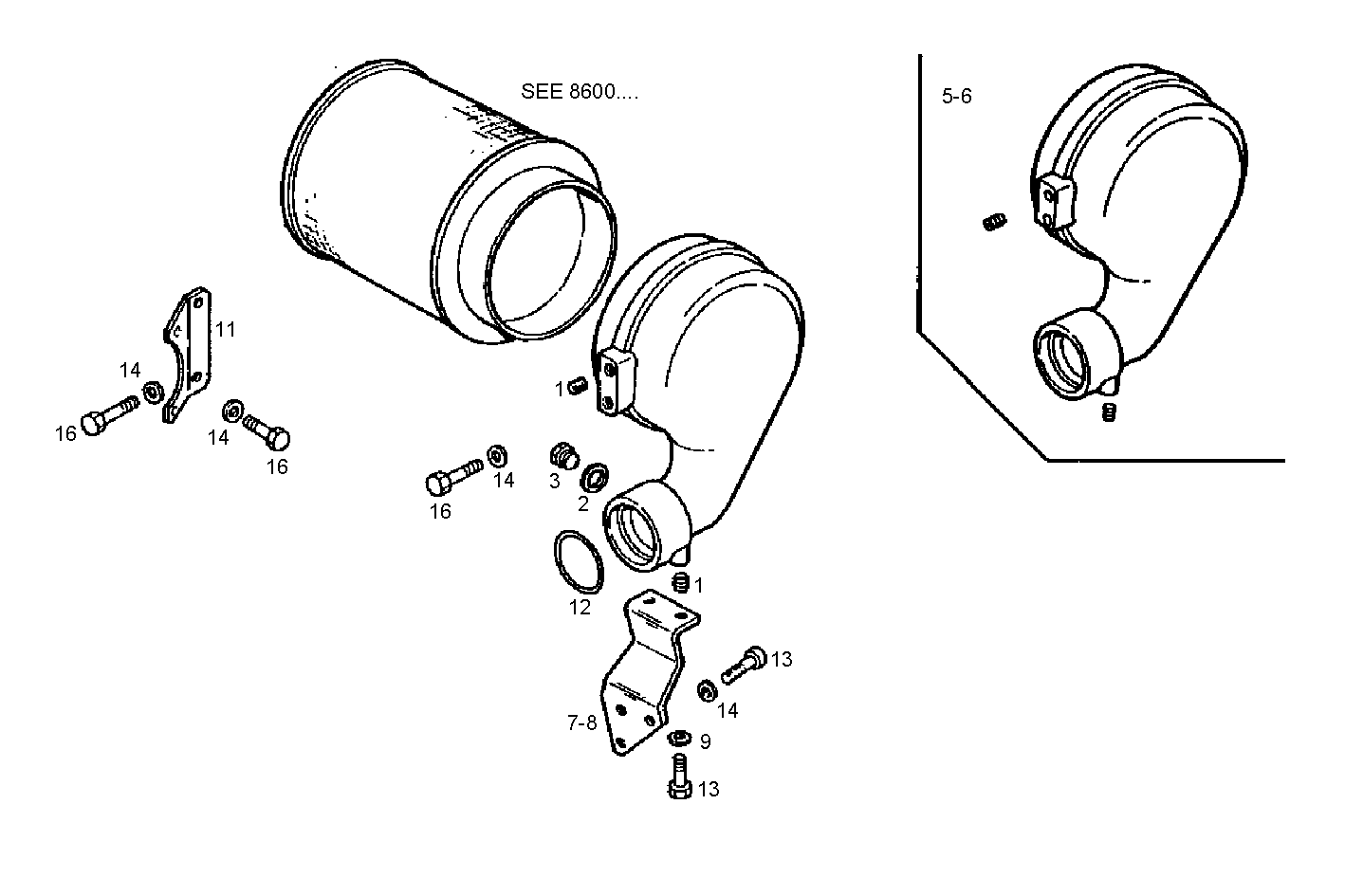

2210.036 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 17873271 | THREADED INSERT M8 |
| 2 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 3 | 16992311 | LOCK PLUG M14X1,5 |
| 5 | 8009100 | INTAKE ELBOW ASSY LEFT |
| 6 | 8009102 | INTAKE ELBOW ASSY RIGHT |
| 7 | 8009172 | SUPPORT |
| 8 | 8009173 | SUPPORT |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 8009177 | RETAINER |
| 12 | 17291081 | O-RING Ø88,49X3,53 MM |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
