8291SRM12.12A001

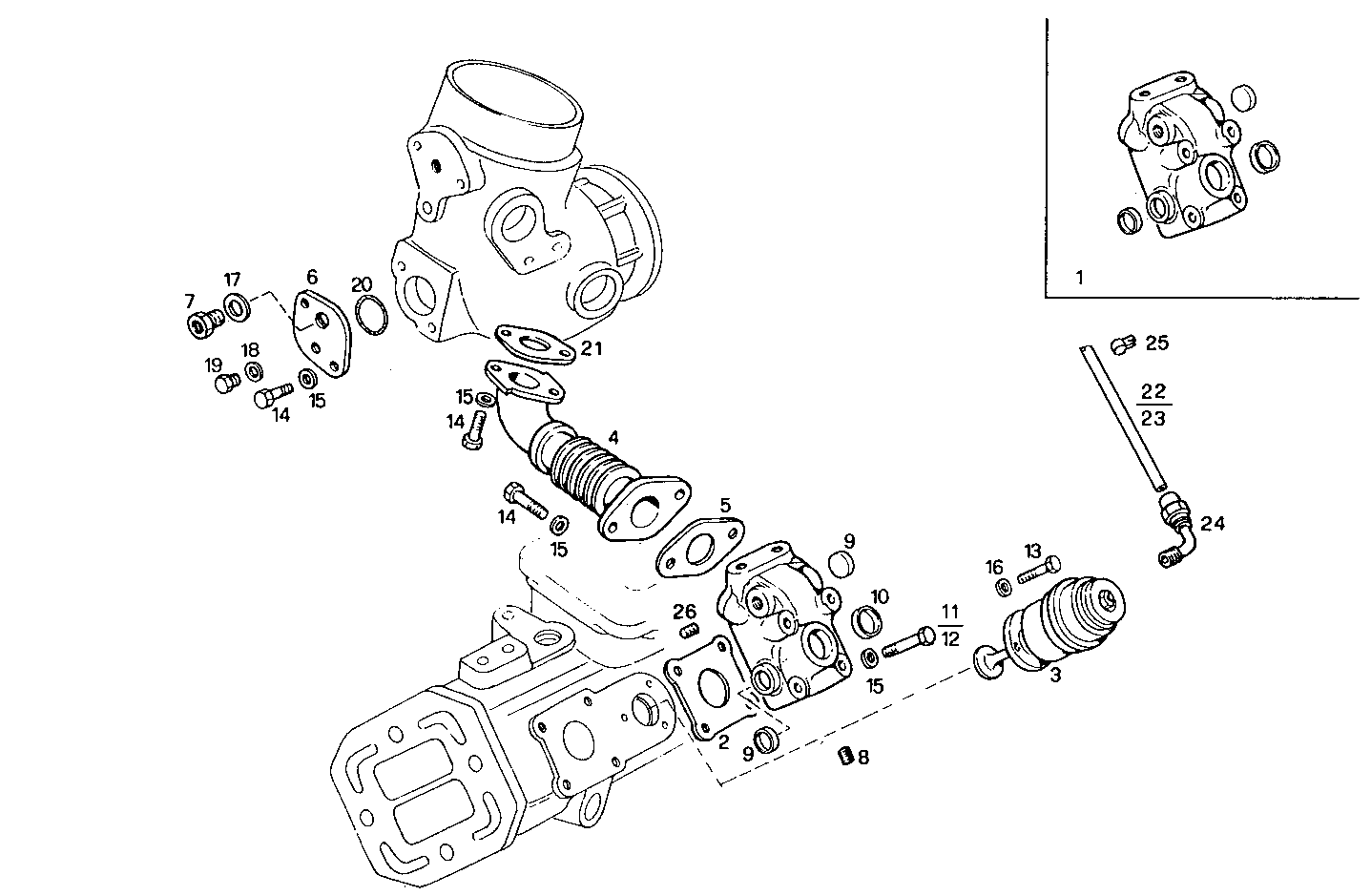

2400.071/02 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8015694 EXHAUST ELBOW
2 8015602 GASKET
3 8016774 VALVE
4 8021314 EXHAUST ELBOW
5 8015772 GASKET
6 8015297 COVER
7 16993511 LOCK PLUG M28X1,5
8 16997711 LOCK PLUG M22X1,5
9 16990570 LOCK PLUG Ø20 MM
10 16990870 LOCK PLUG Ø28 MM
11 16606224 HEXAGON BOLT M8X55 MM
12 16606724 HEXAGON BOLT M8X90 MM
13 16689134 SOCKET-HEAD SCREW M6X16 MM
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 17101434 SPRING WASHER Ø6 MM
17 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
18 4858608 SEAL GASKET dia.14x19,5x1,5
19 16992340 THREADED PLUG M14X1,5
20 17280381 O-RING Ø60,05 x 1,78 MM
21 8021305 GASKET
22 8016763 AIR PIPE/DUCT LEFT
23 8016764 AIR PIPE/DUCT RIGHT
24 8111261 PIPE SOCKET Ø1/8'' MM
25 4656139 FASTENING BRACKET
26 16997311 PLUG M14X1,5
