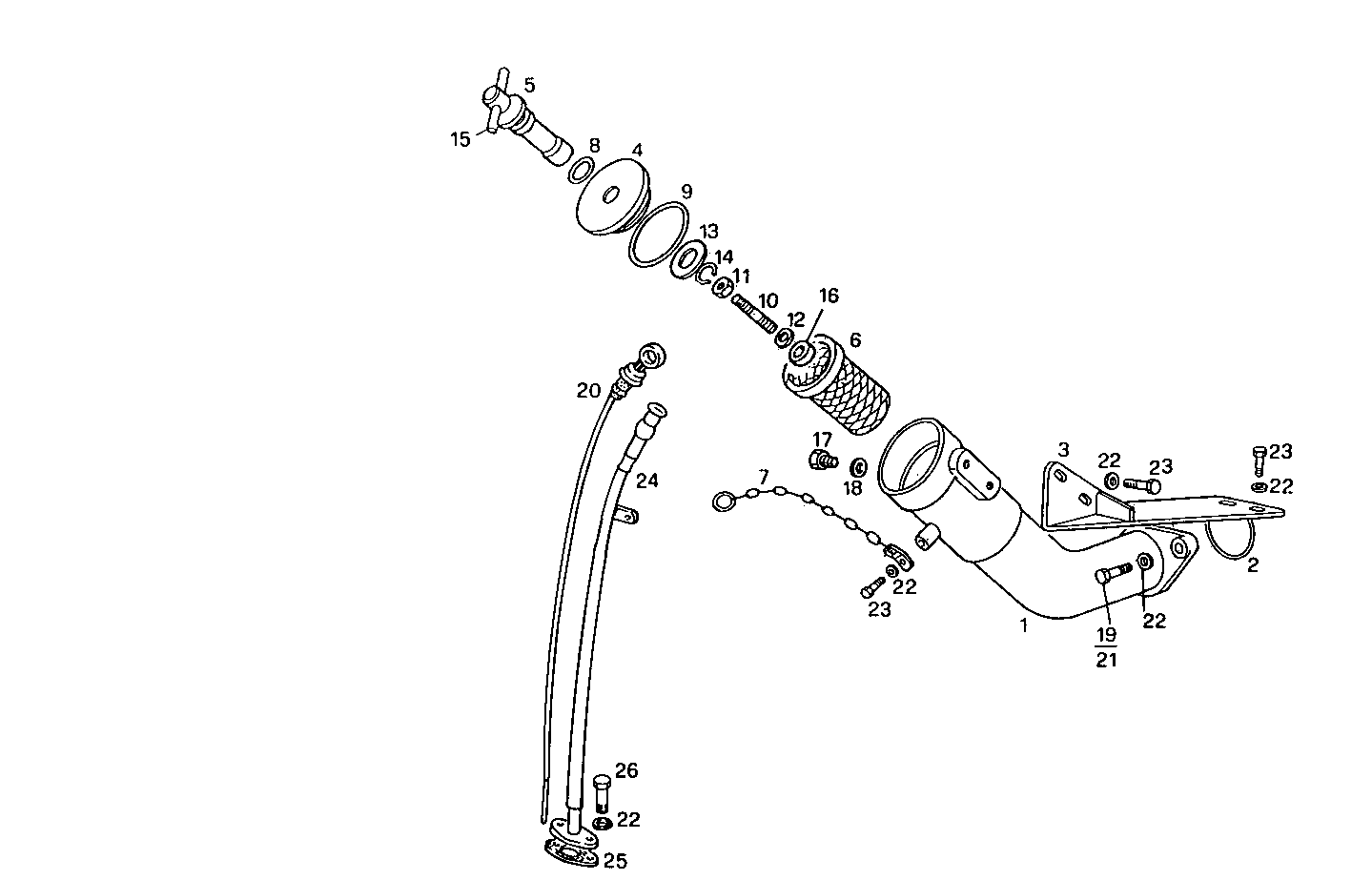

| Item |
Part number |
Description |
|
1 |
8017071 |
OIL FILLER PIPE |
|
2 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
3 |
8017082 |
RETAINER |
|
4 |
4882506 |
COVER |
|
5 |
4882529 |
ROD |
|
6 |
4882530 |
STRAINER |
|
7 |
4882591 |
CHAIN |
|
8 |
4854897 |
O-RING |
|
9 |
17296081 |
O-RING Ø56,52X5,33 MM |
|
10 |
16706824 |
STUD |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
17094914 |
WASHER 8x16 |
|
13 |
17095704 |
WASHER Ø16X30 MM |
|
14 |
16865776 |
CIRCLIP Ø15,7 MM |
|
15 |
17239320 |
PIN |
|
16 |
17816014 |
SPACING BAR Ø8,5X18X5 MM |
|
17 |
16992340 |
THREADED PLUG M14X1,5 |
|
18 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
19 |
16606924 |
SCREW M8X110 |
|
20 |
8014196 |
OIL DIPSTICK |
|
21 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
16605424 |
SCREW M8X16 MM (8.8) |
|
24 |
8014195 |
ROD GUIDE |
|
25 |
4863361 |
GASKET |
|
26 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
