8291SRM12.12A001

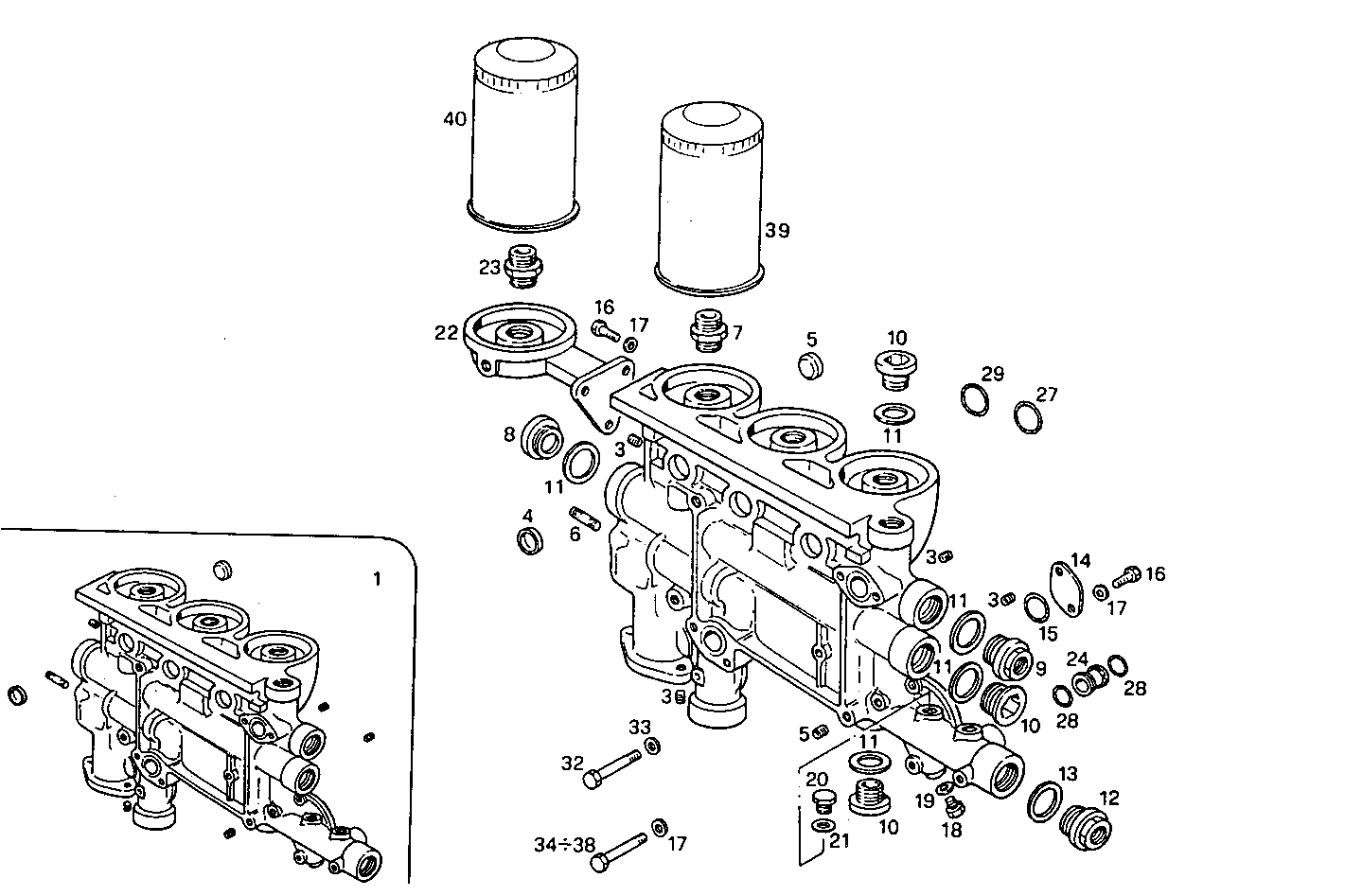

3020.034 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 8009787 OIL FILTER SUPPORT ASSY
2 17873371 THREADED INSERT M10X1,5
3 17873271 THREADED INSERT M8
4 16991370 LOCK PLUG Ø45 MM
5 16991170 LOCK PLUG Ø36 MM
6 16746624 STUD M8X20 MM (8.8)
7 4785449 PIPE SOCKET
8 8009882 PLUG
9 4882747 PIPE SOCKET
10 16993811 PLUG
11 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
12 4765752 THREADED UNION
13 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
14 8010998 FLANGE
15 17282581 O-RING Ø28,24 MM SP=2,62 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 11903111 LOCK PLUG M10X1,25
19 4858606 GASKET Ø10X14X1 MM
20 16992211 THREADED PLUG M12X1,5
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 8009867 OIL FILTER SUPPORT
23 4785450 THREADED UNION
24 4720965 CONNECTOR SLEEVE
27 17281681 O-RING Ø13,9 MM SP=2,6 MM
28 17282281 O-RING 2,62x23,47
29 17283181 O-RING Ø37,77 MM SP=2,62 MM
32 15541721 HEXAGON BOLT M12X1,25X110 MM
33 17091074 WASHER Ø12X24X2,8 MM
34 16606724 HEXAGON BOLT M8X90 MM
35 16606024 SCREW M8X45 MM
36 16690724 CYLIND-HEAD SCREW M8X30 MM
37 16605734 HEXAGON BOLT M8X30 MM
39 4744707 OIL FILTER CARTRIDGE
40 1902093 OIL FILTER CARTRIDGE
