8291SRM12.12A001

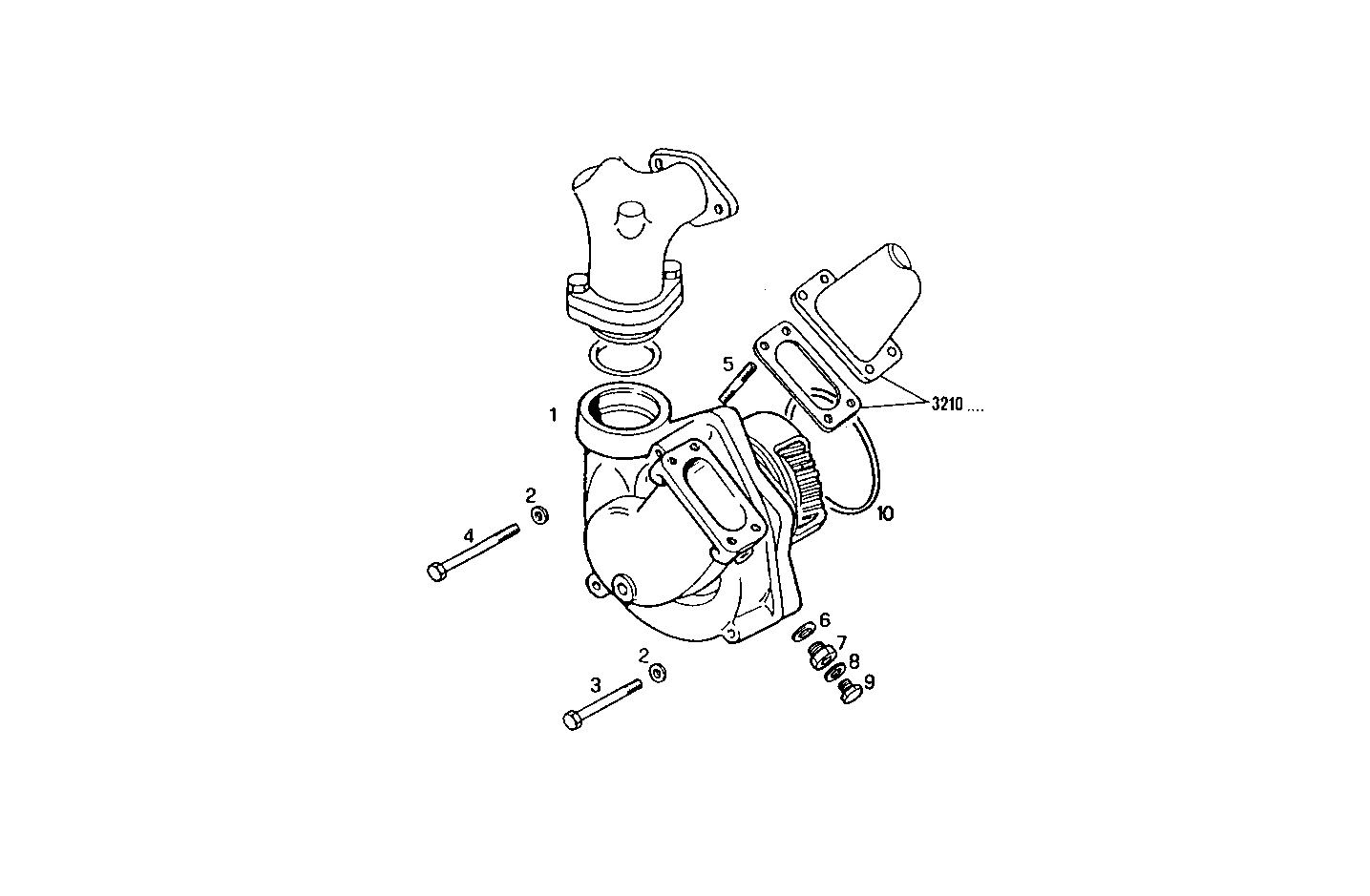

3200.034/01 WATER PUMP

Iveco/FPT WATER PUMP

Item Part number Description
1 8013566 WATER PUMP ASSY
2 17095104 WASHER Ø10X21X2 MM
3 15971624 HEXAGON BOLT M10X1,25X90 MM
4 15888734 HEXAGON BOLT M10X1,25X55 MM
5 16746524 STUD M8X16X16
6 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
7 8012859 PIPE SOCKET
8 4858609 WASHER Ø16X22 MM SP=1,5 MM
9 16992411 THREADED PLUG M16X1,5
10 17292381 O-RING Ø129,8 MM SP=3,53 MM
