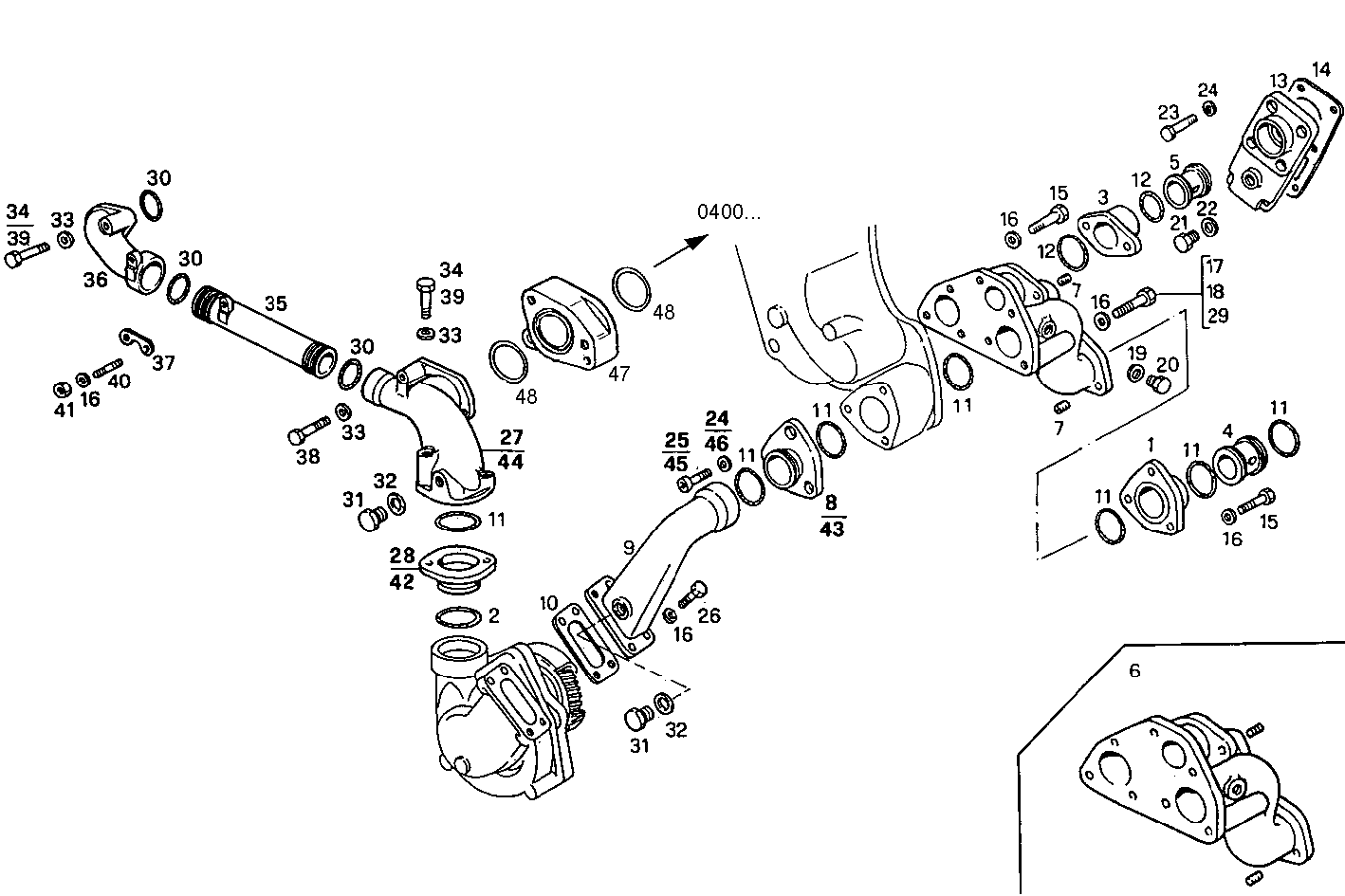

| Item |
Part number |
Description |
|
1 |
8009252 |
FLANGE |
|
2 |
17296481 |
O-RING Ø69,22X5,33 MM |
|
3 |
8021695 |
FLANGE |
|
4 |
8009896 |
ADAPTER |
|
5 |
8016686 |
CONNECTION L=90 MM |
|
6 |
8009300 |
WATER CONVEYOR |
|
7 |
17873271 |
THREADED INSERT M8 |
|
8 |
8008998 |
FLANGE |
|
9 |
8008999 |
WATER PIPE |
|
10 |
8010667 |
GASKET |
|
11 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
12 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
13 |
8009895 |
WATER PIPE |
|
14 |
8101855 |
GASKET |
|
15 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
16607024 |
HEXAGON BOLT M8X120 MM |
|
18 |
16046321 |
HEXAGON BOLT M8X160 MM |
|
19 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
20 |
16992440 |
THREADED PLUG M16X1,5 |
|
21 |
16992340 |
THREADED PLUG M14X1,5 |
|
22 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
23 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
24 |
17101534 |
SPRING WASHER Ø8 MM |
|
25 |
16690524 |
SCREW M8X20 MM (8.8) |
|
26 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
27 |
8019729 |
WATER PIPE [up to 01-97] |
|
28 |
4782582 |
REDUCER INSERT |
|
29 |
16046021 |
HEXAGON BOLT M8X140 MM |
|
30 |
17283981 |
O-RING Ø50,4 MM SP=2,6 MM |
|
31 |
16992540 |
PLUG M18X1,5 |
|
32 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
33 |
17094914 |
WASHER 8x16 |
|
34 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
35 |
8019730 |
WATER PIPE [from 01-95] |
|
36 |
8019780 |
EXHAUST ELBOW [from 01-95] |
|
37 |
8019781 |
PLATE |
|
38 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
39 |
16690924 |
CYLIND-HEAD SCREW M8X40 MM |
|
40 |
16729224 |
STUD M8X16 MM |
|
41 |
17037931 |
HEXAGON NUT M8X1,25 |
|
42 |
8026630 |
FLANGE [from 06-98] |
|
43 |
8021582 |
WATER PIPE [from 01-97] |
|
44 |
8019782 |
WATER PIPE [from 01-95] |
|
45 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
47 |
8019727 |
FLANGE [from 01-95] |
