8291SRM12.12A001

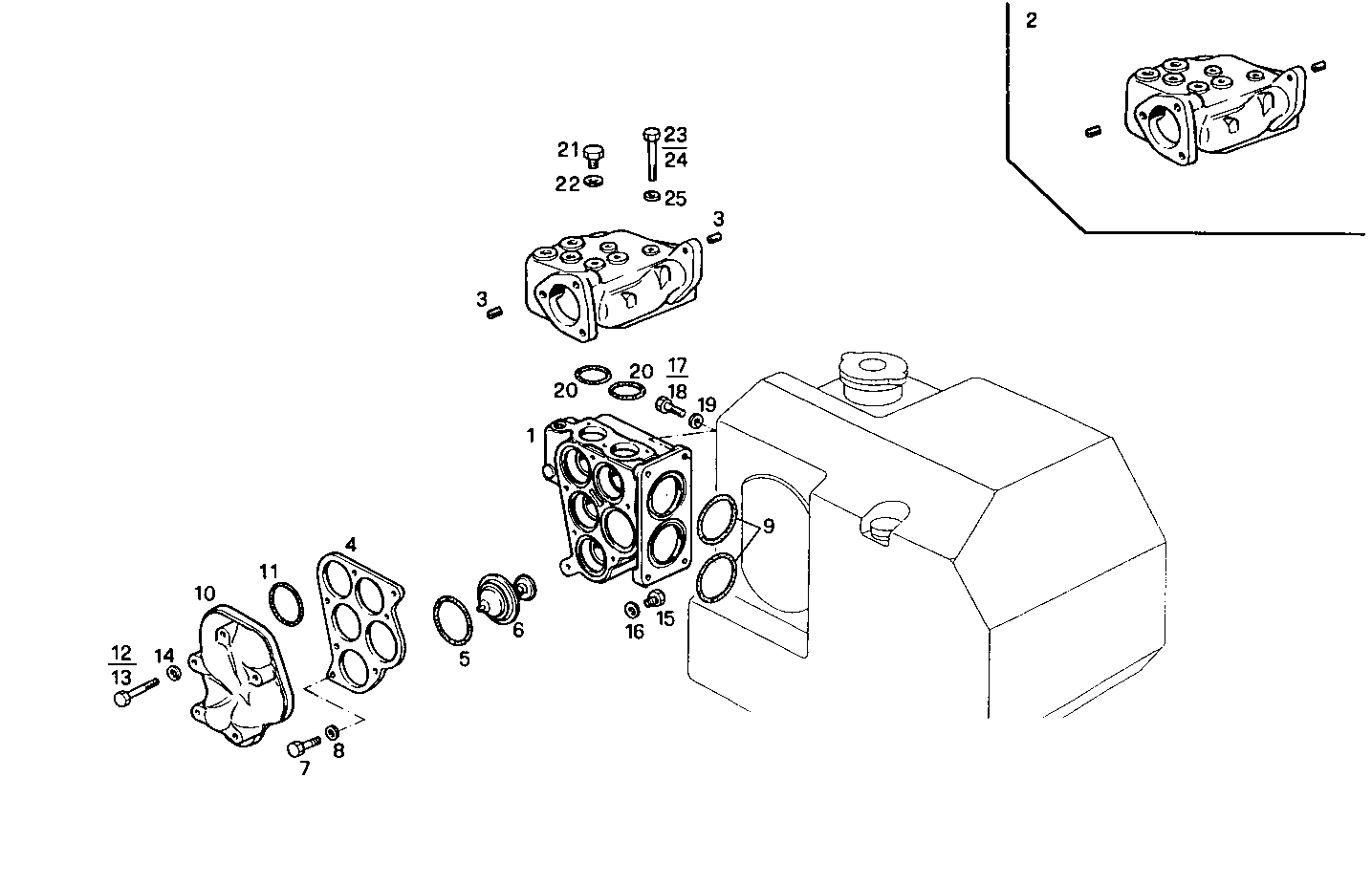

3220.143 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 8020491 SUPPORT
2 8020495 WATER CONVEYOR ASSY
3 17873271 THREADED INSERT M8
4 8020493 SPACING BAR
5 98465113 O-RING Ø60 MM
6 8038071 THERMOSTAT
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 8026103 O-RING Ø72,63X3,53 MM
10 8020494 COVER
11 8026095 O-RING Ø66,34 MM SP=2,62 MM
12 16608324 HEXAGON BOLT M10X1,5X60 MM
13 16608424 SCREW M10X1,25X65
14 17095004 WASHER Ø10X18X2 MM
15 4584394 PLUG 1/2''
16 11271460 GASKET Ø21X26X1,5 MM
17 16607824 HEXAGON BOLT M10X35 MM (8.8)
18 16607624 SCREW M10X25
19 17090174 SPRING WASHER Ø10X20 MM
20 8026100 O-RING Ø3,53X53,57 MM
21 16992440 THREADED PLUG M16X1,5
22 4858609 WASHER Ø16X22 MM SP=1,5 MM
23 16606824 HEXAGON BOLT M8X100 MM
24 16605734 HEXAGON BOLT M8X30 MM
25 17094914 WASHER 8x16
