8291SRM12.12A001

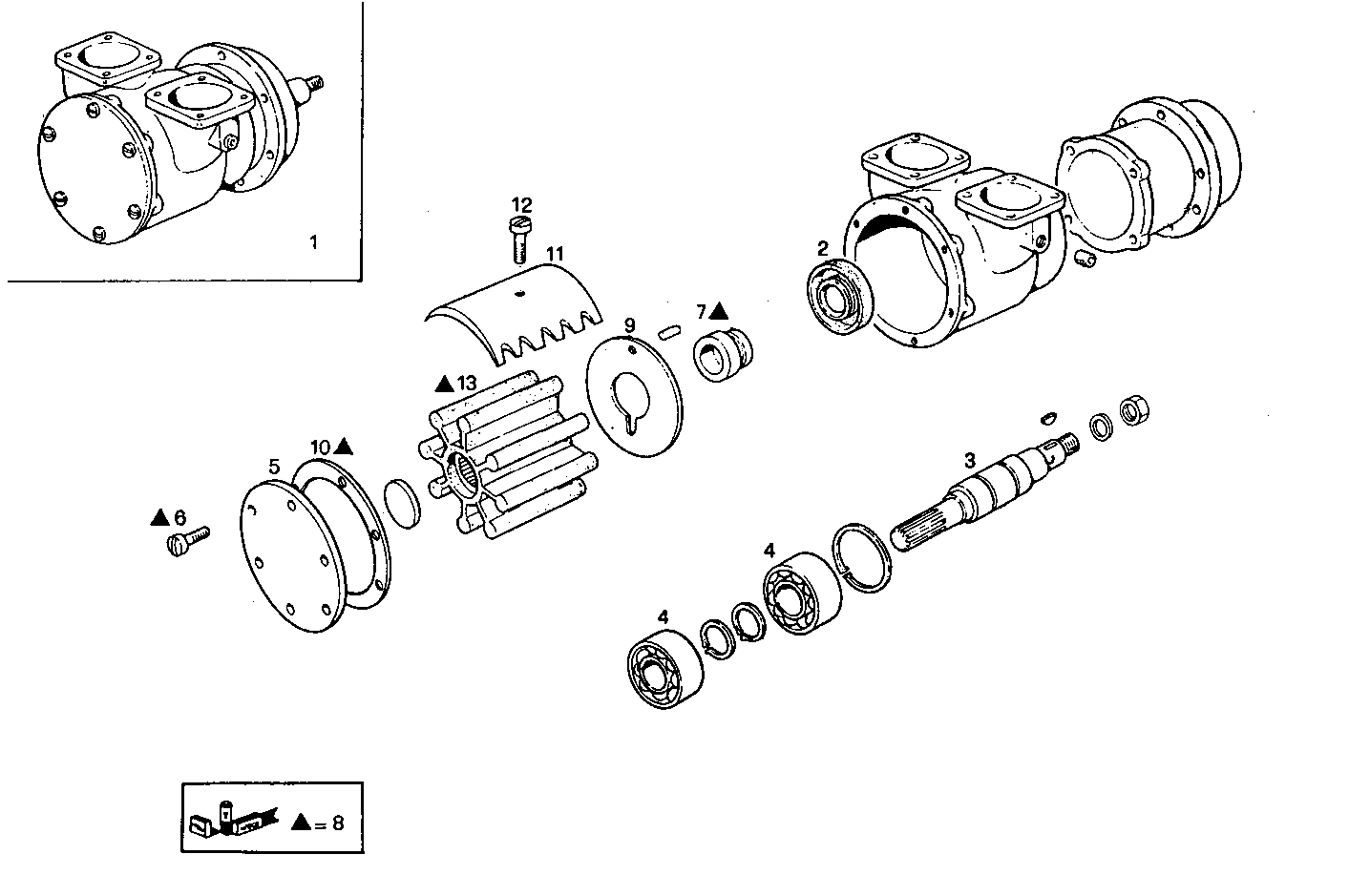

3380.010/02 SEA WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 8009474 | SEA WATER PUMP ASSY [up to 10-94] |
2 | 8105717 | WASHER |
3 | 8093344 | SHAFT |
4 | 8093343 | DRIVE BEARING |
5 | 8108824 | COVER |
6 | 8093341 | SCREW |
7 | 8093340 | WASHER |
8 | 8092985 | SEA WATER PUMP-KIT |
9 | 8010817 | COVER |
10 | 8093338 | GASKET |
11 | 8093342 | RETAINING CAM |
12 | 8093336 | SCREW |
13 | 8093339 | SEA WATER PUMP IMPELL. |
