8291SRM12.12A001

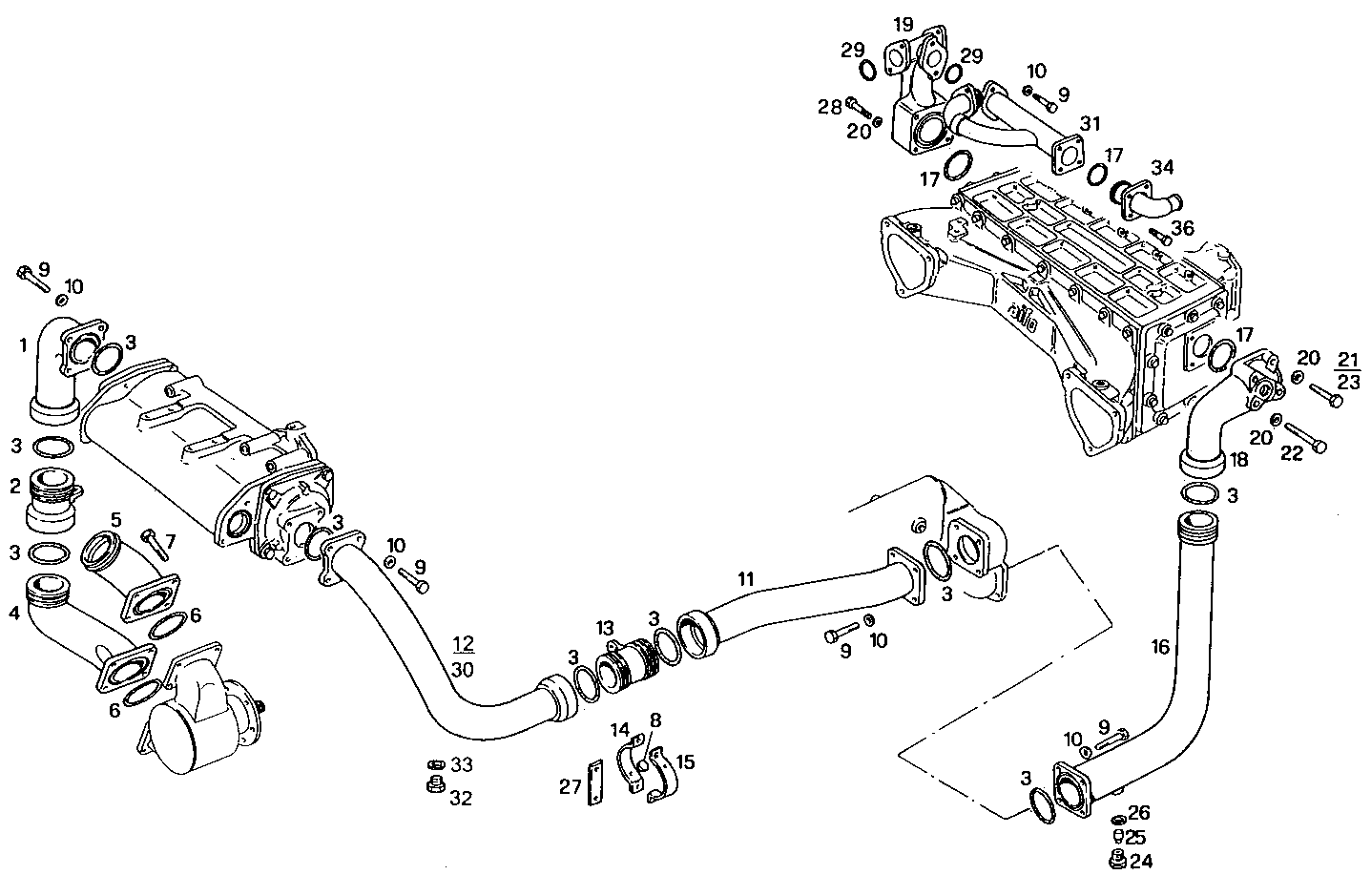

3390.054 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8010568 WATER PIPE
2 8010567 SPACING BAR
3 17290481 O-RING 3,53x69,44 [UP TO # 328594]
4 8010715 WATER PIPE
5 8010688 WATER PIPE
6 17290781 O-RING Ø78,97X3,53 MM
7 8014453 SCREW
8 1366290 RUBBER LUG
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8014933 WATER PIPE
12 8010438 WATER PIPE
13 8010462 SPACING BAR
14 8011429 CLAMP
15 8011430 CLAMP
16 8014937 WATER PIPE
17 17290281 O-RING Ø63,09 MM SP=3,53 MM
18 8012415 INTAKE ELBOW
19 8020572 WATER PIPE
20 17101634 SPRING WASHER Ø10X16X2,5 MM
21 16693224 SCREW M10X1,5X90 MM [from 01-96]
22 16692824 CYLIND-HEAD SCREW M10X60 MM
23 16693024 SCREW
24 8101771 PLUG M28
25 8101772 SACRIFICAL ANODE Ø20 MM
26 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
27 16693124 RETAINER
29 17289981 O-RING Ø53,57X3,53 MM
30 8019981 WATER PIPE [from 01-96]
31 8022700 WATER PIPE
32 16992440 THREADED PLUG M16X1,5
33 4858609 WASHER Ø16X22 MM SP=1,5 MM
34 8111433 FLANGE
35 8111431 WATER PIPE INLET
36 16587124 HEXAGON BOLT M10X25 MM
