8291SRM12.12A001

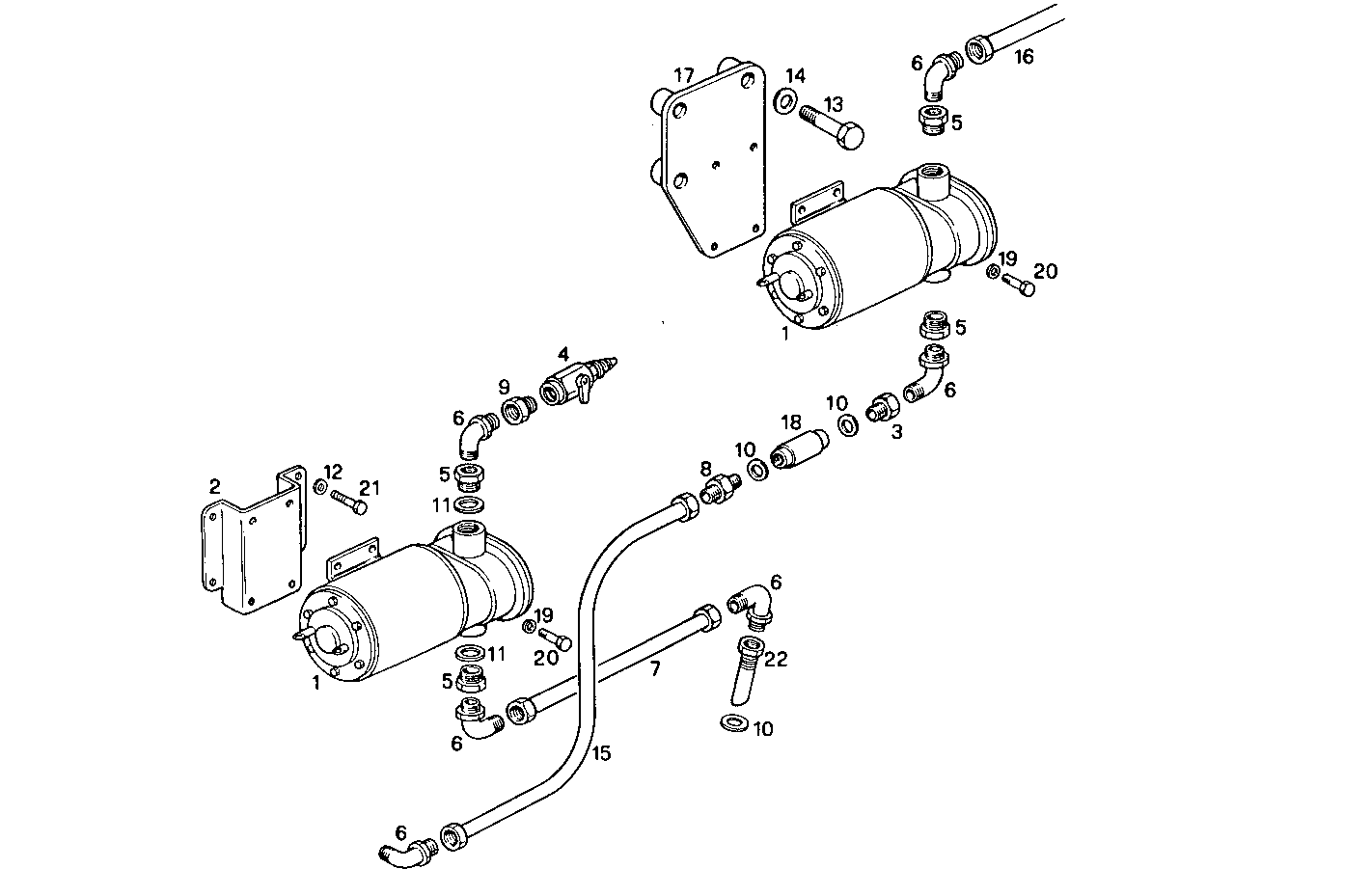

5510.025 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8011001 | OIL DRAIN ELECTRIC PUMP |
| 2 | 8018171 | SUPPORT |
| 3 | 8018215 | PIPE SOCKET |
| 4 | 8113932 | DRAIN COCK |
| 5 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
| 6 | 16512111 | PIPE SOCKET |
| 7 | 8018194 | OIL LINE |
| 8 | 8011304 | PIPE SOCKET |
| 9 | 8016102 | PIPE SOCKET |
| 10 | 11271460 | GASKET Ø21X26X1,5 MM |
| 11 | 11270460 | GASKET Ø17X21X1,5 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 15540721 | HEXAGON BOLT M12X45 MM |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 8021754 | OIL LINE |
| 16 | 8021755 | OIL LINE |
| 17 | 8015906 | SUPPORT |
| 18 | 8011241 | VALVE 1/2'' |
| 19 | 17088474 | WASHER Ø6X12 MM |
| 20 | 16603524 | SCREW M6X12 MM (8.8) |
| 21 | 15970521 | HEXAGON BOLT M10X20 MM |
| 22 | 8016101 | OIL LINE |
