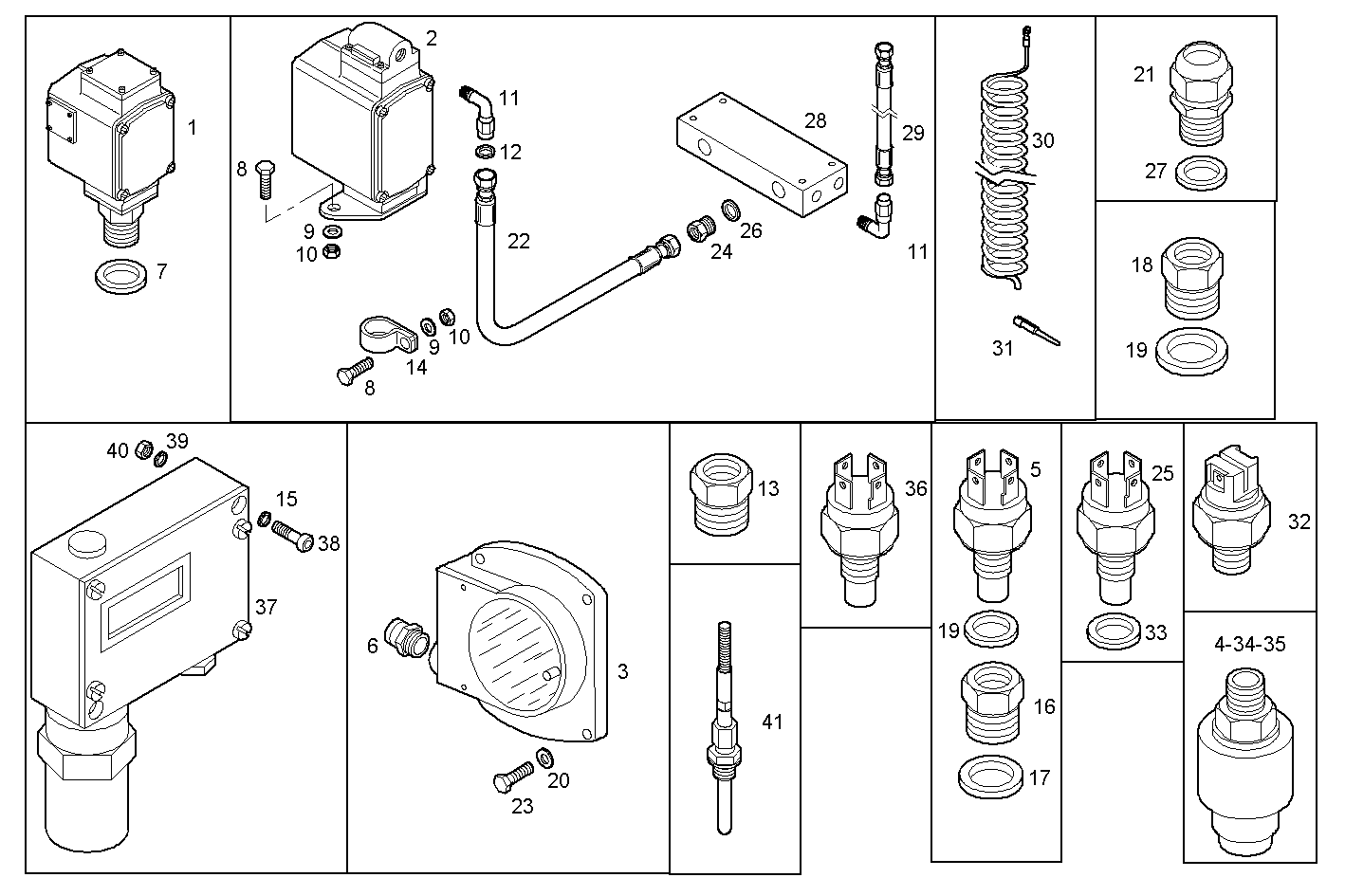

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8110741 |
TRANSMITTER TBPO |
|
3 |
8020320 |
TRANSMITTER |
|
4 |
8020705 |
TRANSMITTER MARINE GEAR OIL PRESSURE |
|
5 |
8020701 |
TRANSMITTER water temperature |
|
6 |
8113194 |
CONNECTION [up to 08-94] |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
9 |
17088474 |
WASHER Ø6X12 MM |
|
10 |
17037821 |
HEXAGON NUT M6X1 |
|
11 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
12 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
13 |
8005420 |
PIPE SOCKET M12x1,5 - M10x1 |
|
14 |
17316190 |
PIPE CLIP Ø6 MM |
|
15 |
17094504 |
WASHER Ø5,3X10 MM |
|
16 |
4919578 |
PIPE SOCKET M22X1,5/M16X1,5 |
|
17 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
18 |
8022317 |
PIPE SOCKET M16x1,5 - M10x1 |
|
19 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
20 |
17101334 |
SPRING WASHER Ø5 MM |
|
21 |
8111038 |
CLIP |
|
22 |
8020723 |
OIL LINE |
|
23 |
16688077 |
SCREW |
|
24 |
16500014 |
THREADED UNION M10X1 - M12X1,5 |
|
25 |
8020702 |
TRANSMITTER ENGINE OIL TEMPERATURE |
|
26 |
4858606 |
GASKET Ø10X14X1 MM |
|
27 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
28 |
8021839 |
DISTRIBUTOR |
|
29 |
8021856 |
HOSE L=450 MM |
|
30 |
8113164 |
WIRE/CABLE |
|
31 |
8113196 |
TERMINAL |
|
32 |
8114030 |
TRANSMITTER IBPO |
|
33 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
34 |
8020704 |
TRANSMITTER TURBO AIR PRESSURE |
|
35 |
8020703 |
TRANSMITTER ENGINE OIL PRESSURE |
|
36 |
8020706 |
TRANSMITTER MARINE GEAR OIL TEMPERATURE |
|
37 |
8017186 |
TRANSMITTER DIFFERENTIAL OIL PRESSURE |
|
38 |
17132214 |
SCREW |
|
40 |
17037721 |
NUT M5X0,8 |
|
41 |
8020707 |
TRANSMITTER EXHAUST GAS TEMPERATURE |
