8291SRM12.12A001

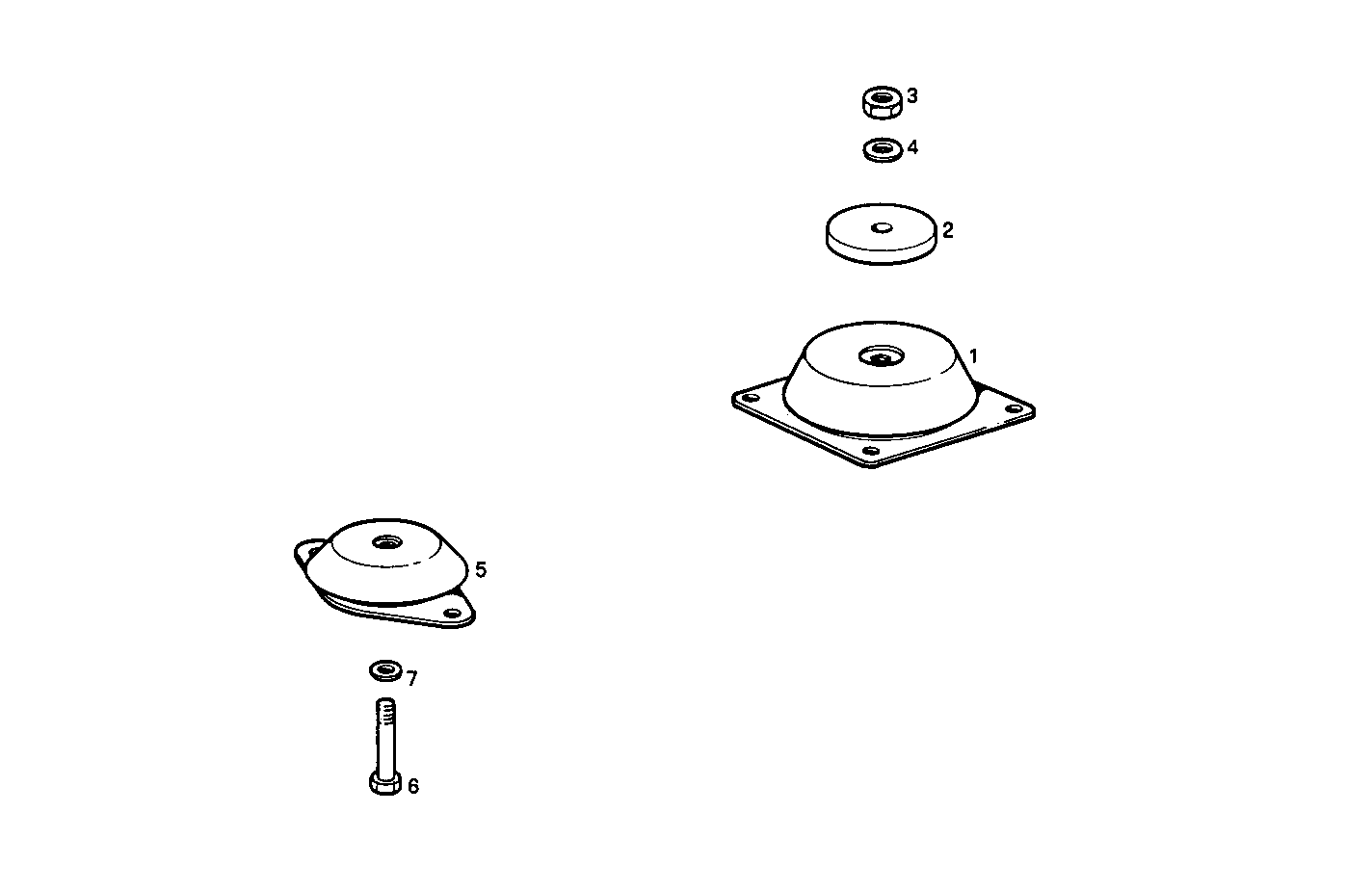

A04050016 ELASTIC PADS NOT ADJUSTABLE - (engine + marine gear) loose
Item | Part number | Description |
---|---|---|
1 | 8011110 | ENGINE SUSPENSION |
2 | 8011143 | SPACING BAR |
3 | 17039321 | NUT M20X2,5 |
4 | 17092774 | WASHER Ø20X38X4,6 MM |
5 | 8019580 | RUBBER PAD |
6 | 16614824 | SCREW M16X50 |
7 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
