8291SRM75.10

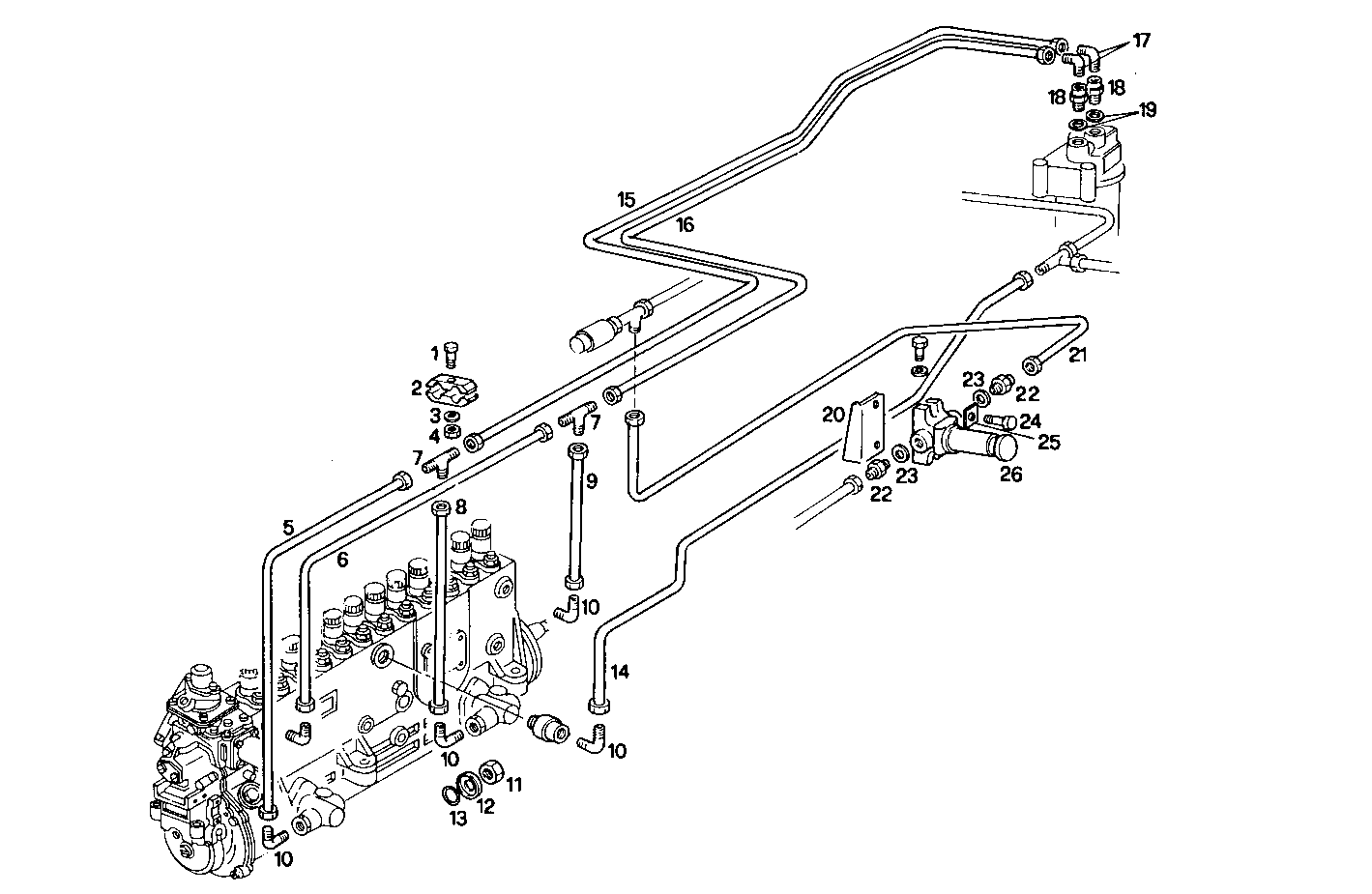

2030.046/02 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 16604024 HEXAGON BOLT M6X35 MM
2 8010505 CLAMP Ø16 MM
3 17088974 SPRING WASHER Ø6X18X1,4 MM
4 17037821 HEXAGON NUT M6X1
5 8010384 FUEL LINE
6 8010388 FUEL LINE
7 8011303 PIPE SOCKET
8 8010385 FUEL LINE
9 8010389 FUEL LINE
10 8006222 PIPE SOCKET [from 05-92]
11 16508711 NUT M14X1,5 [from 05-92]
12 8006339 CAP
13 17281581 O-RING Ø12,37X2,62 MM
14 8010390 FUEL LINE
15 8010386 FUEL LINE
16 8010387 FUEL LINE
17 16512111 PIPE SOCKET
18 8010452 PIPE SOCKET
19 10303460 SEAL GASKET Ø30x36x1,5 MM
20 8011455 RETAINER
21 8011301 FUEL LINE
22 16500211 THREADED UNION
23 4858608 SEAL GASKET dia.14x19,5x1,5
24 16603824 SCREW M6X25
25 11351379 PLATE
26 4797319 HAND PUMP ASSY
