8291SRM75.10

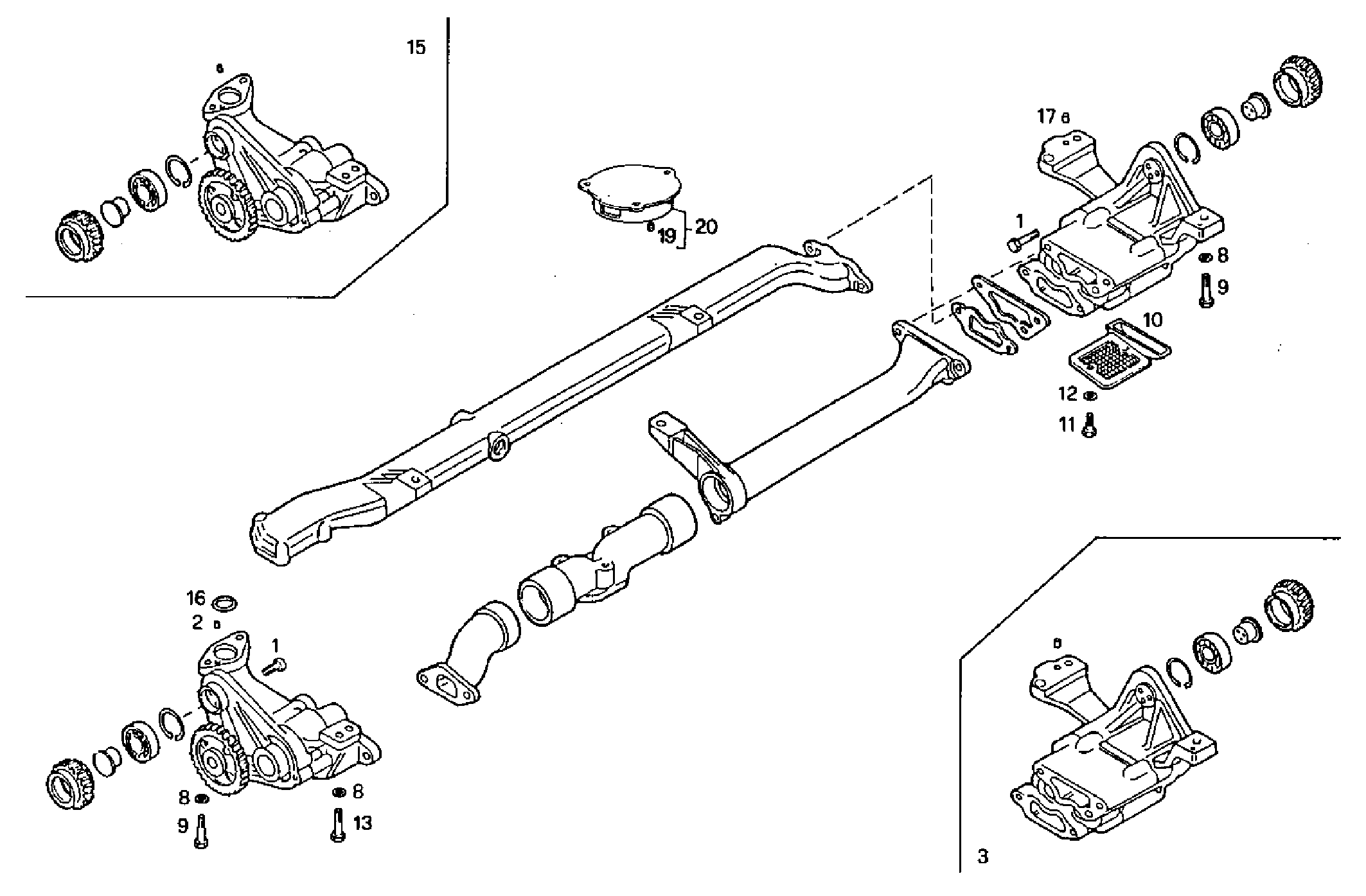

3000.015 OIL PUMP
Item | Part number | Description |
---|---|---|
1 | 14306524 | SCREW M8X30 MM |
2 | 10839510 | DOWEL PIN |
3 | 4832343 | LUBE OIL PUMP ASSY |
8 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
9 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
10 | 4782011 | SUCTION STRAINER |
11 | 4813689 | SCREW |
12 | 14496404 | WASHER |
13 | 15971624 | HEXAGON BOLT M10X1,25X90 MM |
15 | 4832342 | LUBE OIL PUMP ASSY PRIMARY |
16 | 14458531 | WASHER |
17 | 10336510 | DOWEL PIN |
18 | 16045424 | SCREW M8X110 MM |
19 | 13582171 | THREADED INSERT |
20 | 4862133 | SUCTION STRAINER ASSY |
