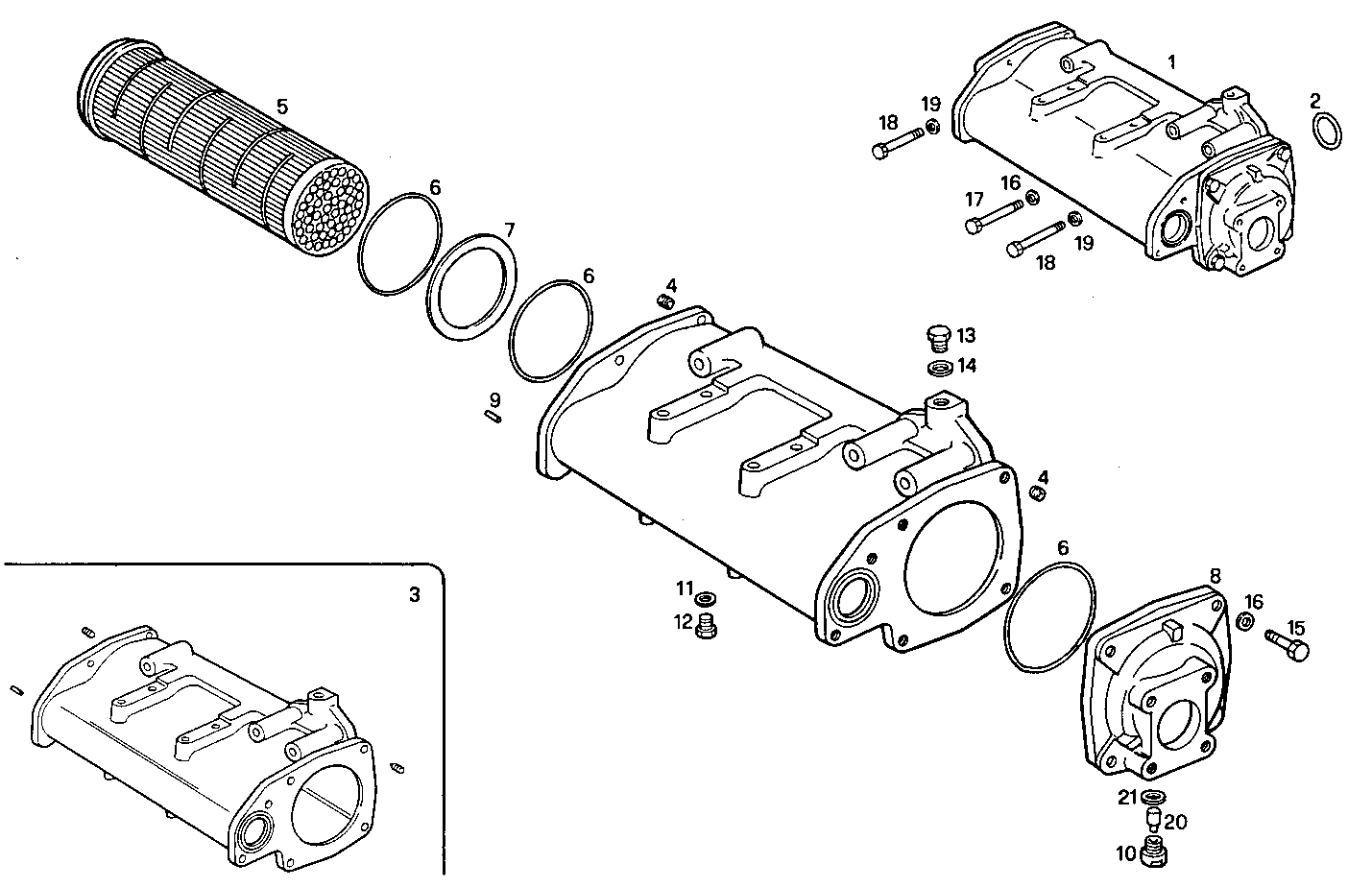

| Item |
Part number |
Description |
|
1 |
8012920 |
OIL/WATER HEAT EXCHANGER ASSY |
|
2 |
17283381 |
O-RING Ø40,94X2,62 MM |
|
3 |
8012922 |
HEAT EXANGER BODY |
|
4 |
17873271 |
THREADED INSERT M8 |
|
5 |
8009773 |
TUBE STACK |
|
6 |
8026108 |
O-RING Ø3,53X132X132,9 MM |
|
7 |
8006348 |
SPACING BAR |
|
8 |
8009516 |
HEAT EXCHANG.COVER |
|
9 |
17253570 |
PIN |
|
10 |
8101771 |
PLUG M28 |
|
11 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
12 |
16992440 |
THREADED PLUG M16X1,5 |
|
13 |
16992240 |
THREADED PLUG M12X1,5 |
|
14 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
15 |
16605924 |
SCREW M8X40 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
16045821 |
HEXAGON BOLT M8X130 MM |
|
18 |
16609224 |
HEXAGON BOLT M10X140 MM |
|
19 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
20 |
8101772 |
SACRIFICAL ANODE Ø20 MM |
|
21 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
