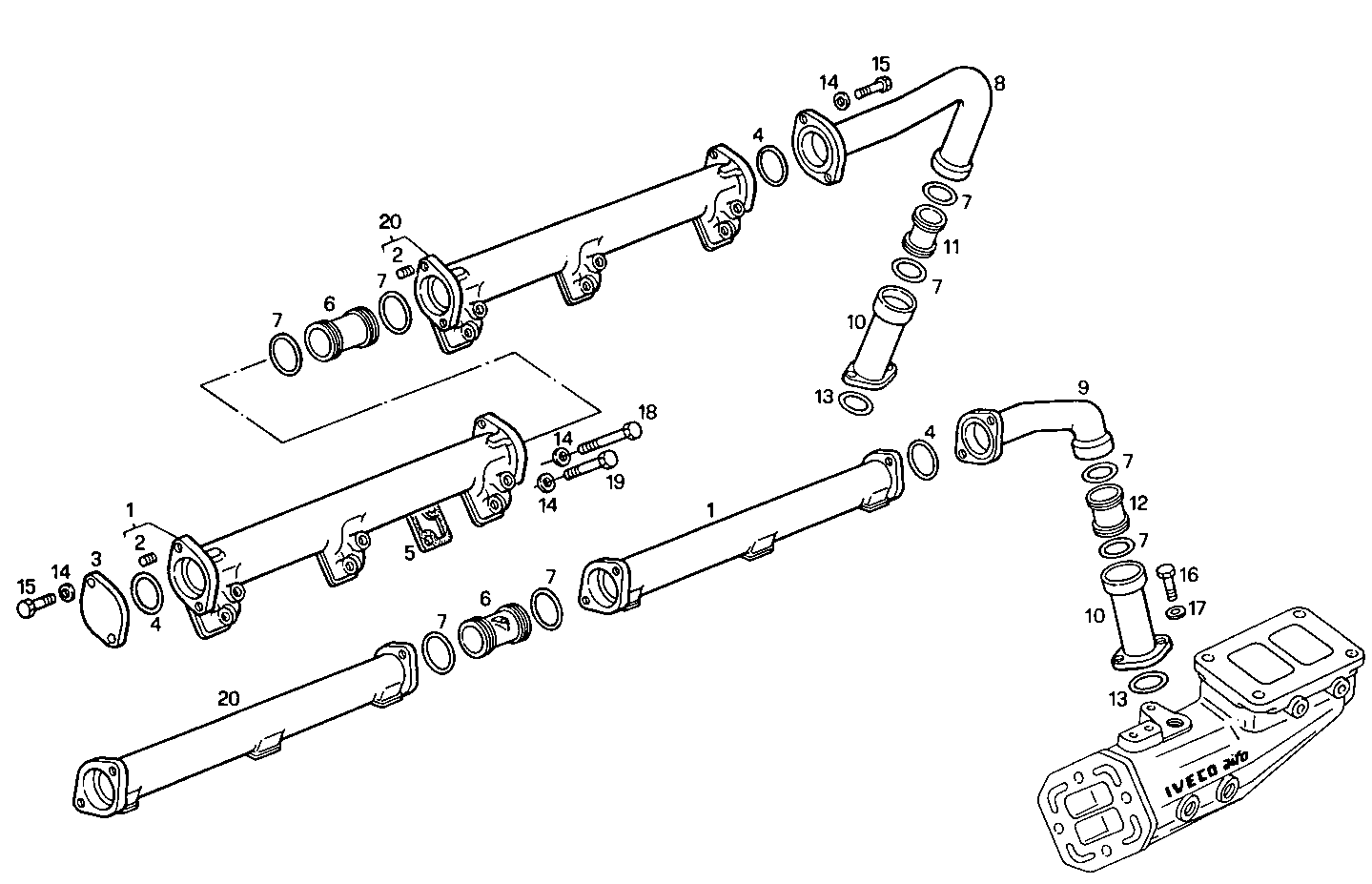

| Item |
Part number |
Description |
|
1 |
8008152 |
WATER PIPE ASSY |
|
2 |
17873271 |
THREADED INSERT M8 |
|
3 |
8007526 |
COVER |
|
4 |
17284981 |
O-RING Ø66,34 MM SP=2,62 MM |
|
5 |
98418857 |
FLAT ENGINE GASKET |
|
6 |
8007525 |
CONNECTION |
|
7 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
8 |
8006820 |
WATER PIPE |
|
9 |
8006819 |
WATER PIPE |
|
10 |
8010478 |
WATER PIPE |
|
11 |
8009637 |
WATER PIPE L=50 MM |
|
12 |
8112496 |
CONNECTION L=90 MM |
|
13 |
17290081 |
O-RING Ø56,74 MM SP=3,53 MM |
|
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
15214224 |
SCREW M8x1,25x85 |
|
19 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
20 |
8011273 |
WATER MANIFOLD |
