8291SRM75.10

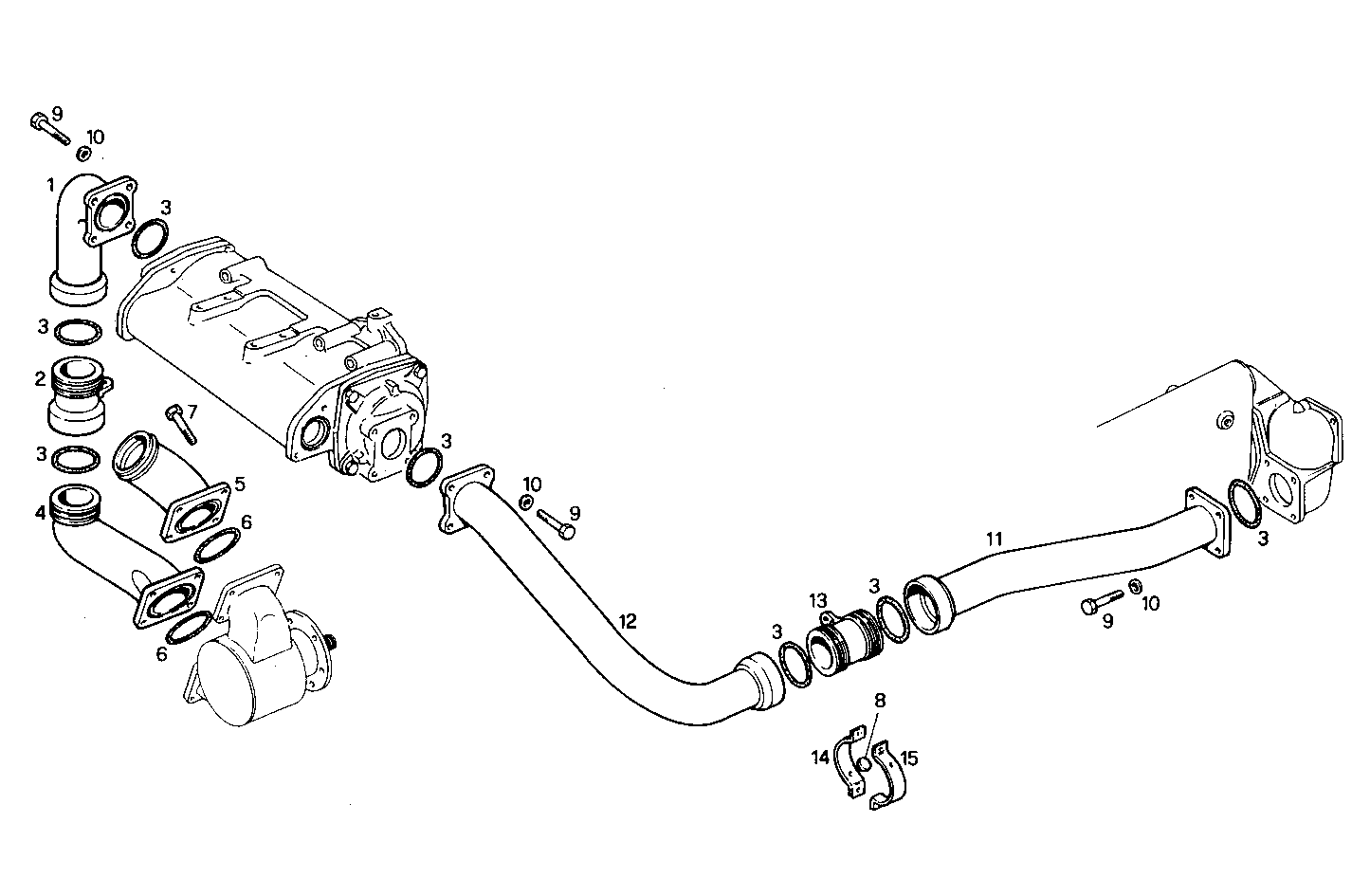

3390.023/01 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8010568 | WATER PIPE |
| 2 | 8010567 | SPACING BAR |
| 3 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 4 | 8010715 | WATER PIPE |
| 5 | 8010688 | WATER PIPE |
| 6 | 17290781 | O-RING Ø78,97X3,53 MM |
| 7 | 4932506 | SCREW |
| 8 | 1366290 | RUBBER LUG |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 8010458 | WATER PIPE |
| 12 | 8010438 | WATER PIPE |
| 13 | 8010462 | SPACING BAR |
| 14 | 8011429 | CLAMP |
| 15 | 8011430 | CLAMP |
