8291SRM75.11

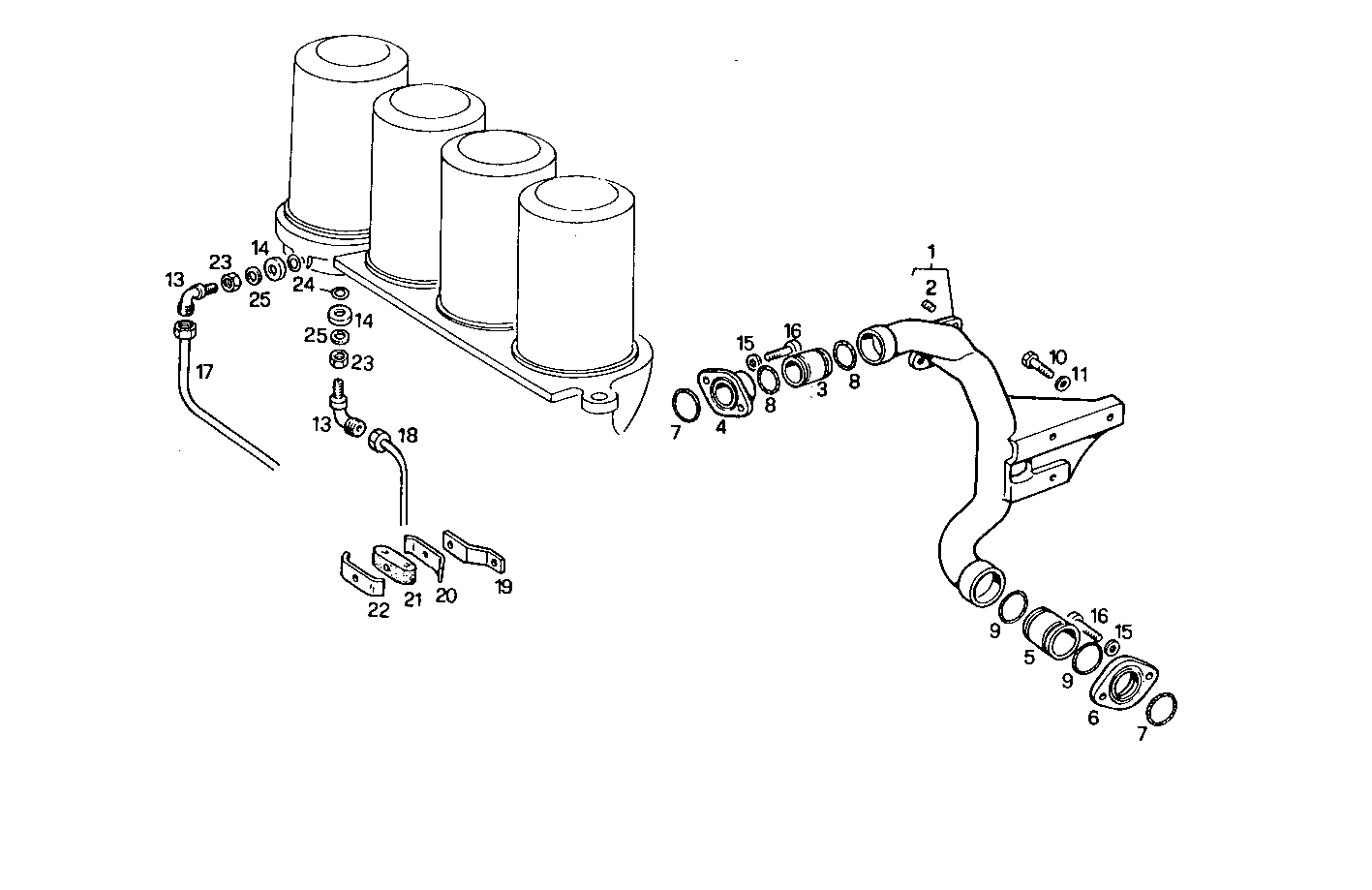

3010.119/02 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 8012808 OIL LINE ASSY
2 17873271 THREADED INSERT M8
3 8009898 RUBBER SLEEVE
4 4786965 FLANGE
5 8012825 SPACING BAR
6 8012828 FLANGE
7 17283781 O-RING Ø47,29X2,62 MM
8 17289681 O-RING Ø44 MM SP=3,53 MM
9 17284281 O-RING Ø55,24X2,62 MM
10 15970921 HEXAGON BOLT M10X1,25X35 MM
11 17095104 WASHER Ø10X21X2 MM
13 8006222 PIPE SOCKET [from 05-92]
14 8006339 CAP
15 17094914 WASHER 8x16
16 16605734 HEXAGON BOLT M8X30 MM
17 8016493 OIL LINE
18 8016434 OIL LINE
19 8008962 RETAINER
20 4864288 CLAMP
21 4871771 RUBBER LUG
22 4864289 CLAMP
23 16508711 NUT M14X1,5 [from 05-92]
24 17281581 O-RING Ø12,37X2,62 MM
25 4858608 SEAL GASKET dia.14x19,5x1,5
