8291SRM75.11

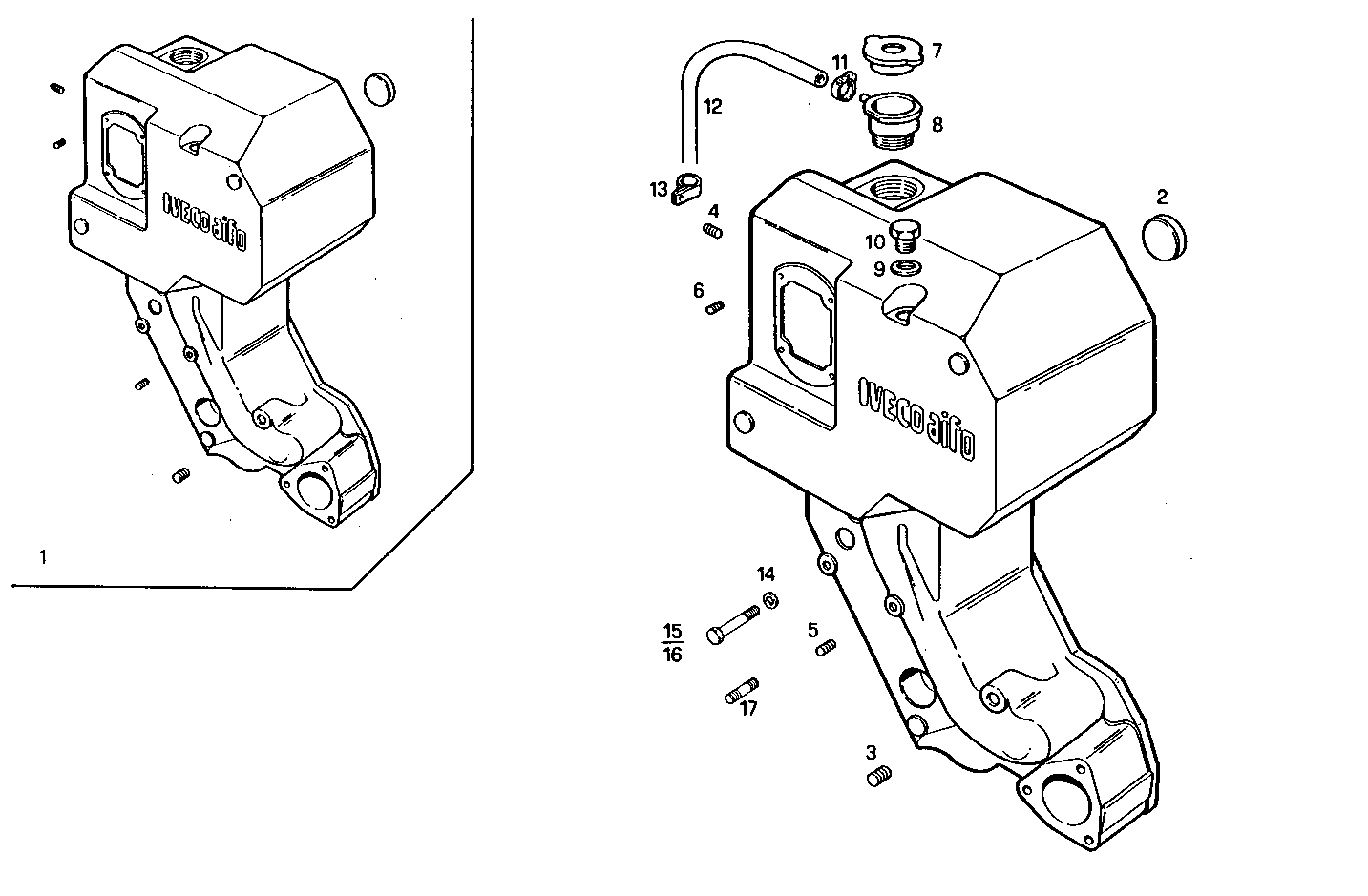

3290.009 EXPANSION TANK
Item | Part number | Description |
---|---|---|
1 | 8008942 | TANK ASSY |
2 | 16991170 | LOCK PLUG Ø36 MM |
3 | 17873571 | THREADED INSERT |
4 | 17873371 | THREADED INSERT M10X1,5 |
5 | 17873271 | THREADED INSERT M8 |
6 | 17873071 | THREADED INSERT |
7 | 4927808 | PLUG 0,5 BAR |
8 | 4934521 | PIPE SOCKET |
9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
10 | 16992440 | THREADED PLUG M16X1,5 |
11 | 18088192 | CLIP m10-16 |
12 | 17723081 | WATER HOSE Ø7X25 MM |
13 | 17314990 | FASTENING BRACKET |
14 | 17090174 | SPRING WASHER Ø10X20 MM |
15 | 16608224 | SCREW M10X1,5X55 MM |
16 | 16608621 | HEXAGON BOLT M10X80 MM (8.8) |
17 | 16746724 | STUD M8X25 MM |
